CRL-Blumcraft Oil Rubbed Bronze 150 Series Entrance Door Panic - 3/4" Glass - 15P340RB
CRL-Blumcraft 150 Series Doors and Sidelites are supplied fully glazed with 1/2", 5/8" or 3/4" (12, 16 or 19 mm) tempered glass in clear, tinted or low-iron. Rails are bonded to the glass, and can be prepped for a wide variety of door closer and pivot hardware. A bottom rail lock option is available, or the doors can come complete with any of our Egress Handles mounted on the door, ready-to-install in the opening.
Narrow Profile Rails Fully Glazed With 1/2", 5/8" or 3/4" (12, 16 or 19 mm) Tempered Glass
Six Standard Architectural Finishes
Custom Finishes Available
Available With Matching Fully Glazed Sidelites
Narrow Profile Rails Fully Glazed With 1/2", 5/8" or 3/4" (12, 16 or 19 mm) Tempered Glass
Six Standard Architectural Finishes
Custom Finishes Available
Available With Matching Fully Glazed Sidelites
Numro d'article: 15P340RB
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 394H
Couleur: Bronze frott l'huile
Expdier par: Non expdi par UPS - Uniquement par transporteur
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 394H
Couleur: Bronze frott l'huile
Expdier par: Non expdi par UPS - Uniquement par transporteur
NUMRO D'ARTICLE DESCRIPTION COULEUR
15P340RB CRL-Blumcraft Oil Rubbed Bronze 150 Series Entrance Door Panic - 3/4" Glass
15P34BS CRL-Blumcraft Brushed Stainless 150 Series Entrance Door Panic - 3/4" Glass
15P340RB CRL-Blumcraft Oil Rubbed Bronze 150 Series Entrance Door Panic - 3/4" Glass
15P34BS CRL-Blumcraft Brushed Stainless 150 Series Entrance Door Panic - 3/4" Glass

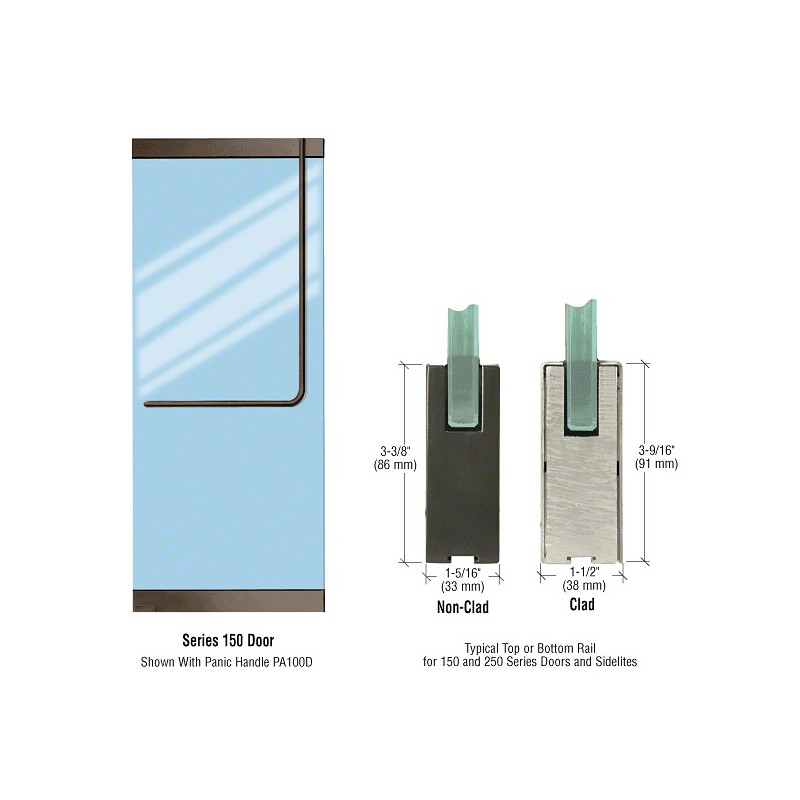

150 Series Doors have a solid aluminum narrow profile rail design which can be used top or bottom. Available in six standard finishes: Satin anodized, black bronze anodized, black powder coated, brushed and polished stainless steel, and polished brass. Custom finishes are available on special order. Maximum door size is 42" (1.07 m) wide by 108" (2.74 m) tall.
Adjustable pivot blocks are installed in the rails to suit the door closer hardware selected for the project. When overhead door closers are specified, the 150 Series Doors come with an adjustable pivot arm in the top rail and a heavy-duty bottom pivot designed to work with the narrow profile rails. Similarly, when floor mounted door closers are specified, the Doors come with adjustable heavy-duty top and bottom inserts to accept the floor mounted door closer and top pivot hardware.
Fully glazed sidelites are available to match the 150 Series Doors. They have rails made from solid aluminum, anodized or clad, just like the doors, creating a uniform look throughout the opening. Contact our Technical Sales Department for assistance.
Adjustable pivot blocks are installed in the rails to suit the door closer hardware selected for the project. When overhead door closers are specified, the 150 Series Doors come with an adjustable pivot arm in the top rail and a heavy-duty bottom pivot designed to work with the narrow profile rails. Similarly, when floor mounted door closers are specified, the Doors come with adjustable heavy-duty top and bottom inserts to accept the floor mounted door closer and top pivot hardware.
Fully glazed sidelites are available to match the 150 Series Doors. They have rails made from solid aluminum, anodized or clad, just like the doors, creating a uniform look throughout the opening. Contact our Technical Sales Department for assistance.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
