CRL Dry Glazed Frameless Glass 3'-0" P-Style Satin Anodized Single Door Complete Entrance Kit - without Lock - P4SA12SE
CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in Door Only or Complete Entrance kits. All you supply is the 1/2" (12 mm) tempered glass.
Door Only or Complete Entrance Kits Available
3'-0" Single Door or 6'-0" Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes Net Door Width is 35-3/4" (908 mm)
Door Only or Complete Entrance Kits Available
3'-0" Single Door or 6'-0" Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes Net Door Width is 35-3/4" (908 mm)
Numro d'article: P4SA12SE
galement disponible dans ces trois catalogues:
CRL14D Door and Entrance Catalog, PAGE 121D
CRL63A Architectural Hardware Master, PAGE 401H
Couleur: Satin anodis
Expdier par: Expdition UPS
galement disponible dans ces trois catalogues:
CRL14D Door and Entrance Catalog, PAGE 121D
CRL63A Architectural Hardware Master, PAGE 401H
Couleur: Satin anodis
Expdier par: Expdition UPS
NUMRO D'ARTICLE DESCRIPTION COULEUR
P4BS12SE CRL Dry Glazed Frameless Glass 3'-0" P-Style Brushed Stainless Single Door Complete Entrance Kit - without Lock
P4DU12SE CRL Black Bronze Dry Glazed Frameless Glass 3'-0" P-Style Single Door Complete Entrance Kit - without Lock
P4PS12SE CRL Dry Glazed Frameless Glass 3'-0" P-Style Polished Stainless Single Door Complete Entrance Kit - without Lock
P4SA12SE CRL Dry Glazed Frameless Glass 3'-0" P-Style Satin Anodized Single Door Complete Entrance Kit - without Lock
P4BS12SE CRL Dry Glazed Frameless Glass 3'-0" P-Style Brushed Stainless Single Door Complete Entrance Kit - without Lock
P4DU12SE CRL Black Bronze Dry Glazed Frameless Glass 3'-0" P-Style Single Door Complete Entrance Kit - without Lock
P4PS12SE CRL Dry Glazed Frameless Glass 3'-0" P-Style Polished Stainless Single Door Complete Entrance Kit - without Lock
P4SA12SE CRL Dry Glazed Frameless Glass 3'-0" P-Style Satin Anodized Single Door Complete Entrance Kit - without Lock

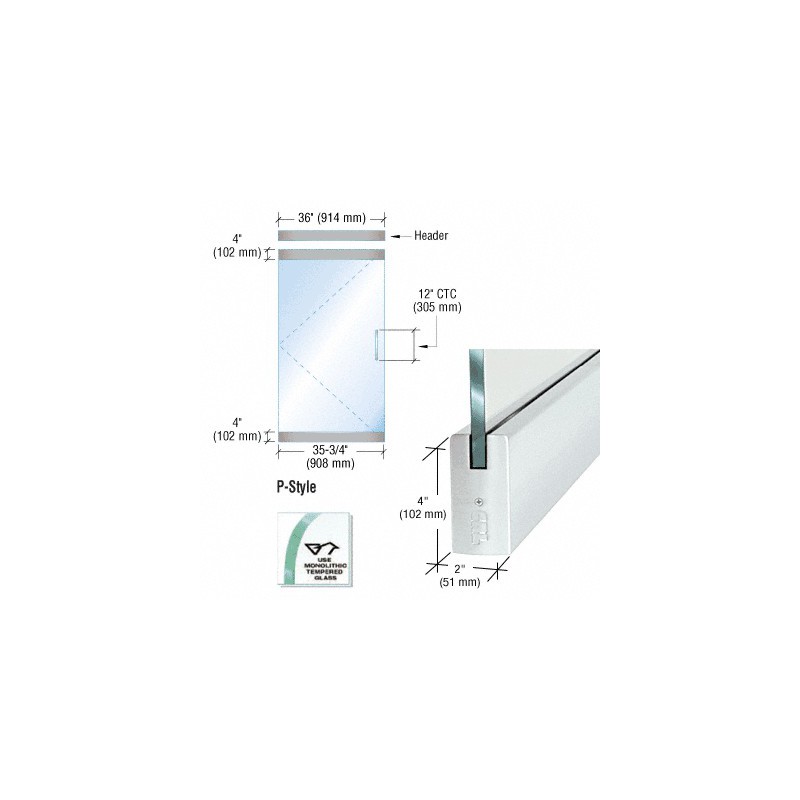

All Kits utilize our patented Dry Glaze Rails, and are available in 'P' or 'BP' Style Door Types in brushed or polished stainless steel, clear or black/bronze anodized finishes. They all work with 1/2" (12 mm) clear fully tempered glass, and require only two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).
Door Only Kits include Rails, Jackson Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Without Lock Kits Include:
Two DR4S Series Dry Glaze Rails
One Model 20104M20 Jackson Overhead Door Closer
One CRL8010AS Closer Arm
One CRL8010DP Bottom Pivot
One CRL8010FS Mounting Clip
One Model CM12X12 Pull Handle
One Model DCH4 36" Header
Door Only Kits include Rails, Jackson Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Without Lock Kits Include:
Two DR4S Series Dry Glaze Rails
One Model 20104M20 Jackson Overhead Door Closer
One CRL8010AS Closer Arm
One CRL8010DP Bottom Pivot
One CRL8010FS Mounting Clip
One Model CM12X12 Pull Handle
One Model DCH4 36" Header
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
