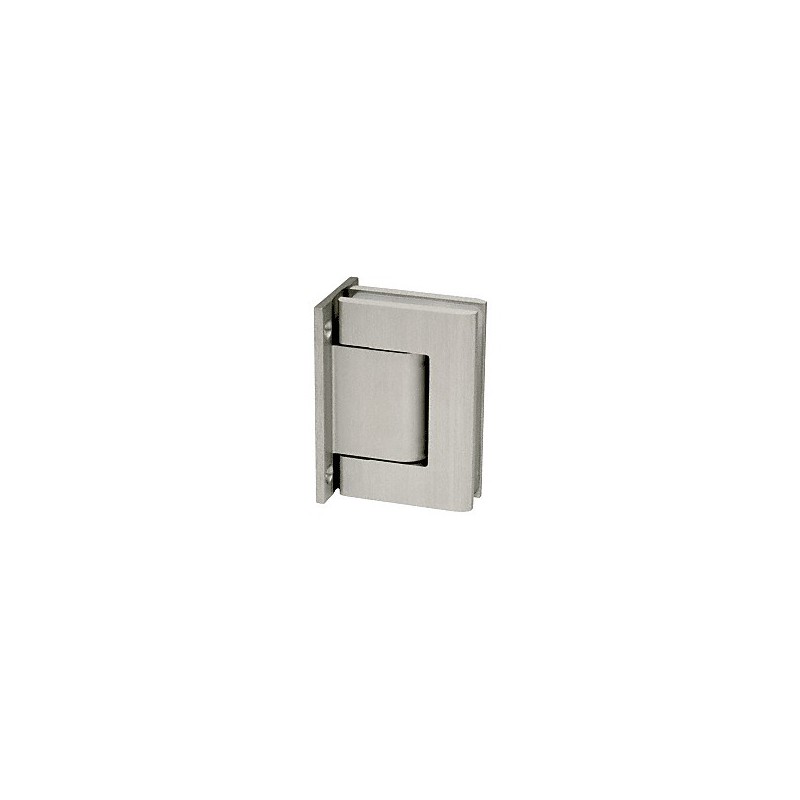

CRL Biloba, Charnière mur-verre à platine large, anodisé satiné - NHO - 31M8210SA
This CRL Full Back Plate Wall Mount Hinge swings in and out a full 90º, with stop at 0º. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg).
For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
Recommended for Use as Interior Entry Doors to Bathroom/Shower Area (Not for Shower Doors)
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Adjustable Closing Speed
For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
Recommended for Use as Interior Entry Doors to Bathroom/Shower Area (Not for Shower Doors)
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Adjustable Closing Speed
Numro d'article: 31M8210SA
galement disponible dans ces trois catalogues:
CRL14D Door and Entrance Catalog, PAGE 155D
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 177J
CRL63A Architectural Hardware Master, PAGE 356H
CRL93A Architectural Hardware, PAGE CH144
Couleur: Satin anodis
Expdier par: Expdition UPS
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
CRL14D Door and Entrance Catalog, PAGE 155D
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 177J
CRL63A Architectural Hardware Master, PAGE 356H
CRL93A Architectural Hardware, PAGE CH144
Couleur: Satin anodis
Expdier par: Expdition UPS
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
31M8210SA CRL Biloba, Charnire mur-verre platine large, anodis satin - NHO
31M8210SA CRL Biloba, Charnire mur-verre platine large, anodis satin - NHO
The Vernon Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors) leading into the bathroom area, Vernon allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Vernon Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. The Vernon Hinge has an internal stop on the valve adjustment screw stopping you from going too far, so you can open completely (4-5 turns) until you reach the speed required. The Vernon works properly between 5 to 104 degrees without problems. The viscosity of the oil could change, hence you may need to adjust the speed to compensate. And Vernon is ambidextrous, giving you even more design freedom.
The Vernon Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Vernon has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door.
Properly mounted, two Vernon Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. The Vernon Hinge has an internal stop on the valve adjustment screw stopping you from going too far, so you can open completely (4-5 turns) until you reach the speed required. The Vernon works properly between 5 to 104 degrees without problems. The viscosity of the oil could change, hence you may need to adjust the speed to compensate. And Vernon is ambidextrous, giving you even more design freedom.
The Vernon Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Vernon has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door.
