CRL Pinnacle, Charnière murale réglable à platine excentrée, chrome - P1N344CH

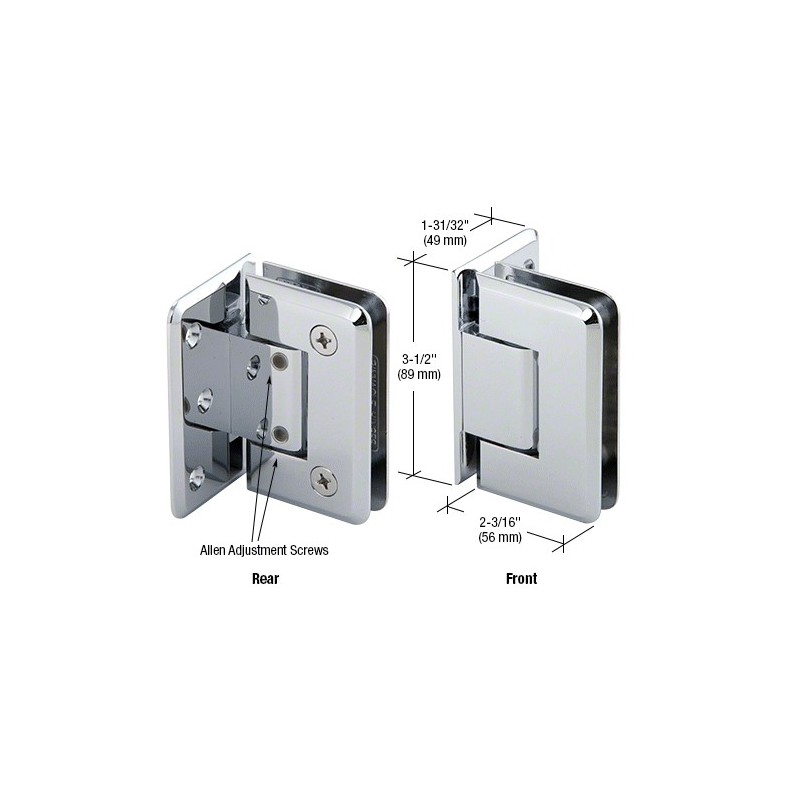

CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Adjustable to Any Angle Up to 90 Degree Without Removing Door
Available in Several Beautiful Finishes
Three Year Warranty
Adjustable Wall Mount Offset Back Plate
Use Monolithic Tempered Glass
Adjustable to Any Angle Up to 90 Degree Without Removing Door
Available in Several Beautiful Finishes
Three Year Warranty
Adjustable Wall Mount Offset Back Plate
Use Monolithic Tempered Glass
Numro d'article: P1N344CH
galement disponible dans ces trois catalogues:
SD16 Frameless Shower Door Hardware 2015, PAGE 117S
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 151J
CRL93A Shower Door, PAGE SD018
Couleur: Chrome poli
Expdier par: Expdition UPS
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
SD16 Frameless Shower Door Hardware 2015, PAGE 117S
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 151J
CRL93A Shower Door, PAGE SD018
Couleur: Chrome poli
Expdier par: Expdition UPS
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
P1N344CH CRL Pinnacle, Charnire murale rglable platine excentre, chrome
P1N344BR CRL Polished Brass Offset Wall Mount Adjustable Pinnacle Hinge
P1N3440RB CRL Pinnacle, Charnire murale rglable platine excentre, bronze frott l'huile
P1N344BN CRL Brushed Nickel Offset Wall Mount Adjustable Pinnacle Hinge
P1N344SC CRL Satin Chrome Offset Wall Mount Adjustable Pinnacle Hinge
P1N344CH CRL Pinnacle, Charnire murale rglable platine excentre, chrome
P1N344BR CRL Polished Brass Offset Wall Mount Adjustable Pinnacle Hinge
P1N3440RB CRL Pinnacle, Charnire murale rglable platine excentre, bronze frott l'huile
P1N344BN CRL Brushed Nickel Offset Wall Mount Adjustable Pinnacle Hinge
P1N344SC CRL Satin Chrome Offset Wall Mount Adjustable Pinnacle Hinge
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
