CRL-Blumcraft Brushed Stainless 1200ED Series Door - 1/2" Glass - 12F12BS
CRL-Blumcraft 1200 Series Doors can be made up to 12' (3.6 m) tall and have no top or bottom rails. Instead they have a vertical Pivot Tube that runs the height of the door, achieving what appears to be truly 'all-glass' door.
Patented Wedge-Lock Glass Securing System
Doors Up to 12 Feet (3.66 m) Tall
No Top or Bottom Rails
Fully Glazed with 1/2" (12 mm) Tempered Glass
Available in Six Standard Architectural Finishes
Patented Wedge-Lock Glass Securing System
Doors Up to 12 Feet (3.66 m) Tall
No Top or Bottom Rails
Fully Glazed with 1/2" (12 mm) Tempered Glass
Available in Six Standard Architectural Finishes
Numro d'article: 12F12BS
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 396H
Couleur: Acier inoxydable bross
Expdier par: Non expdi par UPS - Uniquement par transporteur
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 396H
Couleur: Acier inoxydable bross
Expdier par: Non expdi par UPS - Uniquement par transporteur
NUMRO D'ARTICLE DESCRIPTION COULEUR
12F12BS CRL-Blumcraft Brushed Stainless 1200ED Series Door - 1/2" Glass
12F12BS CRL-Blumcraft Brushed Stainless 1200ED Series Door - 1/2" Glass

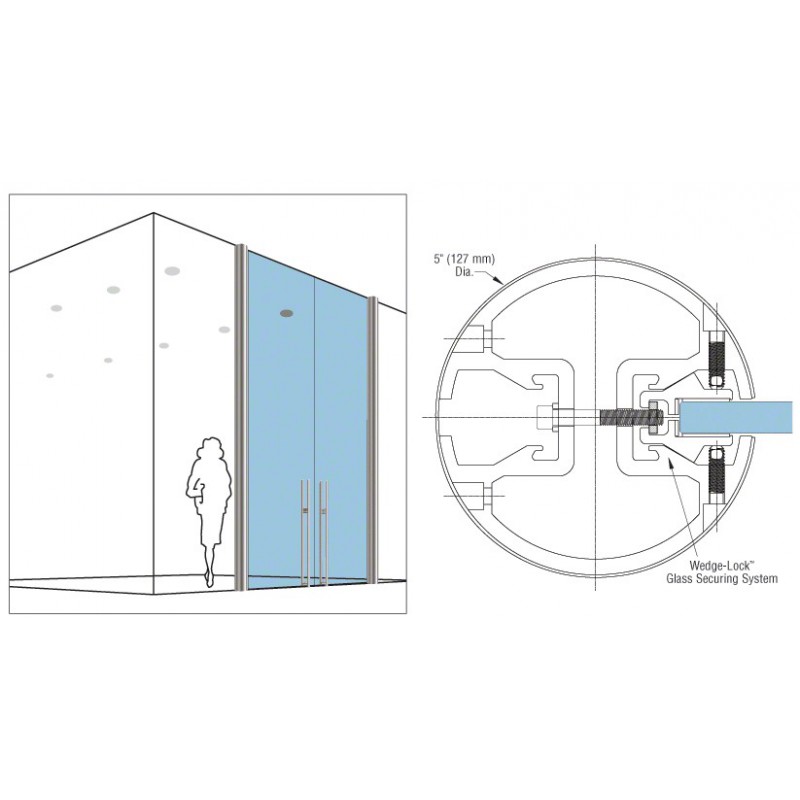

1200 Series Doors are supplied fully glazed with 1/2" (12 mm) tempered glass in clear, tinted or low-iron. We have incorporated our patented Wedge-Lock Glass Securing System into a 5" (127 mm) diameter vertical Pivot Tube, ensuring a non-slip environment for the life of the door. The Pivot Tube is clad in one of six architectural finishes: satin anodized, black bronze anodized, black powder coat, brushed and polished stainless steel, and polished brass. Custom finishes are available on special order.
With no rails top and bottom the entire weight of the door is transferred through the Pivot Tube to a specially engineered, heavy-duty, load-bearing cement case, independent of the floor mounted door closer. 1200 Series Doors utilize a heavy-duty walking beam pivot at the top of the Pivot Tube that can be incorporated into a variety of different headers to create a desired look. Floor mounted door closer functionality is preserved in this uniquely different entrance system.
1200 Series Doors can be equipped with any of our Egress Handles, Locking Ladder Pulls, or Patch Locks to offer a secure opening. All hardware comes mounted to the door and is ready for installation. For additional information contact CRL Technical Sales Department.
With no rails top and bottom the entire weight of the door is transferred through the Pivot Tube to a specially engineered, heavy-duty, load-bearing cement case, independent of the floor mounted door closer. 1200 Series Doors utilize a heavy-duty walking beam pivot at the top of the Pivot Tube that can be incorporated into a variety of different headers to create a desired look. Floor mounted door closer functionality is preserved in this uniquely different entrance system.
1200 Series Doors can be equipped with any of our Egress Handles, Locking Ladder Pulls, or Patch Locks to offer a secure opening. All hardware comes mounted to the door and is ready for installation. For additional information contact CRL Technical Sales Department.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
