CRL-Blumcraft Dark Bronze 1301-CM Display Case Double Door and Sidelite With Mounting Bars - 3/8" Laminated Glass - 13CDL38DU

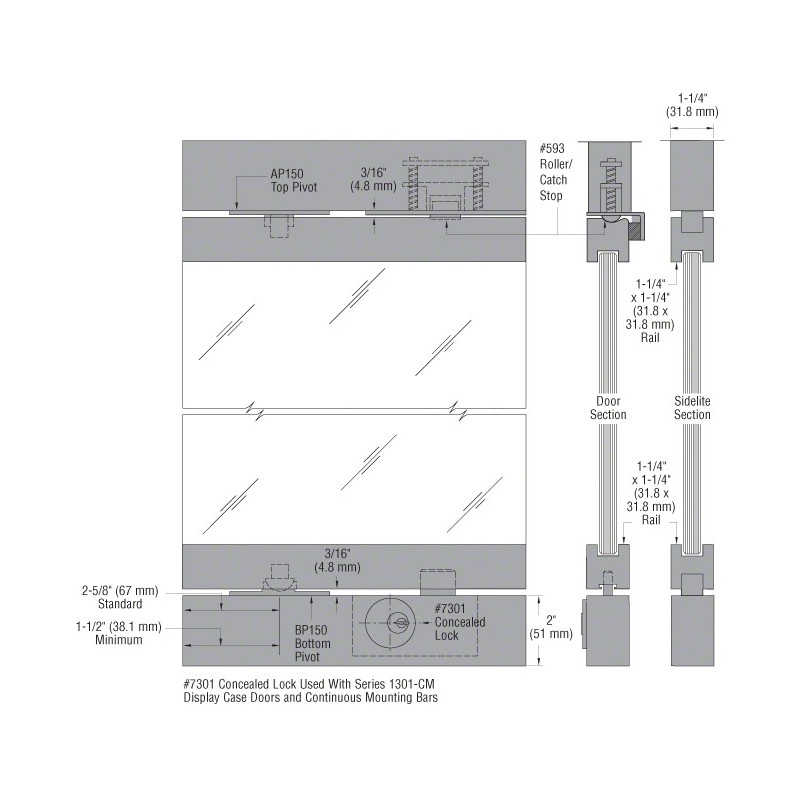

CRL-Blumcraft 1301-CM Series Display Case Doors and Sidelites are supplied fully glazed, and have Continuous Mounting Bars top and bottom to conceal the pivots and locks. The mounting bars are installed into display cases provided by others, and then the doors mount onto the bars. This eliminates the need for special prepping and mortising for the pivots and locks into the display case.
Concealed Pivots and Lock for Added Security
Accepts Standard Mortise Cylinder
Numro d'article: 13CDL38DU
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 393H
Couleur: Bronze fonc
Expdier par: Non expdi par UPS - Uniquement par transporteur
NUMRO D'ARTICLE DESCRIPTION COULEUR
13CDL38DU CRL-Blumcraft Dark Bronze 1301-CM Display Case Double Door and Sidelite With Mounting Bars - 3/8" Laminated Glass
13CDL38SA CRL-Blumcraft Satin Anodized 1301-CM Display Case Double Door and Sidelite with Mounting Bars - 3/8" Laminated Glass
13CDT38BS CRL-Blumcraft Brushed Stainless 1301-CM Display Case Double Door and Sidelite with Mounting Bars - 3/8" Tempered Glass
13CDT38DU CRL-Blumcraft Dark Bronze 1301-CM Display Case Double Door and Sidelite with Mounting Bars - 3/8" Tempered Glass
13CDT38SA CRL-Blumcraft Satin Anodized 1301-CM Display Case Double Door and Sidelite with Mounting Bars - 3/8" Tempered Glass
The surface of the door rails are kept clear by moving the lock and mortise cylinder into the Continuous Mounting Bar. Locks can be located at top, bottom or both for added security. 1301 Series Display Case Doors and Sidelites are available with 3/8", 1/2", 5/8" or 3/4" (10, 12, 16 or 19 mm) glass, either tempered or laminated, in clear, tinted, low-iron, anti-reflective, or specialty glass upon request. For additional information contact CRL Technical Sales Department.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
