CRL-Blumcraft Oil Rubbed Bronze Sidelite (S/L) 3/4" Tall Top Rail - 3/4" Glass - 13SF340RB
CRL-Blumcraft 1301 Series Entrance Doors are the original. Often imitated but never matched, this system provides the most glass with the least metal of any entrance door system in the industry.
More Glass, Less Metal!
Fully Glazed With 1/2", 5/8" or 3/4" (12, 16 or 19 mm) Tempered Glass
Ready-to-Install, No Assembly Required
Solid Stainless Steel or Bronze Rail Construction
Rails as Slim as 3/4" x 3/4" (19 x 19 mm)
Complete with Egress Handle if Required
More Glass, Less Metal!
Fully Glazed With 1/2", 5/8" or 3/4" (12, 16 or 19 mm) Tempered Glass
Ready-to-Install, No Assembly Required
Solid Stainless Steel or Bronze Rail Construction
Rails as Slim as 3/4" x 3/4" (19 x 19 mm)
Complete with Egress Handle if Required
Numro d'article: 13SF340RB
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 390H
Couleur: Bronze frott l'huile
Expdier par: Non expdi par UPS - Uniquement par transporteur
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 390H
Couleur: Bronze frott l'huile
Expdier par: Non expdi par UPS - Uniquement par transporteur
NUMRO D'ARTICLE DESCRIPTION COULEUR
13SE34BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 1-1/4" Tall Top Rail - 3/4" Glass
13SF340RB CRL-Blumcraft Oil Rubbed Bronze Sidelite (S/L) 3/4" Tall Top Rail - 3/4" Glass
13SFL34BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 3/4" Tall Top Rail Lift and Drop - 3/4" Glass
13SH34BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 1" Tall Top Rail - 3/4" Glass
13SM12BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 2-1/4" Tall Top Rail - 1/2" Glass
13SM340RB CRL-Blumcraft Oil Rubbed Bronze Sidelite (S/L) 2-1/4" Tall Top Rail - 3/4" Glass
13SE34BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 1-1/4" Tall Top Rail - 3/4" Glass
13SF340RB CRL-Blumcraft Oil Rubbed Bronze Sidelite (S/L) 3/4" Tall Top Rail - 3/4" Glass
13SFL34BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 3/4" Tall Top Rail Lift and Drop - 3/4" Glass
13SH34BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 1" Tall Top Rail - 3/4" Glass
13SM12BS CRL-Blumcraft Brushed Stainless Sidelite (S/L) 2-1/4" Tall Top Rail - 1/2" Glass
13SM340RB CRL-Blumcraft Oil Rubbed Bronze Sidelite (S/L) 2-1/4" Tall Top Rail - 3/4" Glass
Made from solid stainless steel or bronze and finished in either brushed or mirror finishes, as well as oil rubbed bronze. Top Rail sizes do vary based on types of hardware used on the doors. Consult Tech Sales for more information on your particular application.
A standard 1301 Series System includes our C7500 Series Head Channel with Adjustable Top Pivot and customized Floor Closer, providing the installer with ample adjustment opportunities. Common 4", 4-1/2", and 6" (102, 114, and 152 mm) Headers are also available to meet design requirements.
When job conditions do not allow for a floor mounted door closer, the 1301 Series Entrance Door can be configured to work with an overhead concealed door closer. A custom 1" (25 mm) high Top Rail with Sideload Adaptor and specially designed Bottom Pivot make this application clean and simple, while maintaining the "more glass, less metal" theme.

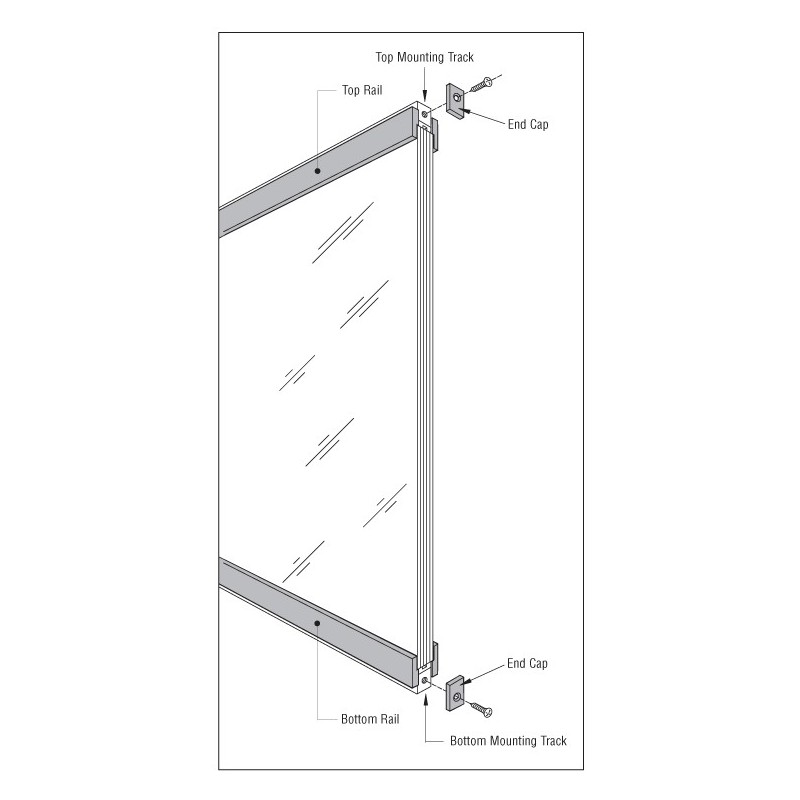

Fully glazed sidelites are also available with matching top and bottom rails. For those installations that require field glazing of the fixed panels we offer Wet Glaze Channels.
A standard 1301 Series System includes our C7500 Series Head Channel with Adjustable Top Pivot and customized Floor Closer, providing the installer with ample adjustment opportunities. Common 4", 4-1/2", and 6" (102, 114, and 152 mm) Headers are also available to meet design requirements.
When job conditions do not allow for a floor mounted door closer, the 1301 Series Entrance Door can be configured to work with an overhead concealed door closer. A custom 1" (25 mm) high Top Rail with Sideload Adaptor and specially designed Bottom Pivot make this application clean and simple, while maintaining the "more glass, less metal" theme.
Fully glazed sidelites are also available with matching top and bottom rails. For those installations that require field glazing of the fixed panels we offer Wet Glaze Channels.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
