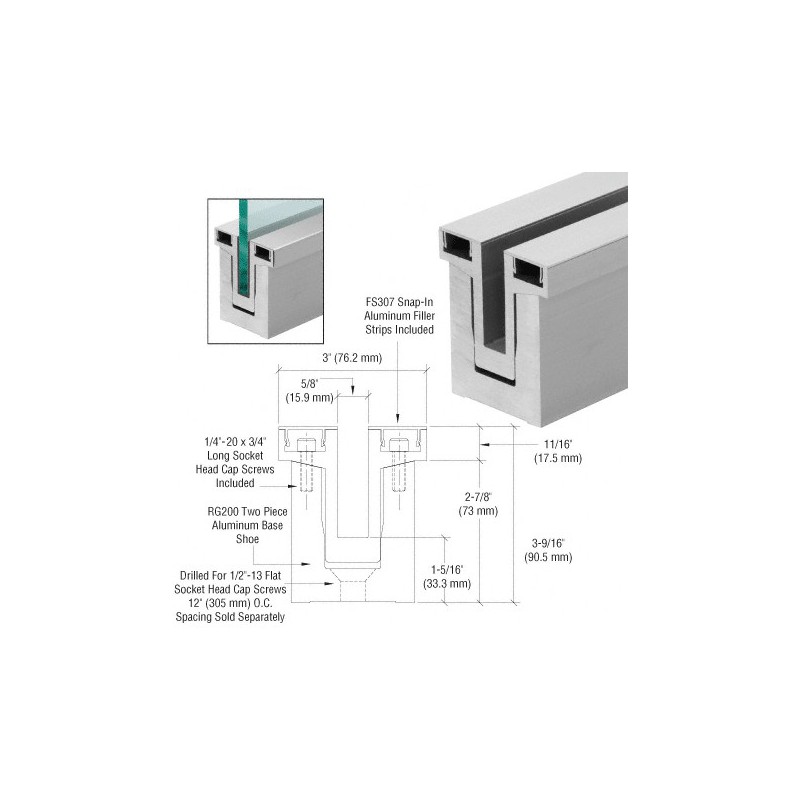

CRL-Blumcraft RG200 Series Mill Clear Anodized Two Piece Base Shoe - RG200MCA
CRL-Blumcraft's RG200 Series Two Piece Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 1/2" (12 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL-Blumcraft's Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
For 1/2" (12 mm) Monolithic Tempered Glass
Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Permits Easy Glass Panel Replacement by Means of Bolts
Wet Glazed System Only
Railglass Factory Controlled Bonding of Glass is Also Available
6063 Alloy, T52 Temper in Three Finishes
For 1/2" (12 mm) Monolithic Tempered Glass
Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Permits Easy Glass Panel Replacement by Means of Bolts
Wet Glazed System Only
Railglass Factory Controlled Bonding of Glass is Also Available
6063 Alloy, T52 Temper in Three Finishes
RG200MCA has been superseded by Catalog Number: RG200SA. To view the replacement item, Click here
NUMRO D'ARTICLE DESCRIPTION COULEUR
RG200DU CRL-Blumcraft RG200 Series Dark Bronze Anodized Two Piece Base Shoe
RG200MCA CRL-Blumcraft RG200 Series Mill Clear Anodized Two Piece Base Shoe
RG200SA CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe
RG200SAPK CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe - 6" Sample
RG200DU CRL-Blumcraft RG200 Series Dark Bronze Anodized Two Piece Base Shoe
RG200MCA CRL-Blumcraft RG200 Series Mill Clear Anodized Two Piece Base Shoe
RG200SA CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe
RG200SAPK CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe - 6" Sample
Typical Mountings for 1/2" (12 mm) Glass, Steel Sub-Structures by Others.
GLASS SPECIFICATIONS: 1/2" (12 mm) Thick Glass Using Wet Glaze System.
TEMPERED GLASS: Shall be 1/2" (12 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
INSTALLATION NOTE: The RG200 base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 1/2"-13 Flat Socket Head Cap Screws. Customer to drill and tap thru 1/2" (12 mm) thick (minimum) continuous steel plate using RG200 base as a template for hole location.
SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
GLASS SPECIFICATIONS: 1/2" (12 mm) Thick Glass Using Wet Glaze System.
TEMPERED GLASS: Shall be 1/2" (12 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
INSTALLATION NOTE: The RG200 base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 1/2"-13 Flat Socket Head Cap Screws. Customer to drill and tap thru 1/2" (12 mm) thick (minimum) continuous steel plate using RG200 base as a template for hole location.
SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
