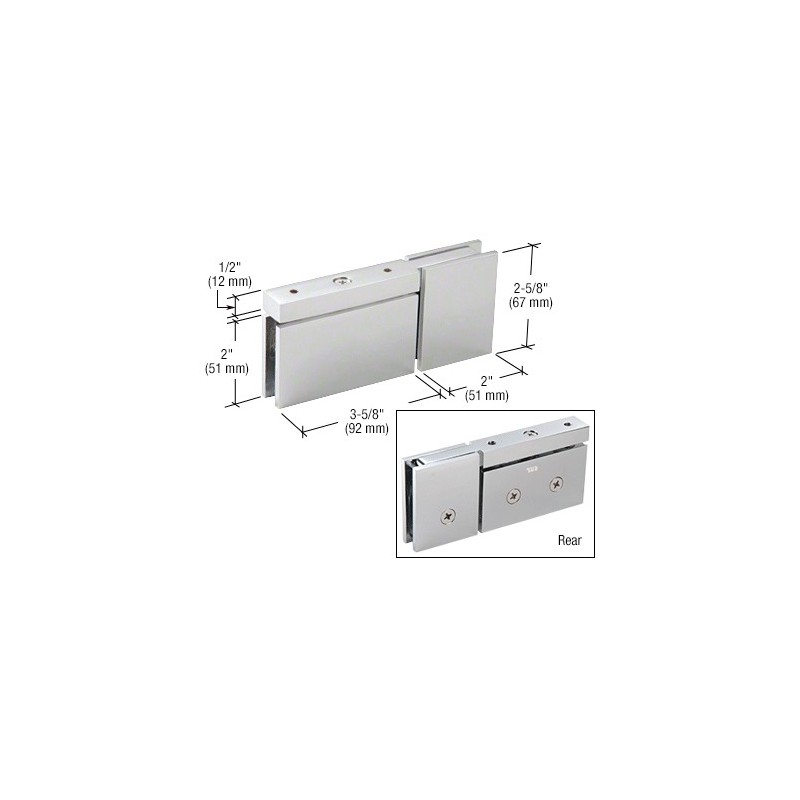

CRL Satin Chrome Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp - CAR07SC
CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5 Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.
Numro d'article: CAR07SC
galement disponible dans ces trois catalogues:
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 129J
SD16 Frameless Shower Door Hardware 2015, PAGE 136S
Couleur: Chrome satin
Expdier par: Expdition UPS
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 129J
SD16 Frameless Shower Door Hardware 2015, PAGE 136S
Couleur: Chrome satin
Expdier par: Expdition UPS
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
CAR07CH CRL Cardiff, Charnire pivot avec pince en U intgre montage suprieur ou infrieur, Chrome
CAR070RB CRL Cardiff, Charnire pivot avec pince en U intgre montage suprieur ou infrieur, bronze frott l'huile
CAR07BBRZ CRL Brushed Bronze Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07BN CRL Cardiff, Charnire pivot avec pince en U intgre montage suprieur ou infrieur, nickel bross
CAR07PN CRL Polished Nickel Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07CH CRL Cardiff, Charnire pivot avec pince en U intgre montage suprieur ou infrieur, Chrome
CAR070RB CRL Cardiff, Charnire pivot avec pince en U intgre montage suprieur ou infrieur, bronze frott l'huile
CAR07BBRZ CRL Brushed Bronze Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07BN CRL Cardiff, Charnire pivot avec pince en U intgre montage suprieur ou infrieur, nickel bross
CAR07PN CRL Polished Nickel Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
NOTE: Optional 5 Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5 Pivot Pin sets are available when you want to alter the closing position of the door by 5. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
