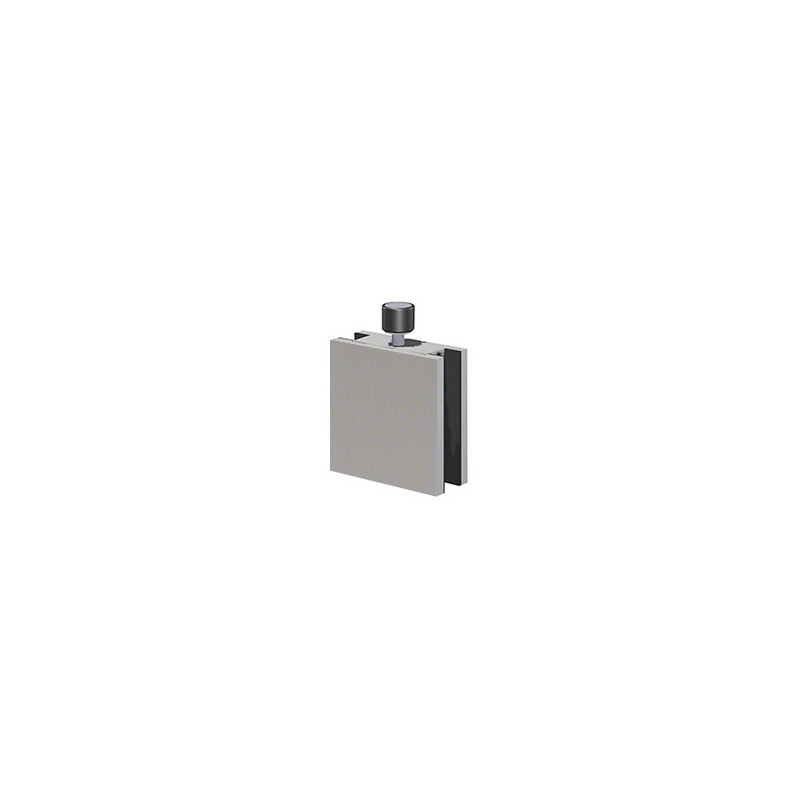

CRL CLEAR SPACE Brushed Nickel Replacement Top Guide - CLS01BN

Finition: NICKEL BROSS
73,70 $
Quantité

CLEAR SPACE is a State-of-the-Art Shower and Bath Enclosure system that is as functional as it is beautiful. An industry first elliptical door swing that gets out of the way, creating an open floor space on both sides of the enclosure! Large openings up to 72" (1.83 m) wide can result (based on a double door scenario), as the door projects only 10-1/2" (267 mm) into the enclosure, and 10-1/2" 16-1/2" (267- 419 mm) out from the enclosure, avoiding sinks, toilets, and shower valves in the open floor space. Natural pivot door operation enhances the user experience, producing door space efficiency, without a header! The Top Door Guide automatically rotates open against the interior wall when the door is operated. CLEAR SPACE is the perfect companion for assisting physically challenged individuals, because the distance that the door travels toward the wheel chair is drastically reduced, and this is very important when producing wide openings. Natural pivot door operation and assisted opening/closing further enhances ergonomics while assuring that the door stays put in both positions.
Produces Large Opening While Utilizing Minimal Use of Floor Space
Natural Feeling Elliptical Door Swing Motion
Self-Closing and Self-Opening for Final 20 Degrees of Door Travel
An Ideal Choice for Enclosures Used by Physically Challenged Individuals
Can Also Be Used in 90 Degree and 135 Degree Fixed Panel Configurations
Numro d'article: CLS01BN
galement disponible dans ces trois catalogues:
Cet article n'apparat pas encore dans aucun catalogue imprim
Couleur: Nickel bross
Expdier par: Expdition UPS
NUMRO D'ARTICLE DESCRIPTION COULEUR
CLS010RB CRL CLEAR SPACE Oil Rubbed Bronze Replacement Top Guide
CLS01BN CRL CLEAR SPACE Brushed Nickel Replacement Top Guide
CLS01CH CRL CLEAR SPACE Polished Chrome Replacement Top Guide
FEATURES AND BENEFITS:
The perfect companion for assisting physically challenged individuals.
Produces large openings with minimal use of floor space.
Natural feeling elliptical door swing motion that does not move excessively towards the wheel chair.
Doors can be installed at both sides of an opening.
Can be configured with a pair of doors or with a fixed lite opposite the shower head.
Self-closing, self-opening for final 20 degrees of door swing.
Top Door Guide automatically hides and is unobtrusive at only 1-1/4 (32 mm) tall.
Many fixed lite configurations are compatible, like the ever popular 90 degree return and 135 degree neo angle.
Door swings inwardly with a normal pivoting action when a doorway jamb/stop is not used.
Compatible with bathtubs, raised curbs and flush floors
Available optional header (call for details).
EACH CLEAR SPACE KIT CONTAINS:
Two - Wall Mount Hinges
Two - 180 Glass-to-Glass Hinges
One - Control Arm (Left or Right)
One - Top Guide
NOTE: For enclosures requiring three Wall Mount and three 180 Glass-to-Glass Hinges, those third hinges must be purchased separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness: 1/2" or 3/8" (12 or 10 mm)
Maximum Door Size:
Using two hinges - 36" (914 mm) wide and 110 lbs (50 kg);
Using three hinges - 36" (914 mm) wide and 140 lbs (63 kg)
(Do not exceed either width or weight)
Glass Fabrication Required for Hinges and Top Guide
