CRL EZ-Slide 180, Système de porte coulissante à suspension supérieure à rail unique - CRL3601
The CRL EZ-Slide 180 Top Hung Single Track Sliding Door Kit is an easy-to-install cost-effective solution to adding 'all-glass' sliding doors in commercial or residential applications.
This Kit is for 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Rated for Panels Weighing Up to 396 Lbs. (180 kg)
No Notches or Holes Needed in the Glass for Installation
Use Monolithic Tempered Glass
This Kit is for 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Rated for Panels Weighing Up to 396 Lbs. (180 kg)
No Notches or Holes Needed in the Glass for Installation
Use Monolithic Tempered Glass
Numro d'article: CRL3601
galement disponible dans ces trois catalogues:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 25G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 25P1
CRL63A Architectural Hardware Master, PAGE 322H
CRL14D Door and Entrance Catalog, PAGE 356D
AH18 Catalogue des mtaux architectur 2018, PAGE 391Z
CRL93A Architectural Hardware, PAGE CH258
Expdier par: Non expdi par UPS - Uniquement par transporteur
Poids d'expdition: 25 lb (11,34kg)
galement disponible dans ces trois catalogues:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 25G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 25P1
CRL63A Architectural Hardware Master, PAGE 322H
CRL14D Door and Entrance Catalog, PAGE 356D
AH18 Catalogue des mtaux architectur 2018, PAGE 391Z
CRL93A Architectural Hardware, PAGE CH258
Expdier par: Non expdi par UPS - Uniquement par transporteur
Poids d'expdition: 25 lb (11,34kg)
NUMRO D'ARTICLE DESCRIPTION
CRL3601 CRL EZ-Slide 180, Systme de porte coulissante suspension suprieure rail unique
CRL3601 CRL EZ-Slide 180, Systme de porte coulissante suspension suprieure rail unique
The only glass fabrication required is to polish the edges. If handles or knobs are desired, holes will be required for their mounting. Optional break metal covers are available on special order to help conceal the operating hardware.
NOTE: The EZ-Slide System is not designed for use in shower or steam room applications and should not be used with laminated glass.

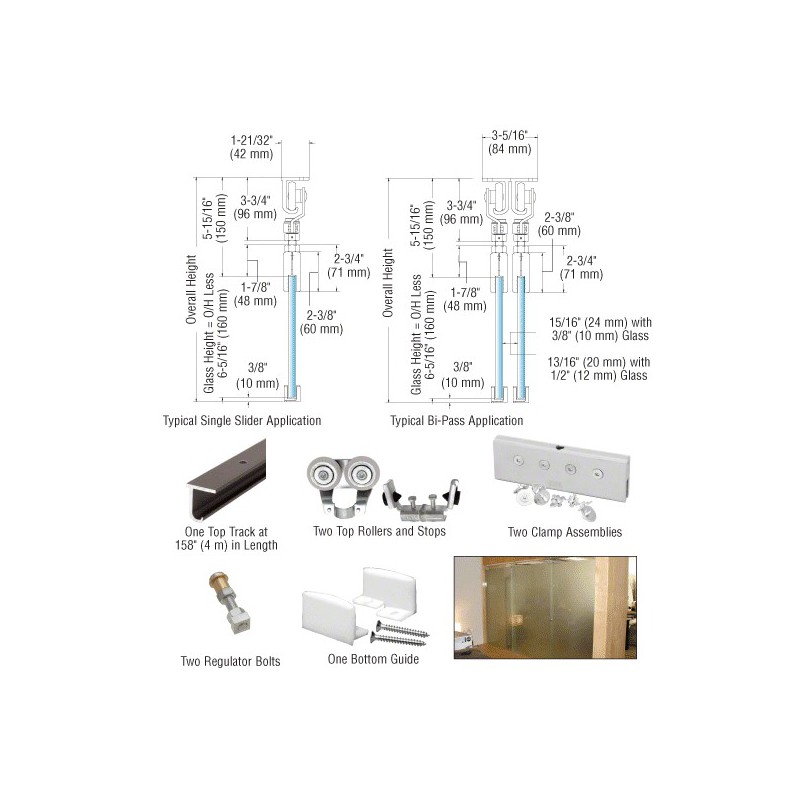

Everything (except the tempered glass) to complete a single panel slider application is available in our easy to order Kit. Pull hardware is sold separately.
For more information on this versatile and easy-to-install system, contact our Technical Sales Department.
NOTE: The EZ-Slide System is not designed for use in shower or steam room applications and should not be used with laminated glass.
Everything (except the tempered glass) to complete a single panel slider application is available in our easy to order Kit. Pull hardware is sold separately.
For more information on this versatile and easy-to-install system, contact our Technical Sales Department.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
