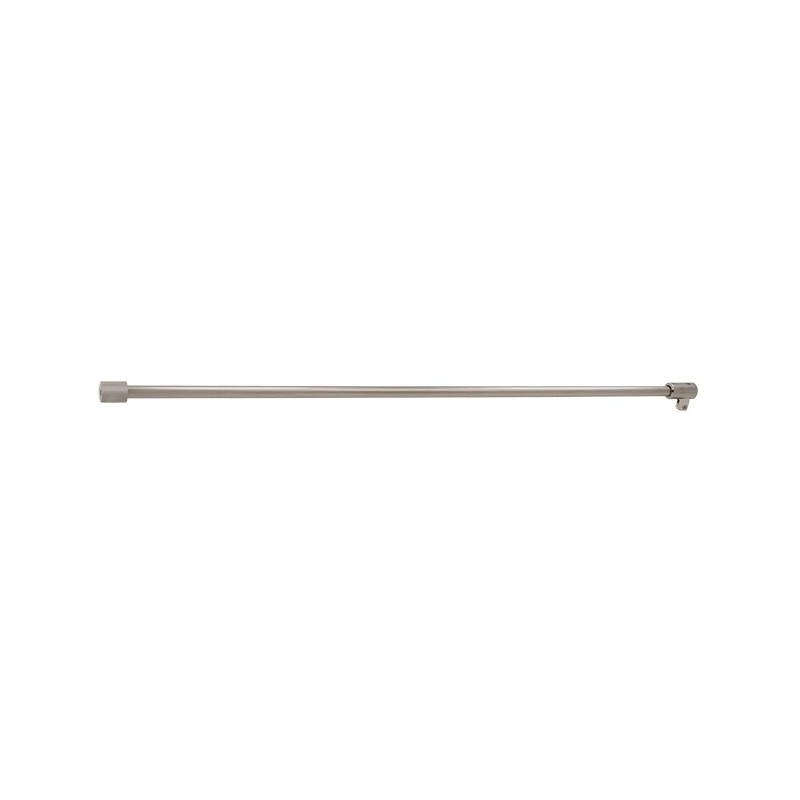

CRL Brushed Nickel Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 1/4" to 5/16" Thick Tempered Glass - SUP07BN
These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a slimline clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel.
May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
Provides Fixed Panel Support for Enclosures Not Going to Ceiling
Wall-to-Glass and Glass-to-Glass Models Available
Use Monolithic Tempered Glass
Simply Cut to Size to Accommodate Individual Configurations
No Hole Drilling Required
May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
Provides Fixed Panel Support for Enclosures Not Going to Ceiling
Wall-to-Glass and Glass-to-Glass Models Available
Use Monolithic Tempered Glass
Simply Cut to Size to Accommodate Individual Configurations
No Hole Drilling Required
Numro d'article: SUP07BN
galement disponible dans ces trois catalogues:
Couleur: Nickel bross
Expdier par: Expdition UPS
Poids d'expdition: 3 lb (1,36kg)
galement disponible dans ces trois catalogues:
Couleur: Nickel bross
Expdier par: Expdition UPS
Poids d'expdition: 3 lb (1,36kg)
NUMRO D'ARTICLE DESCRIPTION COULEUR
SUP07BN CRL Brushed Nickel Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 1/4" to 5/16" Thick Tempered Glass
SUP07BN CRL Brushed Nickel Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 1/4" to 5/16" Thick Tempered Glass
Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 5/16" (6 to 8 mm) thick tempered glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. Longer length Support Bars only are available separately.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass End Caps
Bar Lengths: 39" (1 m); 51" (1.3 m)
Glass Thickness Range: 1/4" to 5/16" (6 to 8 mm)
Includes: All Required Mounting Hardware
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass End Caps
Bar Lengths: 39" (1 m); 51" (1.3 m)
Glass Thickness Range: 1/4" to 5/16" (6 to 8 mm)
Includes: All Required Mounting Hardware
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
