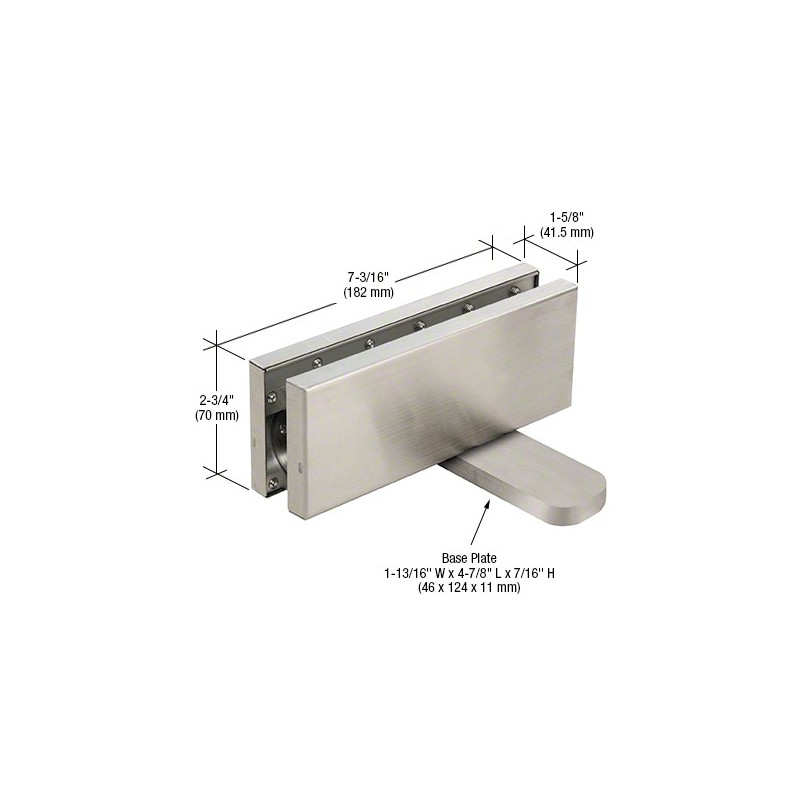

CRL Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - 90º Hold Open Model - CRL380HBS
CRL380 Series Hydraulic Patch Fittings are medium duty for interior use. There are two adjustment screws to adjust the latching speed and the swing speed. The Hydraulic Patch Fitting is designed for installation without the need for any other floor or overhead closing devices. Maximum door width is 39" (1 m) and maximum weight is 220 lbs (100kg). Fitting can accommodate 3/8" (10 mm), and 1/2" (12 mm) tempered glass. Glass fabrication (cut-out) is required.
2-9/16" [65 mm} Pivot Point
Available in Brushed and Polished Stainless and Matte Black Finishes
Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
Flush Mount - No Hole Required in the Floor
For Interior Use Only
Must be used with PH21A top patches
2-9/16" [65 mm} Pivot Point
Available in Brushed and Polished Stainless and Matte Black Finishes
Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
Flush Mount - No Hole Required in the Floor
For Interior Use Only
Must be used with PH21A top patches
Numro d'article: CRL380HBS
galement disponible dans ces trois catalogues:
AH18 Catalogue des mtaux architectur 2018, PAGE 211Z
HR18 Systmes de garde-corps d'architecture 2018, PAGE 513B
Couleur: Acier inoxydable bross
Expdier par: Expdition UPS
galement disponible dans ces trois catalogues:
AH18 Catalogue des mtaux architectur 2018, PAGE 211Z
HR18 Systmes de garde-corps d'architecture 2018, PAGE 513B
Couleur: Acier inoxydable bross
Expdier par: Expdition UPS
NUMRO D'ARTICLE DESCRIPTION COULEUR
CRL380A CRL Satin Anodized Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380BS CRL Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380MBL CRL Matte Black Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380PS CRL Polished Stainless Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380HA CRL Satin Anodized Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model
CRL380HBS CRL Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model
CRL380HMBL CRL Matte Black Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model
CRL380HPS CRL Polished Stainless Hydraulic Patch Fitting With 2-9/16" Setback - 90 Hold Open Model
CRL380A CRL Satin Anodized Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380BS CRL Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380MBL CRL Matte Black Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380PS CRL Polished Stainless Hydraulic Patch Fitting with 2-9/16" Setback - NHO
CRL380HA CRL Satin Anodized Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model
CRL380HBS CRL Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model
CRL380HMBL CRL Matte Black Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model
CRL380HPS CRL Polished Stainless Hydraulic Patch Fitting With 2-9/16" Setback - 90 Hold Open Model
Aucune information complmentaire sur l'article de disponible :
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
