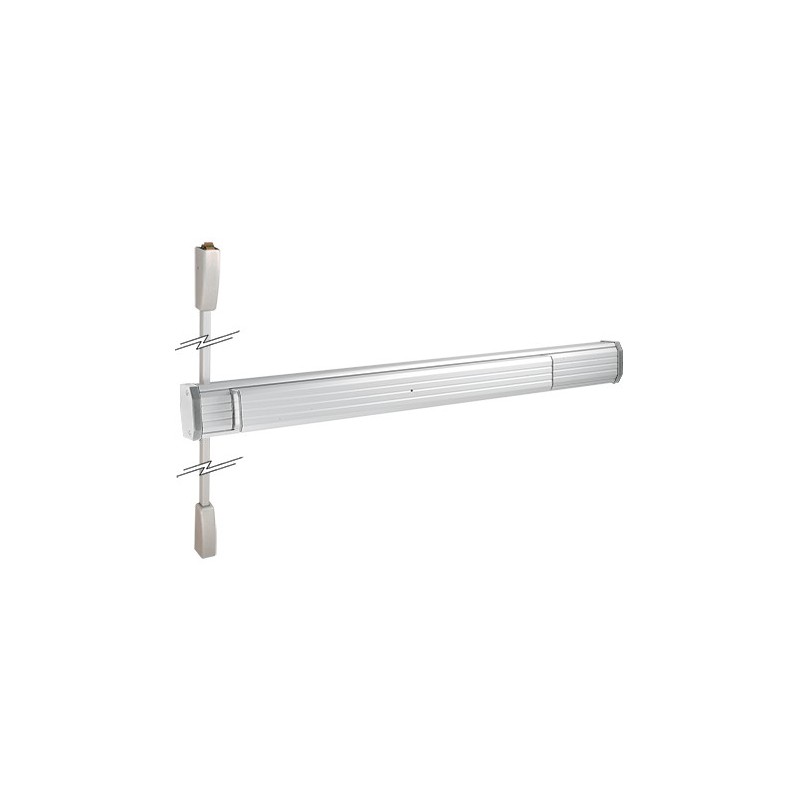

CRL Satin Aluminum 48" x 84" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device - 31127547628
This CRL Jackson Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging. Outside cylinder use requires use of 7500LV Outside Trim. This device will not accept cylinder only.
Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
"Soft-Touch" Smooth Action Push-Pad
Can Be Cut to Size
Standard Hex Key Dogging
Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
"Soft-Touch" Smooth Action Push-Pad
Can Be Cut to Size
Standard Hex Key Dogging
Numro d'article: 31127547628
galement disponible dans ces trois catalogues:
OP15 Office Partitions, PAGE 145X
CRL83R Door and Window Replacement, PAGE 735W
CRL93A Architectural Hardware, PAGE CH075
DC14 Door Controls Catalog 2014, PAGE D457
Expdier par: Tarif UPS pour colis surdimmensionn
Poids d'expdition: 8 lb (3,63kg)
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
OP15 Office Partitions, PAGE 145X
CRL83R Door and Window Replacement, PAGE 735W
CRL93A Architectural Hardware, PAGE CH075
DC14 Door Controls Catalog 2014, PAGE D457
Expdier par: Tarif UPS pour colis surdimmensionn
Poids d'expdition: 8 lb (3,63kg)
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
31127547628 CRL Satin Aluminum 48" x 84" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127547313 CRL Dark Bronze 48" x 84" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127548628 CRL Satin Aluminum 48" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127548313 CRL Dark Bronze 48" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127547628 CRL Satin Aluminum 48" x 84" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127547313 CRL Dark Bronze 48" x 84" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127548628 CRL Satin Aluminum 48" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
31127548313 CRL Dark Bronze 48" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1275 Surface Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m)
Standard Door Heights 84" (2.13 m) and 96" (2.44 m) - Field Sizable
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
SPECIFICATIONS:
1275 Surface Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m)
Standard Door Heights 84" (2.13 m) and 96" (2.44 m) - Field Sizable
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
