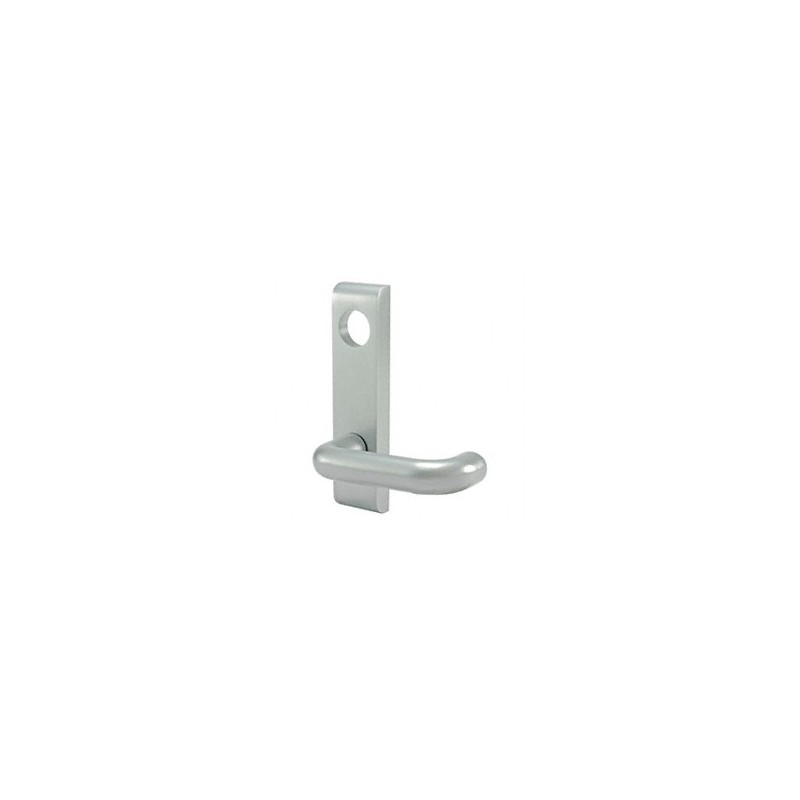

CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim for a 2" Thick Door with a Round Handle Aluminum Finish - 8500LV012628
The CRL Jackson 8500 Locking Outside Lever Trim is for use with the Jackson 2086, 2085, 1285 and 1085 concealed vertical rod exit devices. Its rugged simplicity belies its versatility: It is non-handed and field reversible, classroom function with the key locking and unlocking the lever which comes as either rounded - 01 or flat -02. It uses a standard 1" mortise cylinder with MS type cam such as DL2170SCKDA. It can also be ordered as electric 24V DC for secure access control, 8500EL012628.
For 2" Thick Doors
1-3/4" Wide for Narrow Stile Doors. Also Suitable for Medium and Wide Stile Aluminum and Hollow Metal Doors
Uses Standard 1" Mortise Cylinder with MS Type CAM
High Tensile Strength Aluminum Escutcheon and Lever
Non-Handed Field Reversible
For 2" Thick Doors
1-3/4" Wide for Narrow Stile Doors. Also Suitable for Medium and Wide Stile Aluminum and Hollow Metal Doors
Uses Standard 1" Mortise Cylinder with MS Type CAM
High Tensile Strength Aluminum Escutcheon and Lever
Non-Handed Field Reversible
Numro d'article: 8500LV012628
galement disponible dans ces trois catalogues:
Cet article n'apparat pas encore dans aucun catalogue imprim
Expdier par: Expdition UPS
Poids d'expdition: 3 lb (1,36kg)
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
Cet article n'apparat pas encore dans aucun catalogue imprim
Expdier par: Expdition UPS
Poids d'expdition: 3 lb (1,36kg)
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
8500LV012628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim for a 2" Thick Door with a Round Handle Aluminum Finish
8500LV01628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim with a Round Handle in Satin Aluminum
8500LV012628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim for a 2" Thick Door with a Round Handle Aluminum Finish
8500LV01628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim with a Round Handle in Satin Aluminum
SPECIFICATIONS:
Keyed Entry Requires use of CRL No. DRA10 Mortise Cylinder
ANSI Function 08 - Key Locks or Unlocks Lever
SOLENOID:
Input: 24V DC
Current Inrush Required: 0.25 Amps
Continuous Holding: 0.30 Amps
MATERIALS:
Escutcheon: Extruded Aluminum
Lever: High Tensile Strength Aluminum
Mechanical Components: Hardened, Plated Steel
Keyed Entry Requires use of CRL No. DRA10 Mortise Cylinder
ANSI Function 08 - Key Locks or Unlocks Lever
SOLENOID:
Input: 24V DC
Current Inrush Required: 0.25 Amps
Continuous Holding: 0.30 Amps
MATERIALS:
Escutcheon: Extruded Aluminum
Lever: High Tensile Strength Aluminum
Mechanical Components: Hardened, Plated Steel
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
