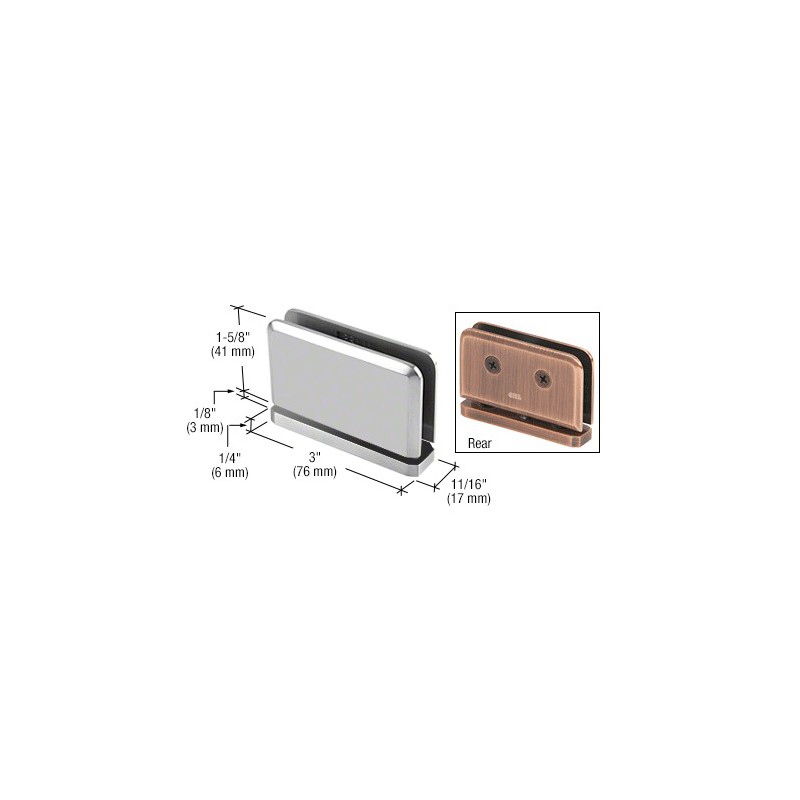

CRL Chrome Junior Prima Series Top Right or Bottom Left Mount Hinge - JRPPH01CHWP1
Advantages of CRL Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The JRPPH01 Model is adaptable to our Junior Header System. (must order JRHAB01 Junior Adaptor Block separately)
Numro d'article: JRPPH01CHWP1
galement disponible dans ces trois catalogues:
EUR Cet article est actuellement disponible uniquement en Europe et les rgions avoisinantes, PAGE EUR
Expdier par: Expdition UPS
galement disponible dans ces trois catalogues:
EUR Cet article est actuellement disponible uniquement en Europe et les rgions avoisinantes, PAGE EUR
Expdier par: Expdition UPS
NUMRO D'ARTICLE DESCRIPTION COULEUR
JRPPH01CH CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, chrome
JRPPH010RB CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, bronze frott l'huile
JRPPH01BL CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, coloris noir
JRPPH01BN CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, nickel bross
JRPPH01SC CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, chrome satin
JRPPH01CH CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, chrome
JRPPH010RB CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, bronze frott l'huile
JRPPH01BL CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, coloris noir
JRPPH01BN CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, nickel bross
JRPPH01SC CRL srie Junior Prima 01, Charnire pour installation suprieure ou infrieure, chrome satin
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
