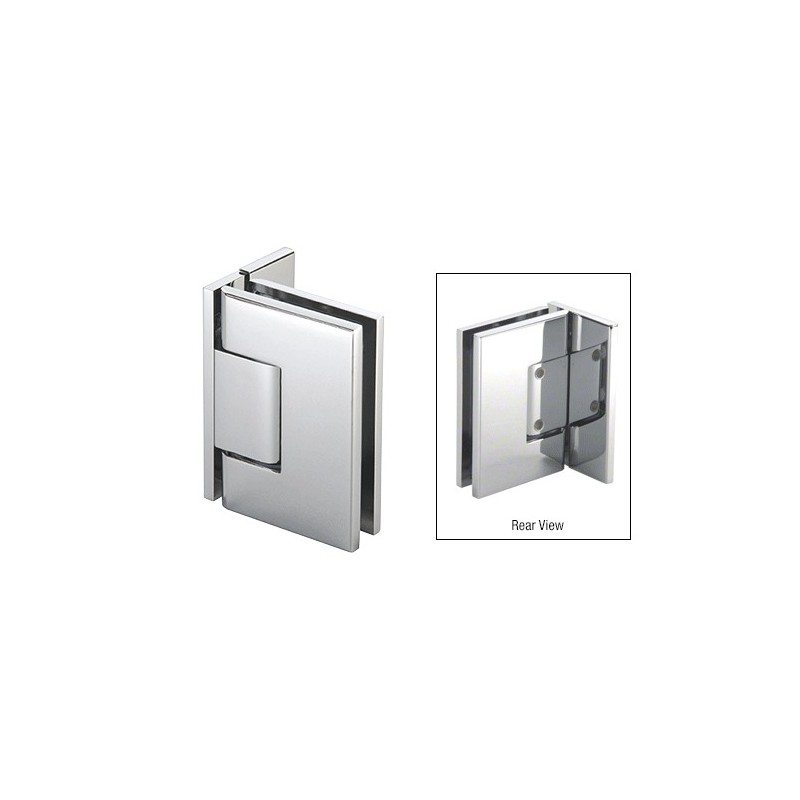

CRL Chrome Adjustable Wall Mount Offset Plate Melbourne Hinge with Cover Plate - MEL324CH
CRL Melbourne Series Adjustable Hinges allow adjustment to accommodate the desired angle (up to 60 degrees). This hinge features has large hinge plates that provide more clamping force. For ease of glass fabrication, a simple rectangular cut-out is required. Constructed of forged solid brass, the Melbourne Series is for use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass.
Adjustable Up to 60 Degrees
Simple Rectangular Cut-Out for Ease of Glass Fabrication
For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
Adjustable Up to 60 Degrees
Simple Rectangular Cut-Out for Ease of Glass Fabrication
For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
Numro d'article: MEL324CH
galement disponible dans ces trois catalogues:
Couleur: Chrome
Expdier par: Expdition UPS
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
Couleur: Chrome
Expdier par: Expdition UPS
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
MEL324CH CRL Chrome Adjustable Wall Mount Offset Plate Melbourne Hinge with Cover Plate
MEL324MBL CRL Matte Black Adjustable Wall Mount Offset Plate Melbourne Hinge with Cover Plate
MEL324CH CRL Chrome Adjustable Wall Mount Offset Plate Melbourne Hinge with Cover Plate
MEL324MBL CRL Matte Black Adjustable Wall Mount Offset Plate Melbourne Hinge with Cover Plate
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees In and 90 Degrees Out (at Factory Set Position)
Closing Type: Self-Centering When Within 15 Degrees of Closed Position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales.
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees In and 90 Degrees Out (at Factory Set Position)
Closing Type: Self-Centering When Within 15 Degrees of Closed Position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales.
