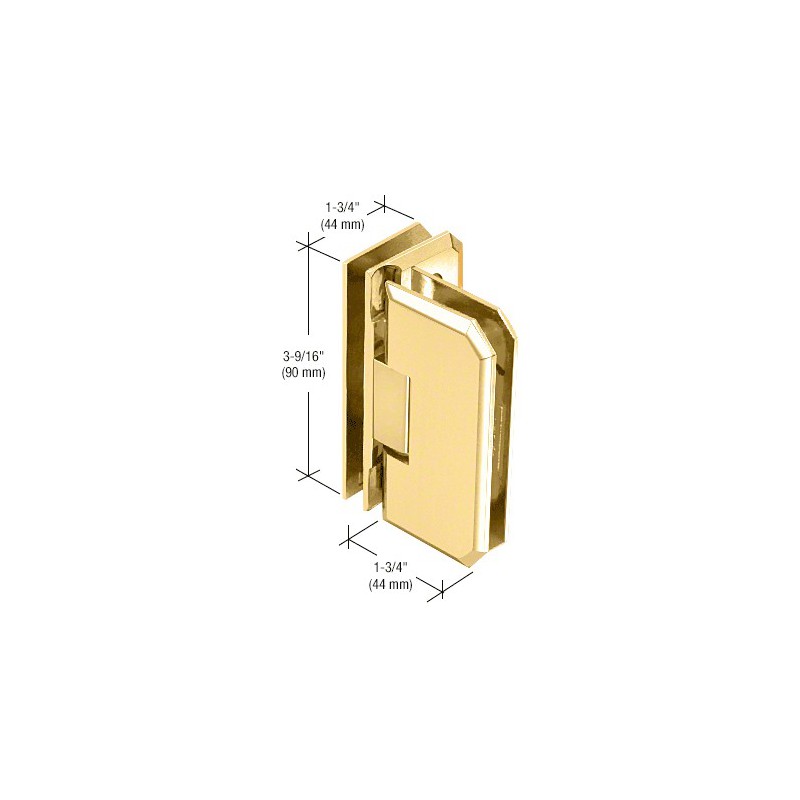

CRL Brass Monaco 090 Series 90 Degree Glass-to-Glass Hinge - M0N090BR
The CRL Monaco Series introduces charm, richness, and character to the choice of frameless shower door hinges using 1/4" (6 mm) to 5/16" (8 mm) safety glass. Available in five Wall Mount and six Glass-to-Glass styles, Monaco Hinges present numerous design and configuration options. Aesthetically pleasing beveled edges and corners give Monaco Hinges the look many architects and designers desire. Three distinct models stand out in the Monaco Series: The M0N244 and M0N044 models are Flush Back Plate Wall Mount Hinges that provide a clean exterior sight line because the mounting plate is visible only from the inside of the shower; the M0N181 Glass-to-Glass Hinge is used to mount a door to a fixed panel of glass in a 180 degree plane, and allows the door to swing out 180 degree and fold back on itself.
90 Degree Glass-to-Glass
Precise Closing Feature to Zero Degrees
Available in Many Beautiful Finishes
3 Year Warranty
90 Degree Glass-to-Glass
Precise Closing Feature to Zero Degrees
Available in Many Beautiful Finishes
3 Year Warranty
Numro d'article: M0N090BR
galement disponible dans ces trois catalogues:
SD16 Frameless Shower Door Hardware 2015, PAGE 145S
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 207J
Couleur: Laiton
Expdier par: Expdition UPS
Poids d'expdition: 2 lb (907g)
galement disponible dans ces trois catalogues:
SD16 Frameless Shower Door Hardware 2015, PAGE 145S
CRL23R Catalogue principal de quincaillerie pour portes de douche et miroiterie, PAGE 207J
Couleur: Laiton
Expdier par: Expdition UPS
Poids d'expdition: 2 lb (907g)
NUMRO D'ARTICLE DESCRIPTION COULEUR
M0N090CH CRL srie Monaco 090, Charnire verre-verre 90, chrome
M0N090BR CRL Brass Monaco 090 Series 90 Degree Glass-to-Glass Hinge
M0N090CH CRL srie Monaco 090, Charnire verre-verre 90, chrome
M0N090BR CRL Brass Monaco 090 Series 90 Degree Glass-to-Glass Hinge
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except M0N045, M0N054, M0N135, M0N181, M0N182, M0N183, and M0N244)
Closing Type: Precise Closing to 0 Degree
Cut-Out Required (Except M0N181, M0N182, M0N183, and M0N244, Which Require Holes Only)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except M0N045, M0N054, M0N135, M0N181, M0N182, M0N183, and M0N244)
Closing Type: Precise Closing to 0 Degree
Cut-Out Required (Except M0N181, M0N182, M0N183, and M0N244, Which Require Holes Only)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
