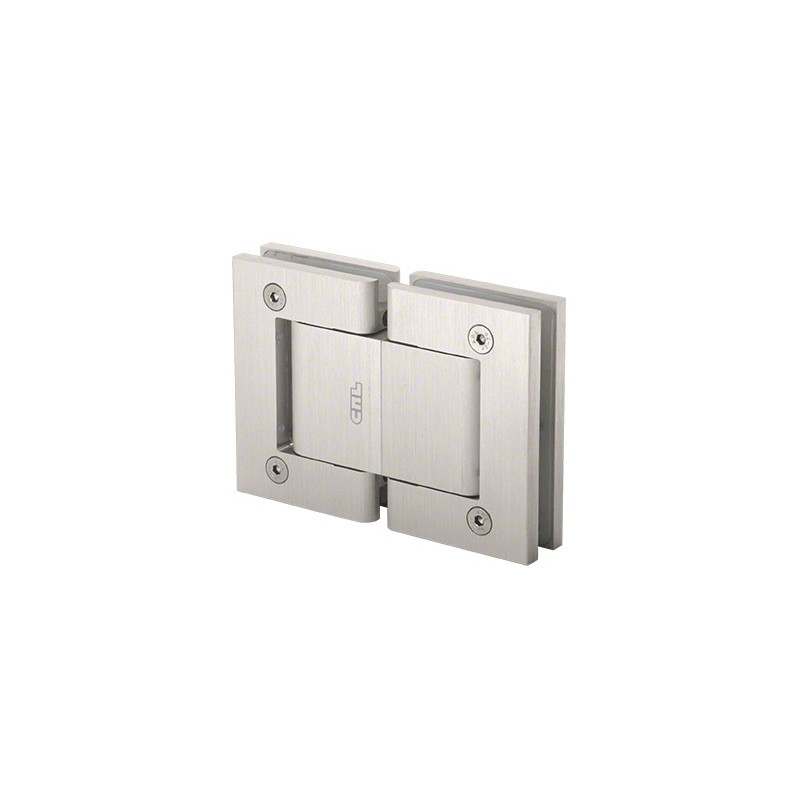

CRL Biloba, Charnière verre-verre 180°, satiné brossé - H8215SN
This CRL 180 Degree Glass-to-Glass Hinge swings in and out a full 90 degrees, with stop at 0 degrees. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (80 kg).
For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Hold Open or No Hold Open Models
Adjustable Closing Speed
A Great Alternative to Floor Closers and Patch Fittings
For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Hold Open or No Hold Open Models
Adjustable Closing Speed
A Great Alternative to Floor Closers and Patch Fittings
Numro d'article: H8215SN
galement disponible dans ces trois catalogues:
Couleur: Nickel satin
Expdier par: Expdition UPS
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
Couleur: Nickel satin
Expdier par: Expdition UPS
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
H8215CH CRL Biloba, Charnire verre-verre 180, chrome brillant
H8215SA CRL Satin Anodized Oil Dynamic 180 Degree Glass-to-Glass Hinge - No Hold Open
H8215SN CRL Biloba, Charnire verre-verre 180, satin bross
H8215CH CRL Biloba, Charnire verre-verre 180, chrome brillant
H8215SA CRL Satin Anodized Oil Dynamic 180 Degree Glass-to-Glass Hinge - No Hold Open
H8215SN CRL Biloba, Charnire verre-verre 180, satin bross
The Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors) leading into the bathroom area, Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
This hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing from 0 to 80 Degrees
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws Maximum Capacities Using Two
Hinges: Door Width: 39" (1 m); Max Door Weight: 176 lbs. (80 kg)
Properly mounted, two Oil Dynamic hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
This hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing from 0 to 80 Degrees
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws Maximum Capacities Using Two
Hinges: Door Width: 39" (1 m); Max Door Weight: 176 lbs. (80 kg)
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
