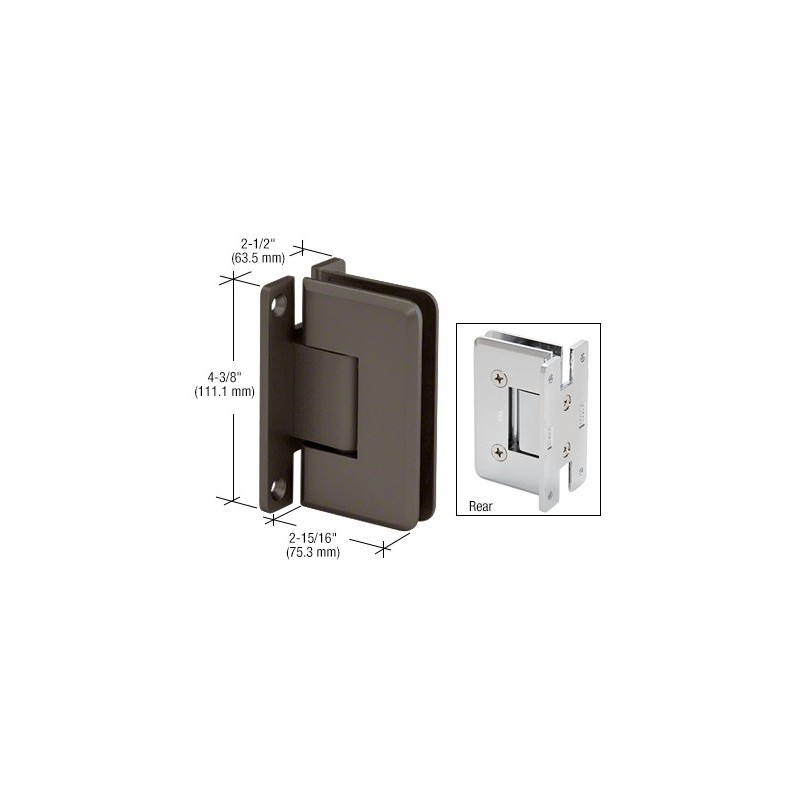

Charnière à fixation murale série Plymouth CRL, bronze frotté à l'huile - PLY0370RB

NOTE: Do not use three hinges.
This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.
