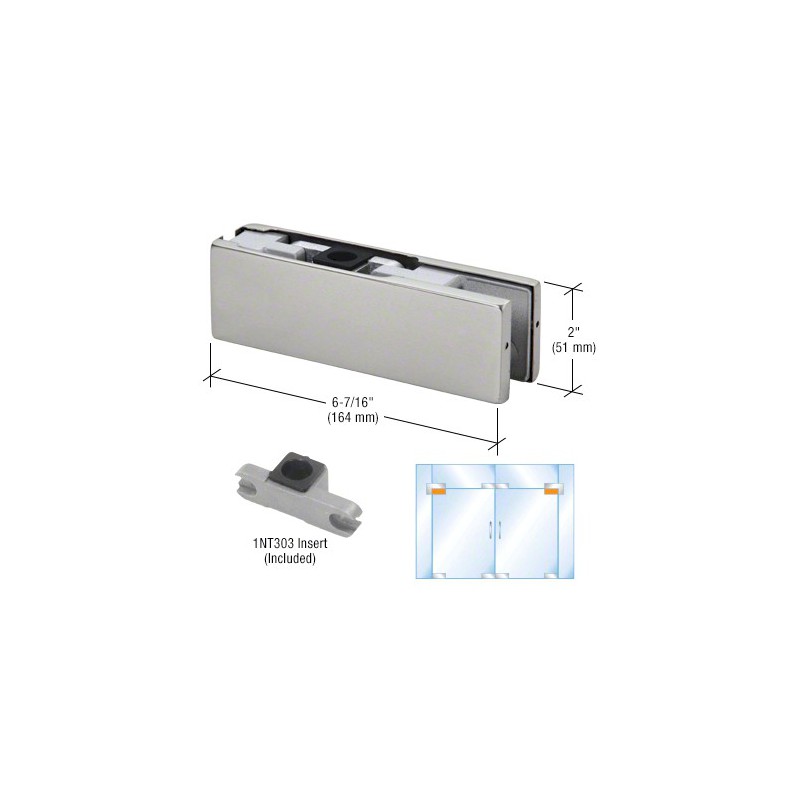

DORMAKABA Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass - PT2034BS
DORMAKABA Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.
For 3/4" (19 mm) Glass
Use Monolithic Tempered Glass
304 Alloy Stainless Steel Covers
2-3/4" (70 mm) Pivot Setback
For 3/4" (19 mm) Glass
Use Monolithic Tempered Glass
304 Alloy Stainless Steel Covers
2-3/4" (70 mm) Pivot Setback
Numro d'article: PT2034BS
galement disponible dans ces trois catalogues:
AH18 Catalogue des mtaux architectur 2018, PAGE 226Z
CRL93A Architectural Hardware, PAGE CH136
Couleur: Acier inoxydable bross
Expdier par: Expdition UPS
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
AH18 Catalogue des mtaux architectur 2018, PAGE 226Z
CRL93A Architectural Hardware, PAGE CH136
Couleur: Acier inoxydable bross
Expdier par: Expdition UPS
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
PT2034BS DORMAKABA Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
PT2034PS DORMAKABA Polished Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
PT2034BS DORMAKABA Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
PT2034PS DORMAKABA Polished Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
