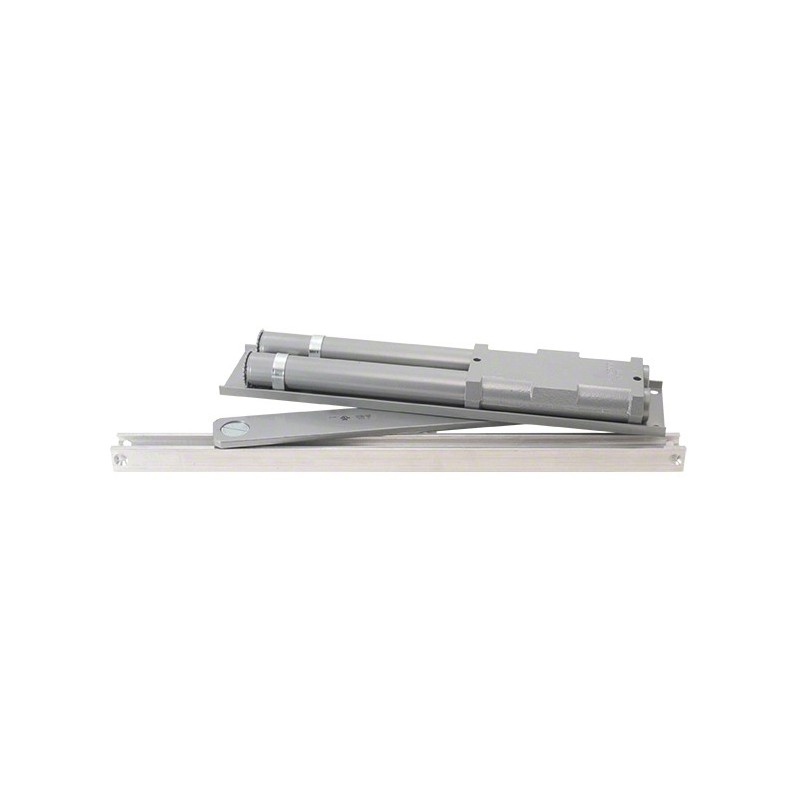

LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 3 - 6033AL

The LCN 6030 Series Pacer Overhead Concealed Door Closer is a heavy-duty closer designed to fit a shallow 1-3/4" (45 mm) x 4" (102 mm) transom. The single lever arm and roller assembly provides smooth, quiet door control, and the choice of painted finishes and track functions meet virtually all architectural requirements. The closer is non-handed and center-hung for double acting applications. A Center-Hung Top Pivot is required for this application but must be ordered separately. Available in fixed spring sizes that will meet ADA requirements and accommodate interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m). The series is UL and cUL listed for self-closing doors without hold-open.
Requires Minimum 1-3/4" x 4" (45 x 102 mm) Wide Transom
Certified to ANSI Standard A156.4, Grade 1
UL and cUL Listed for Self-Closing Doors without Hold-Open
Fixed Spring Sizes Available for Interior Doors to 54" (1.37 m) and Exterior to 42" (1.07 m)
Backcheck and Non-Critical Speed and Latch Adjustments
