Norton Dark Bronze 5700 Series - LEO Low Energy Power Door Operator - LE05741DU

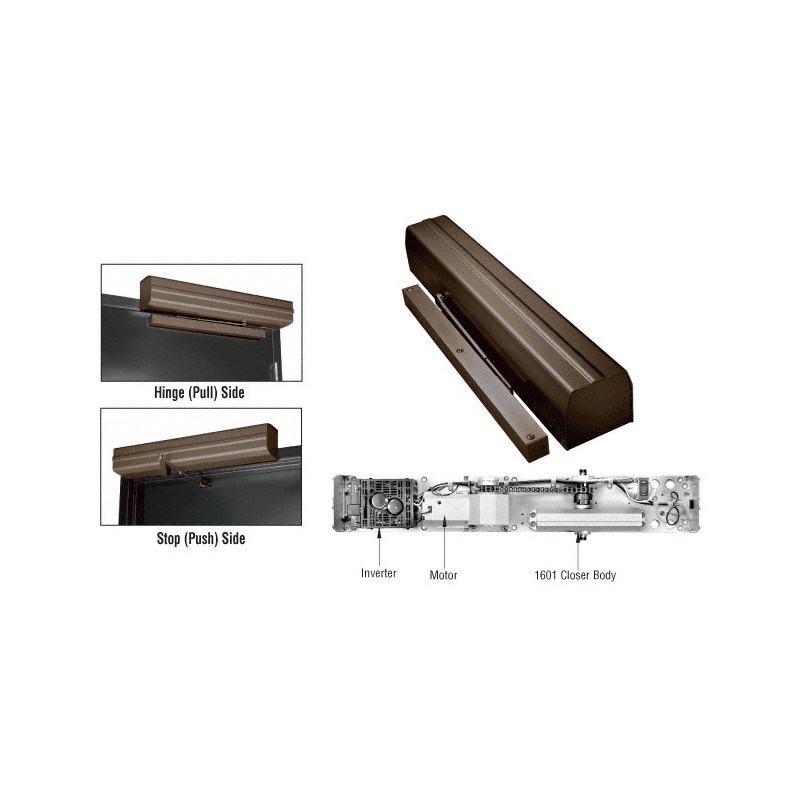

Norton's 5700 Series introduces a new generation of power door operators. The patented design of LEO is based on ease and simplicity. LEO installs in minutes rather than hours, and consists of three basic components: Inverter, motor, and Norton's 1601 Closer Body.
Complies with A.D.A. Accessibility Guidelines
Retains Proper Closing Force While Providing A.D.A. Mandated Opening Force
Meets ANSI/BHMA A156.19 and A.D.A. A156.4
Easy-to-Install and Set Up
Non-Handed
UL Listed
Complies with A.D.A. Accessibility Guidelines
Retains Proper Closing Force While Providing A.D.A. Mandated Opening Force
Meets ANSI/BHMA A156.19 and A.D.A. A156.4
Easy-to-Install and Set Up
Non-Handed
UL Listed
Numro d'article: LE05741DU
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 446H
CRL83R Door and Window Replacement, PAGE 681W
CRL93A Architectural Hardware, PAGE CH162
DC14 Door Controls Catalog 2014, PAGE D321
Couleur: Bronze fonc
Expdier par: Expdition UPS
Poids d'expdition: 34 lb (15,42kg)
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 446H
CRL83R Door and Window Replacement, PAGE 681W
CRL93A Architectural Hardware, PAGE CH162
DC14 Door Controls Catalog 2014, PAGE D321
Couleur: Bronze fonc
Expdier par: Expdition UPS
Poids d'expdition: 34 lb (15,42kg)
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
LE05741A Norton Aluminum 5700 Series - LEO Low Energy Power Door Operator
LE05741DU Norton Dark Bronze 5700 Series - LEO Low Energy Power Door Operator
LE05741A Norton Aluminum 5700 Series - LEO Low Energy Power Door Operator
LE05741DU Norton Dark Bronze 5700 Series - LEO Low Energy Power Door Operator
What separates LEO from other operators is its ability to function as a standard door closer. When the door is opened manually, there is little resistance, and the drive train and motor are not engaged. The 1601 Closer, not the motor, controls the closing cycle. Since the door closer does not back-drive the motor during the closing cycle, there is no loss of closer efficiency.
In the event of a power outage, the door can be manually opened and will close via the door closer's spring force.
LEO is listed with UL and ANSI/BHMA A156.19, and meets the requirements of A.D.A. A156.4. It is ideal for offices, retirement facilities, schools, churches, and any location where extra features are not required and noise may be a concern. LEO can be activated via wall switch, radio frequency device or motion sensor, and is available for both push and pull side applications. Based on its dual functionality, ease of use and quiet operation, LEO offers the customer a unique choice.
NOTE: This product is a low energy power operator intended for A.D.A. assist openings only. It is not intended to be used for applications requiring a full time automatic operator.
SPECIFICATIONS:
Power Input: 120V AC, 60Hz
Current Draw: .6A
Relay Output: DPDT-N.O./N.C. (jumper)
External On/Off Switch
Adjustable Hydraulic Backcheck
Adjustable Hold Open: 0 to 30 Seconds
Warranty: 1 Year Limited
Finish: Sprayed Combination of Waterborne Acrylic and Polyester Powder Coat
Dimensions:
Body with Cover: 29" (737 mm) x 5-1/4" (133 mm)
Body Projection: 4-5/8" (117 mm)
Track Assembly: 23" (584 mm)
NOTE: Contact CRL Technical Sales for use on doors exceeding 250 lbs. (113 kg).
NOTE: Door Switches and Sensors are not included with 5700 Series Door Operators. These must be ordered separately.
In the event of a power outage, the door can be manually opened and will close via the door closer's spring force.
LEO is listed with UL and ANSI/BHMA A156.19, and meets the requirements of A.D.A. A156.4. It is ideal for offices, retirement facilities, schools, churches, and any location where extra features are not required and noise may be a concern. LEO can be activated via wall switch, radio frequency device or motion sensor, and is available for both push and pull side applications. Based on its dual functionality, ease of use and quiet operation, LEO offers the customer a unique choice.
NOTE: This product is a low energy power operator intended for A.D.A. assist openings only. It is not intended to be used for applications requiring a full time automatic operator.
SPECIFICATIONS:
Power Input: 120V AC, 60Hz
Current Draw: .6A
Relay Output: DPDT-N.O./N.C. (jumper)
External On/Off Switch
Adjustable Hydraulic Backcheck
Adjustable Hold Open: 0 to 30 Seconds
Warranty: 1 Year Limited
Finish: Sprayed Combination of Waterborne Acrylic and Polyester Powder Coat
Dimensions:
Body with Cover: 29" (737 mm) x 5-1/4" (133 mm)
Body Projection: 4-5/8" (117 mm)
Track Assembly: 23" (584 mm)
NOTE: Contact CRL Technical Sales for use on doors exceeding 250 lbs. (113 kg).
NOTE: Door Switches and Sensors are not included with 5700 Series Door Operators. These must be ordered separately.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
