CRL Poignée de commande de sortie électronique, inversée, plaque de retenue, verrouillage en haut, extérieur, type X, montée sur rail, pour porte battante, côté droit, acier inoxydable poli - EG100X3RPPS
CRL-Blumcraft manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
UL and ULC Recognized Component
U.S. Patent No. 7,347,461 - Canadian Patent No. 2,418,658
Ideal for Maintaining Security and Aesthetics
Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
Custom Finishes Available By Special Order
Custom Sizes Ship Within One to Two Weeks
UL and ULC Recognized Component
U.S. Patent No. 7,347,461 - Canadian Patent No. 2,418,658
Ideal for Maintaining Security and Aesthetics
Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
Custom Finishes Available By Special Order
Custom Sizes Ship Within One to Two Weeks
Numro d'article: EG100X3RPPS
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 192H
CRL14D Door and Entrance Catalog, PAGE 404D
DC14 Door Controls Catalog 2014, PAGE D402
LP11 Catalogue de quincaillerie d'architecture et poignes de porte commerciales, PAGE L222
Couleur: Acier inoxydable poli
Expdier par: Non expdi par UPS - Uniquement par transporteur
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
CRL63A Architectural Hardware Master, PAGE 192H
CRL14D Door and Entrance Catalog, PAGE 404D
DC14 Door Controls Catalog 2014, PAGE D402
LP11 Catalogue de quincaillerie d'architecture et poignes de porte commerciales, PAGE L222
Couleur: Acier inoxydable poli
Expdier par: Non expdi par UPS - Uniquement par transporteur
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
3E100X3RKBS CRL Poigne de porte extrieure, modle X, commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, fixation sur profil de porte battante, ct droit, pour verre de 19 mm (3/4 po), acier inoxydable bross
EG100X3RKBS CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, acier inoxydable bross
EG100X3RKPB CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, laiton bross
EG100X3RKPS CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, acier inoxydable poli
EG100X3RKSB CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, laiton bross
EG100X3RPPS CRL Poigne de commande de sortie lectronique, inverse, plaque de retenue, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, acier inoxydable poli
3E100X3RKBS CRL Poigne de porte extrieure, modle X, commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, fixation sur profil de porte battante, ct droit, pour verre de 19 mm (3/4 po), acier inoxydable bross
EG100X3RKBS CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, acier inoxydable bross
EG100X3RKPB CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, laiton bross
EG100X3RKPS CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, acier inoxydable poli
EG100X3RKSB CRL Poigne de commande de sortie lectronique, inverse, accs par cl, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, laiton bross
EG100X3RPPS CRL Poigne de commande de sortie lectronique, inverse, plaque de retenue, verrouillage en haut, extrieur, type X, monte sur rail, pour porte battante, ct droit, acier inoxydable poli

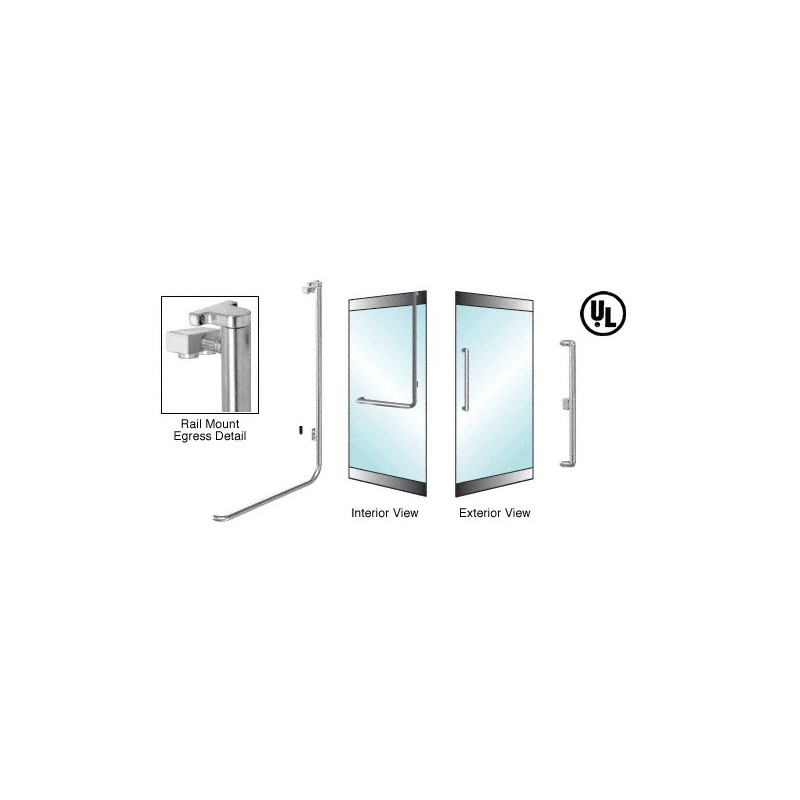

An electronic switch concealed within the vertical tubing of our Electronic Egress Control Handle releases the Magnetic Lock at the top or bottom of the door, when the interior actuation bar is pushed. Please consult your local building codes as they relate to the acceptability of electro-magnetic locking hardware.
CRL EG100 Series Electronic Egress Control Handles are an economical method to control access into, and safe exit from, areas that call for security and still maintain the beauty and view of an 'all-glass' door. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.
Like our Panic and Deadbolt Handle Line, these Handles also meet the rigid requirements imposed by the A.D.A. Codes on every manufacturer and installer of 'all-glass' doors.
The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door. This eliminates any interference in the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
CRL EG100 Series Electronic Egress Control Handles are an economical method to control access into, and safe exit from, areas that call for security and still maintain the beauty and view of an 'all-glass' door. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.
Like our Panic and Deadbolt Handle Line, these Handles also meet the rigid requirements imposed by the A.D.A. Codes on every manufacturer and installer of 'all-glass' doors.
The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door. This eliminates any interference in the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
