CRL Poignée de porte extérieure, modèle D, antipanique, inversée, accès par clé, verrouillage en haut, fixation sur profilé de porte battante, côté droit, acier inoxydable poli - DPA100D3RKPS
Our Designer Series "D" Shape CRL-Blumcraft line of Access Control Handles features sharp lines and angles with a smooth round gripping surface is manufactured for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
Patent No. D725,457
UL, ULC, and ANSI/BHMA Certified
Sharp Lines and Angles with a Smooth Round Gripping Surface
Available in Alloy 316 Brushed or Polished Stainless Steel
Sharp Lines and Angles with a Smooth Round Gripping Surface
Investment Cast Corners for Greater Strength and Consistency
Crisp Transitions at All Corners
Patent No. D725,457
UL, ULC, and ANSI/BHMA Certified
Sharp Lines and Angles with a Smooth Round Gripping Surface
Available in Alloy 316 Brushed or Polished Stainless Steel
Sharp Lines and Angles with a Smooth Round Gripping Surface
Investment Cast Corners for Greater Strength and Consistency
Crisp Transitions at All Corners
Numro d'article: DPA100D3RKPS
galement disponible dans ces trois catalogues:
CRL14D Door and Entrance Catalog, PAGE 397D
DC14 Door Controls Catalog 2014, PAGE D397
Couleur: Acier inoxydable poli
Expdier par: Non expdi par UPS - Uniquement par transporteur
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
CRL14D Door and Entrance Catalog, PAGE 397D
DC14 Door Controls Catalog 2014, PAGE D397
Couleur: Acier inoxydable poli
Expdier par: Non expdi par UPS - Uniquement par transporteur
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
DPA100D3RKBS CRL Poigne antipanique de porte extrieure, modle D, inverse, accs par cl, verrouillage en haut, fixation sur profil de porte battante, ct droit, acier inoxydable bross
DPA100D3RKPS CRL Poigne de porte extrieure, modle D, antipanique, inverse, accs par cl, verrouillage en haut, fixation sur profil de porte battante, ct droit, acier inoxydable poli
DPA100D3RKBS CRL Poigne antipanique de porte extrieure, modle D, inverse, accs par cl, verrouillage en haut, fixation sur profil de porte battante, ct droit, acier inoxydable bross
DPA100D3RKPS CRL Poigne de porte extrieure, modle D, antipanique, inverse, accs par cl, verrouillage en haut, fixation sur profil de porte battante, ct droit, acier inoxydable poli

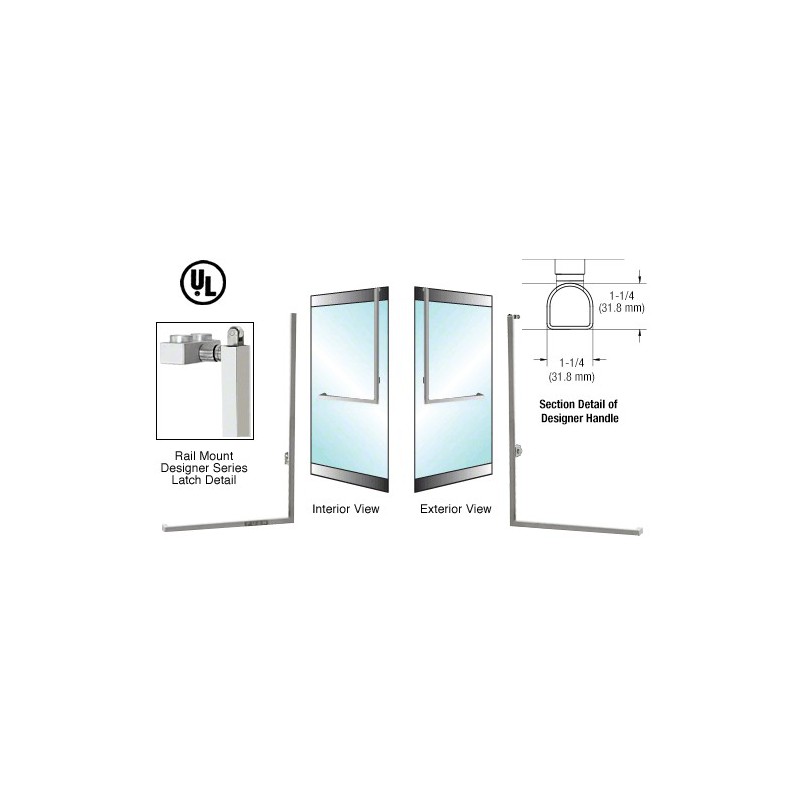

The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.
CRL manufactures a complete line of Panic Handles designed with the 'all-glass' door in mind. These elegant devices give you maximum viewing area and a contemporary look when used on 1/2", 5/8" or 3/4" (12, 15 or 19 mm) tempered glass doors.
The most popular of these Panics is our DPA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of 'all-glass' doors.
The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
All DPA100 Series Panic Handles come with a 'dogging' feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
CRL manufactures a complete line of Panic Handles designed with the 'all-glass' door in mind. These elegant devices give you maximum viewing area and a contemporary look when used on 1/2", 5/8" or 3/4" (12, 15 or 19 mm) tempered glass doors.
The most popular of these Panics is our DPA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of 'all-glass' doors.
The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
All DPA100 Series Panic Handles come with a 'dogging' feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
