CRL-Blumcraft® 3'-0" P-Style Brushed Stainless Single Door Only Kit - with Lock - P35BS12SL
CRL offers Wet Glazed Frameless Glass Door Kits for single or double door entrances in door only or complete entrance kits. All you supply is the 3/8" to 1/2" (10 to 12 mm) tempered glass.
Door Only or Complete Entrance Kits
3'-0" Single Door or 6'-0" Double Door Kits for Use with 3/8" to 1/2" (10 to 12 mm) Tempered Glass
Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes
Door Only or Complete Entrance Kits
3'-0" Single Door or 6'-0" Double Door Kits for Use with 3/8" to 1/2" (10 to 12 mm) Tempered Glass
Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes
Catalog Number: P35BS12SL
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 127D
CRL63A Architectural Hardware Master, PAGE 397H
Color: Brushed Stainless
Ship Via: Can Ship UPS
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 127D
CRL63A Architectural Hardware Master, PAGE 397H
Color: Brushed Stainless
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION COLOR
P35BS12SL CRL-Blumcraft 3'-0" P-Style Brushed Stainless Single Door Only Kit - with Lock
P35BS12SL CRL-Blumcraft 3'-0" P-Style Brushed Stainless Single Door Only Kit - with Lock

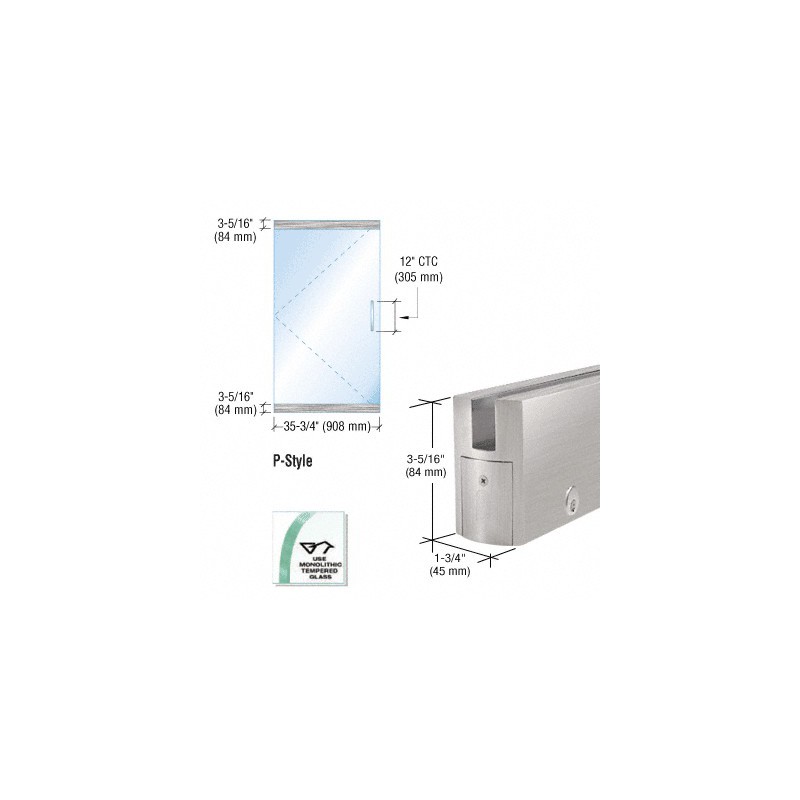

This kit utilizes our CR350 Wet Glaze Rails. It is a 'P' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 3/8" to 1/2" (10 to 12 mm) fully tempered glass, and requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Door Only Kits include Rails, Jackson Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately. For additional information contact our Technical Sales Department.
With Lock Kits Include:
One CR350 Series Wet Glaze Rail Without Lock
One CR350 Series Wet Glaze Rail With 777S Lock
One Model DRA1020 Cylinder/Thumbturn Combo
One Model 777SP Strike Plate
One Model 20104M20 Jackson Overhead Door Closer
One CRL8010AS Closer Arm
One CRL8010DP Bottom Pivot
One CRL8010FS Mounting Clip
One Model CM12X12 Pull Handle
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Door Only Kits include Rails, Jackson Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately. For additional information contact our Technical Sales Department.
With Lock Kits Include:
One CR350 Series Wet Glaze Rail Without Lock
One CR350 Series Wet Glaze Rail With 777S Lock
One Model DRA1020 Cylinder/Thumbturn Combo
One Model 777SP Strike Plate
One Model 20104M20 Jackson Overhead Door Closer
One CRL8010AS Closer Arm
One CRL8010DP Bottom Pivot
One CRL8010FS Mounting Clip
One Model CM12X12 Pull Handle
