CRL Brushed Stainless 1-1/4" Diameter Adjustable Length Standoff Base - ASB114134BS

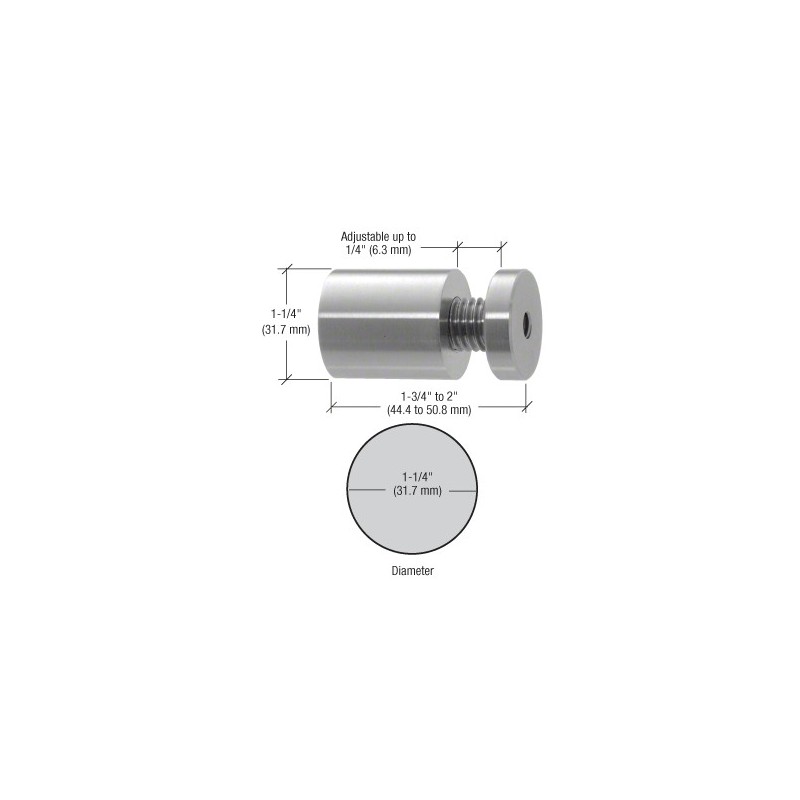

The CRL Adjustable Standoff is primarily designed for use on uneven walls or surfaces. When the adjustment collar is in the compressed position the base measures 1-3/4" (44.5 mm) in length. When the collar is backed out an additional 1/4" (6 mm) is gained for a 2" (51 mm) length. Any length in-between is possible simply by rotating the collar to the desired measurement and securing it with the Allen set screw. Panels require a 5/8" (16 mm) hole for assembly. Does not include a Cat. No. CAP114BS Standoff Cap. Designed to be used with our 1-1/4" (32 mm) Diameter Standoff components.
Allows 1/4" (6 mm) Adjustment for Irregular Walls
Eliminates Washers to Accomplish an Even Sightline
Brushed 316 Stainless Steel
Catalog Number: ASB114134BS
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 241G
SC18 Standoff and Clamp Hardware, PAGE 24SC
CRL63A Architectural Hardware Master, PAGE 645H
AM09 Architectural Metals 2009, PAGE M246
Color: Brushed Stainless
Diameter: 1-1/4" (32 mm)
Length: Adjustable 1-3/4" to 2" (44.5 to 50.8 mm)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
ASB114134BS CRL Brushed Stainless 1-1/4" Diameter Adjustable Length Standoff Base
NOTE: Minimum material thickness for use with 1-1/4" (31.7 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.
