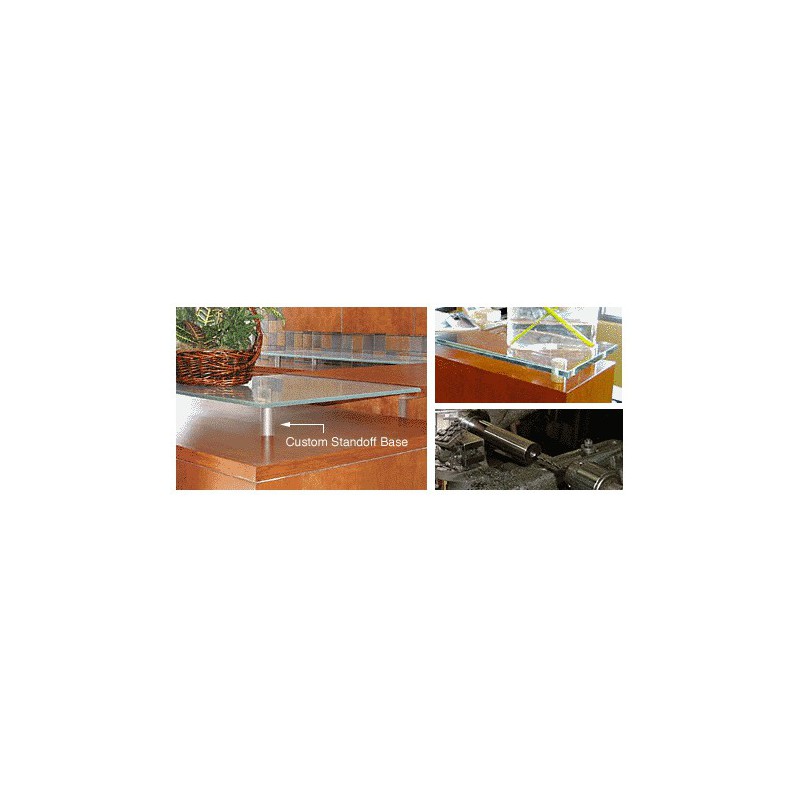

CRL Custom Length Sandblasted Stainless 1-1/4" Diameter Standoff Base - S0B114CSSSB
This CRL Custom Standoff Base matches your Custom Cap, and is now available from the Manufacturing Division of CRL. As a result of customer requests for special lengths and finishes of Standoff Products, CRL provides custom fabrication of 1/2" (12 mm), 3/4" (19 mm), 1" (25 mm), 1-1/4" (32 mm), 1-3/4" (44 mm) and 2" (51 mm) standoff base and cap assemblies.
Manufactured to Your Specification
Available in Many Finishes
1-1/4" Diameter (32 mm)
Threaded Completely Through
Manufactured to Your Specification
Available in Many Finishes
1-1/4" Diameter (32 mm)
Threaded Completely Through
Catalog Number: S0B114CSSSB
Also Available in These Catalogs:
Diameter: 1-1/4" (32 mm)
Length: Custom
Ship Via: Freight and Weight Dependent on Size
Also Available in These Catalogs:
Diameter: 1-1/4" (32 mm)
Length: Custom
Ship Via: Freight and Weight Dependent on Size
CATALOG NUMBER DESCRIPTION COLOR
S0B114C0RB CRL Custom Oil Rubbed Bronze 1-1/4" Diameter Standoff Base
S0B114CBR CRL Custom Brass 1-1/4" Diameter Standoff Base
S0B114CBS CRL Custom 316 Brushed Stainless 1-1/4" Diameter Standoff Base
S0B114CPS CRL Custom 316 Polished Stainless 1-1/4" Diameter Standoff Base
S0B114CPT CRL Custom Color Custom 1-1/4" Diameter Standoff Base
S0B114CSB CRL Custom Satin Brass 1-1/4" Diameter Standoff Base
S0B114CSC CRL Custom Satin Chrome 1-1/4" Diameter Standoff Base
S0B114CSSSB CRL Custom Length Sandblasted Stainless 1-1/4" Diameter Standoff Base
S0B114C0RB CRL Custom Oil Rubbed Bronze 1-1/4" Diameter Standoff Base
S0B114CBR CRL Custom Brass 1-1/4" Diameter Standoff Base
S0B114CBS CRL Custom 316 Brushed Stainless 1-1/4" Diameter Standoff Base
S0B114CPS CRL Custom 316 Polished Stainless 1-1/4" Diameter Standoff Base
S0B114CPT CRL Custom Color Custom 1-1/4" Diameter Standoff Base
S0B114CSB CRL Custom Satin Brass 1-1/4" Diameter Standoff Base
S0B114CSC CRL Custom Satin Chrome 1-1/4" Diameter Standoff Base
S0B114CSSSB CRL Custom Length Sandblasted Stainless 1-1/4" Diameter Standoff Base
If the overall length of the base is 2" (51 mm) or less, the base will be drilled and tapped all the way through. If over 2" (51 mm), the base will be drilled and tapped at a depth of 1" (25.4 mm) on each end.
The thread sizes for Custom Caps and Bases are:
For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.
For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter, drill and tap for 1/4"-20 screw thread.
For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter, drill and tap for 5/16"-18 screw thread.
For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8"-16 screw thread.
CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
The thread sizes for Custom Caps and Bases are:
For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.
For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter, drill and tap for 1/4"-20 screw thread.
For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter, drill and tap for 5/16"-18 screw thread.
For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8"-16 screw thread.
CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
