CRL Brushed Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors - W12BSS

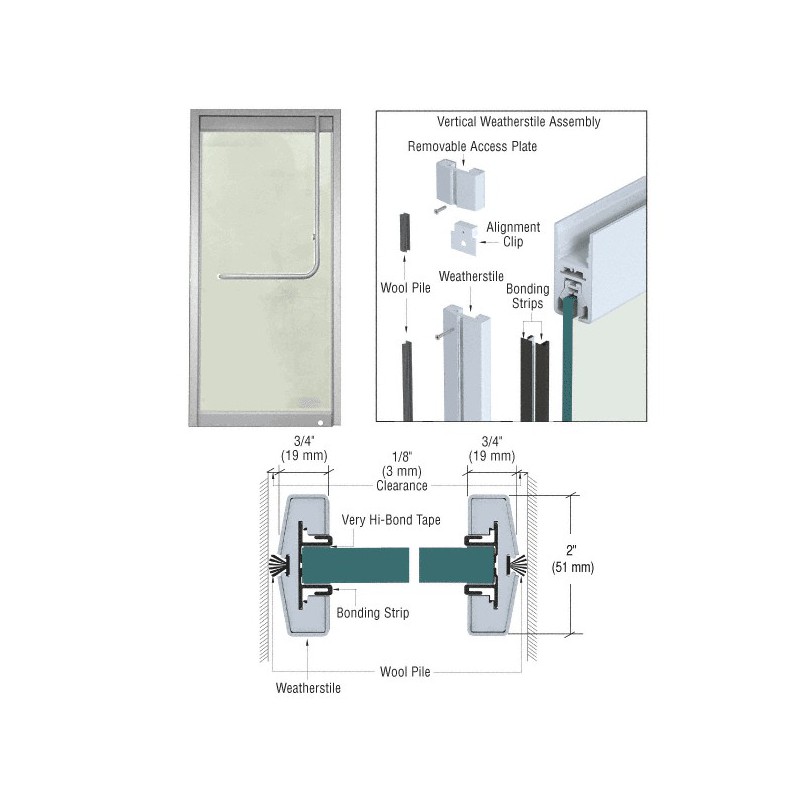

CRL Vertical Weatherstile Kits include two 117" (2.97 m) lengths of Weatherstile with Wool Pile Weatherstrip, one 120" (3.05 m) black EPDM Filler Strip (for double door applications), four 117" (2.97 m) lengths of Bonding Strips with Very Hi-Bond Tape, four 1-1/2" (38 mm) tall Weatherstripped Removable Access Plates with Alignment Clips, and installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.
Kit for 1/2" (12 mm) Glass Doors
Use Monolithic Tempered Glass
Reduces Drafts and Protects the Edge of the Glass
Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
Five Cladded Architectural Finishes
Kit for 1/2" (12 mm) Glass Doors
Use Monolithic Tempered Glass
Reduces Drafts and Protects the Edge of the Glass
Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
Five Cladded Architectural Finishes
Catalog Number: W12BSS
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 139H
AH18 Architectural Hardware Catalog 2018, PAGE 173Z
CRL83R Door and Window Replacement, PAGE 649W
CRL93A Architectural Hardware, PAGE CH029
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Set
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 139H
AH18 Architectural Hardware Catalog 2018, PAGE 173Z
CRL83R Door and Window Replacement, PAGE 649W
CRL93A Architectural Hardware, PAGE CH029
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Set
CATALOG NUMBER DESCRIPTION COLOR
W12BSS CRL Brushed Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12BSSC CRL Custom Brushed Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12DUS CRL Black Bronze Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12DUSC CRL Custom Black Bronze Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PBS CRL Polished Brass Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PBSC CRL Custom Polished Brass Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PSS CRL Polished Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PSSC CRL Custom Polished Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12SAS CRL Satin Anodized Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12SASC CRL Custom Satin Anodized Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12BSS CRL Brushed Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12BSSC CRL Custom Brushed Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12DUS CRL Black Bronze Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12DUSC CRL Custom Black Bronze Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PBS CRL Polished Brass Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PBSC CRL Custom Polished Brass Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PSS CRL Polished Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12PSSC CRL Custom Polished Stainless Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12SAS CRL Satin Anodized Vertical Weatherstile Kits for 1/2" Glass Single Doors
W12SASC CRL Custom Satin Anodized Vertical Weatherstile Kits for 1/2" Glass Single Doors
CRL Vertical Weatherstile Kits have been redesigned for use with newly fabricated single or double doors with either 1/2" (12 mm) or 3/4" (19 mm) tempered glass.
These narrow stiles not only reduce drafts, but they also protect the edge of the glass with minimal disruption of the 'all-glass' look. Five architectural finishes are available to match the adjacent metal finish of most any commercial door.
Installation is accomplished with internal Bonding Strips that attach to the glass with Very Hi-Bond Tape for a secure and accurate fit every time. This replaces the traditional glue-on weatherstile that would need time for adhesive to set prior to installation.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre-installed door rails.
These narrow stiles not only reduce drafts, but they also protect the edge of the glass with minimal disruption of the 'all-glass' look. Five architectural finishes are available to match the adjacent metal finish of most any commercial door.
Installation is accomplished with internal Bonding Strips that attach to the glass with Very Hi-Bond Tape for a secure and accurate fit every time. This replaces the traditional glue-on weatherstile that would need time for adhesive to set prior to installation.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre-installed door rails.
