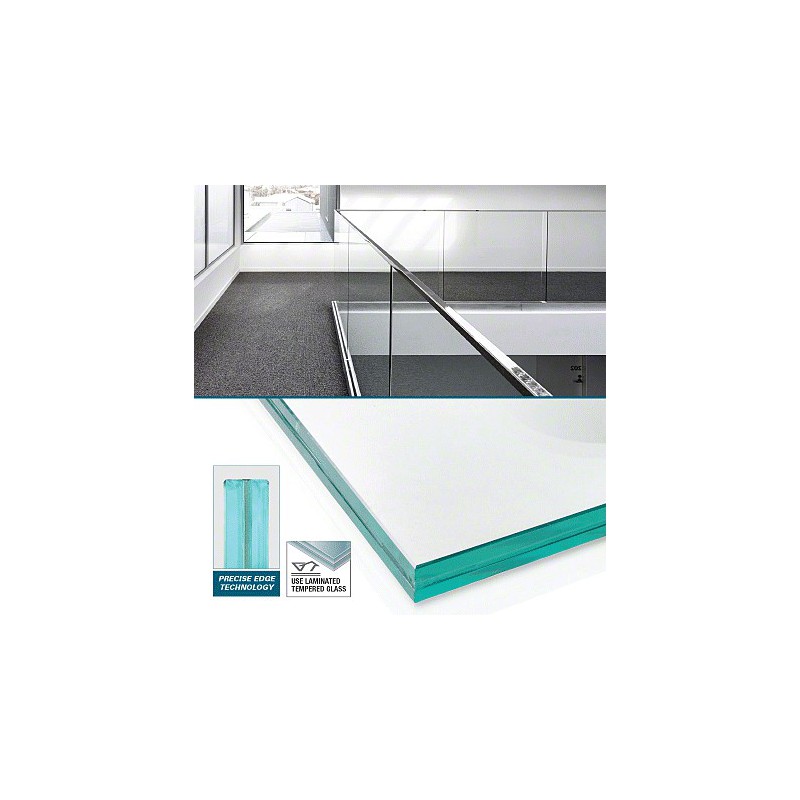

CRL 13.52mm Clear Laminated Tempered 48" x 41" Starphire® Glass Panel - LG17LC
Catalog Number: LG17LC
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 109Z
HR18 Architectural Railing Systems 2018, PAGE 137B
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 109Z
HR18 Architectural Railing Systems 2018, PAGE 137B
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION
LG17LC CRL 13.52mm Clear Laminated Tempered 48" x 41" Starphire Glass Panel
LG17LC CRL 13.52mm Clear Laminated Tempered 48" x 41" Starphire Glass Panel
NOTE: Boxing and crating charges will apply. Contact CRL's Railing Technical Sales today for more information.
11/16" (17.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 5/16" (8 mm) x .060 (1.52 mm) Ionoplast x 5/16" (8 mm)
Thickness Range: 0.666" (16.92 mm) to 0.713" (18.12 mm)
Weight Per Square Foot (Pounds): 8.83
9/16" (13.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/4" (6 mm) x .060 (1.52 mm) Ionoplast x 1/4" (6 mm)
Thickness Range: 0.497" (12.62 mm) to 0.549" (13.94 mm)
Weight Per Square Foot (Pounds): 6.83
27/32" (21.52 MM) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 3/8" (10 mm) x .060 (1.52 mm) Ionoplast x 3/8" (10 mm)
Thickness Range: 0.803" (20.40 mm) to 0.903" (22.94 mm)
Weight Per Square Foot (Pounds): 10.09
1-1/16" (25.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/2" (12 mm) x .060 (1.52 mm) Ionoplast x 1/2" (12 mm)
Thickness Range: 0.960" (24.90 mm) to 1.060" (26.92 mm)
Weight Per Square Foot (Pounds): 13.35
11/16" (17.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 5/16" (8 mm) x .060 (1.52 mm) Ionoplast x 5/16" (8 mm)
Thickness Range: 0.666" (16.92 mm) to 0.713" (18.12 mm)
Weight Per Square Foot (Pounds): 8.83
9/16" (13.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/4" (6 mm) x .060 (1.52 mm) Ionoplast x 1/4" (6 mm)
Thickness Range: 0.497" (12.62 mm) to 0.549" (13.94 mm)
Weight Per Square Foot (Pounds): 6.83
27/32" (21.52 MM) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 3/8" (10 mm) x .060 (1.52 mm) Ionoplast x 3/8" (10 mm)
Thickness Range: 0.803" (20.40 mm) to 0.903" (22.94 mm)
Weight Per Square Foot (Pounds): 10.09
1-1/16" (25.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/2" (12 mm) x .060 (1.52 mm) Ionoplast x 1/2" (12 mm)
Thickness Range: 0.960" (24.90 mm) to 1.060" (26.92 mm)
Weight Per Square Foot (Pounds): 13.35
Starphire is a registered trademark of PPG Industries Ohio, Inc.
