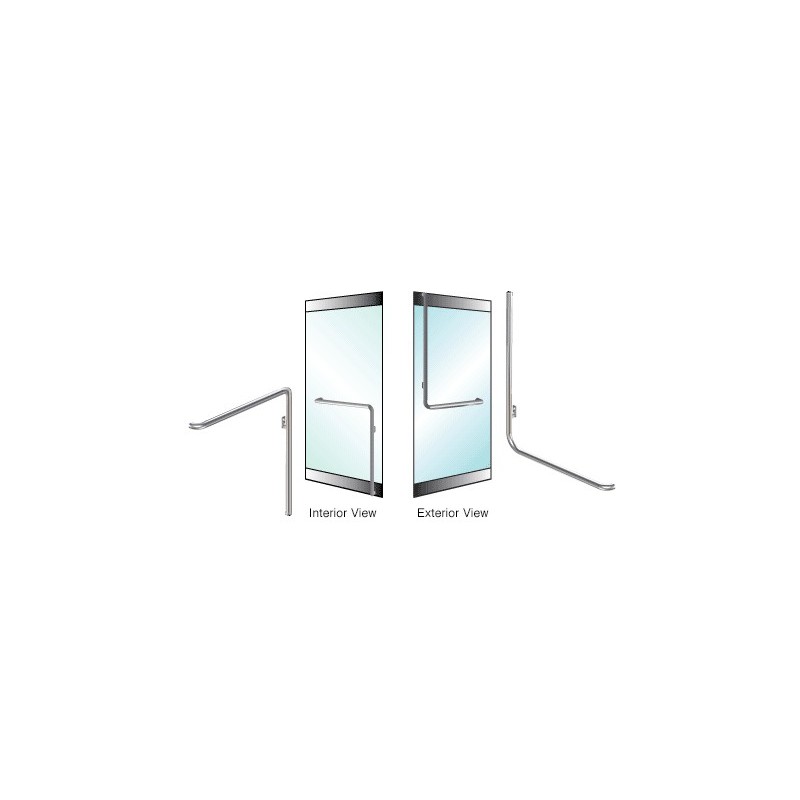

CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount 'D' Exterior Dummy Handle for 5/8" Glass - 5H110D3RBS
This CRL-Blumcraft® Glass Door Dummy Handle is designed to allow maximum view and a contemporary look to 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Installations can be made on single or double doors. The handles are designed to fit on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 80" to 108" (2.03 to 2.74 m) high. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom.
For 5/8" (16 mm) Tempered Glass Doors
Custom Fabricated to Match All Panic, Deadbolt or Electronic Egress Control Handle and Exterior Handle Combinations
Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order
For 5/8" (16 mm) Tempered Glass Doors
Custom Fabricated to Match All Panic, Deadbolt or Electronic Egress Control Handle and Exterior Handle Combinations
Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order
Catalog Number: 5H110D3RBS
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
3H110D3RBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount "D" Exterior Dummy Handle for 3/4" Glass
3H110D4RBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount "D" Exterior Dummy Handle for 3/4" Glass
5H110D3RBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount 'D' Exterior Dummy Handle for 5/8" Glass
5H110D4RBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount 'D' Exterior Dummy Handle for 5/8" Glass
DH110D3RBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount "D" Exterior Dummy Handle
DH110D4RBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount "D" Exterior Dummy Handle
3H110D3RBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount "D" Exterior Dummy Handle for 3/4" Glass
3H110D4RBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount "D" Exterior Dummy Handle for 3/4" Glass
5H110D3RBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount 'D' Exterior Dummy Handle for 5/8" Glass
5H110D4RBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount 'D' Exterior Dummy Handle for 5/8" Glass
DH110D3RBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount "D" Exterior Dummy Handle
DH110D4RBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount "D" Exterior Dummy Handle
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
1/2" or 3/4" (12 or 19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Dummy Handles you must specify:
DH100, DH110 or other Interior Handle Series
Exterior Handle Option
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Brushed or Polished Stainless, Satin or Polished Brass Finish
Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors.
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
1/2" or 3/4" (12 or 19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Dummy Handles you must specify:
DH100, DH110 or other Interior Handle Series
Exterior Handle Option
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Brushed or Polished Stainless, Satin or Polished Brass Finish
Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors.
