CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass - B5S10F6
The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
For 1/2" (12 mm) Monolithic Tempered Glass
Typically Used as the Base Channel for
Glass Railing Systems or Windscreens
Drilled and Counter Bored 6" (152 mm)
Center-to-Center, or We Will Custom Drill
to Your Specifications
Custom Cutting and Mitering Service
Test Reports Available
Use Monolithic Tempered Glass
CRL Glass Railing Systems Meets
NBC Load Requirements When Installed
in Accordance to ICC-3269
For 1/2" (12 mm) Monolithic Tempered Glass
Typically Used as the Base Channel for
Glass Railing Systems or Windscreens
Drilled and Counter Bored 6" (152 mm)
Center-to-Center, or We Will Custom Drill
to Your Specifications
Custom Cutting and Mitering Service
Test Reports Available
Use Monolithic Tempered Glass
CRL Glass Railing Systems Meets
NBC Load Requirements When Installed
in Accordance to ICC-3269
Catalog Number: B5S10F6
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 132R
HR18 Architectural Railing Systems 2018, PAGE 144B
CRL93A Architectural Railings, PAGE HR018

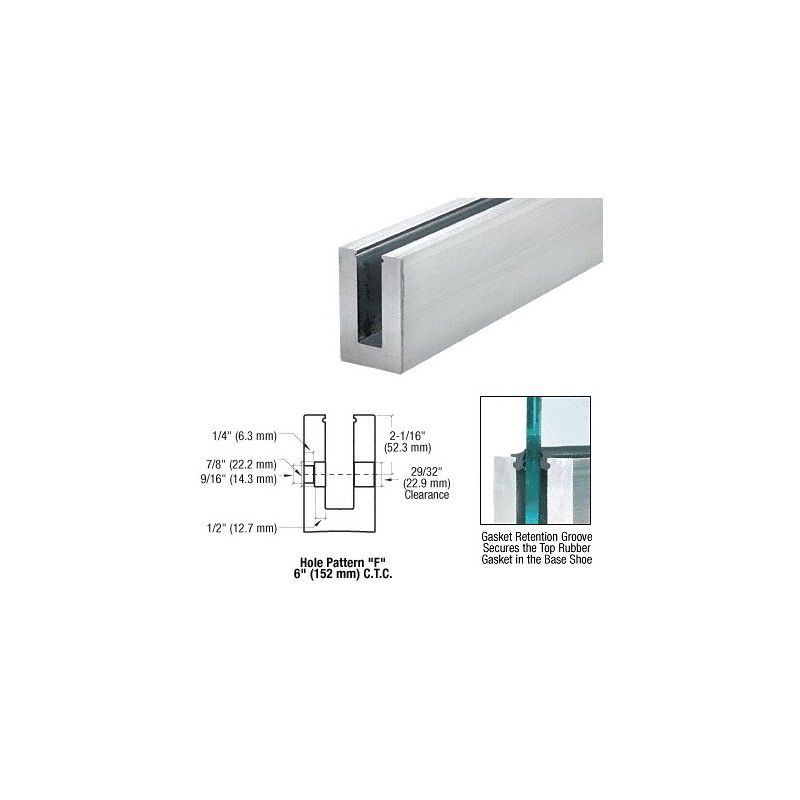

Stock Length: 120" (3.05 m)
Hole Size: 9/16" (14.3 mm)
Counter Bore x Depth
Holes Drilled C.T.C.: 7/8" (22 mm) x 1/2" (12.7 mm)
6" (152 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 84 lb (38.1kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 132R
HR18 Architectural Railing Systems 2018, PAGE 144B
CRL93A Architectural Railings, PAGE HR018
Stock Length: 120" (3.05 m)
Hole Size: 9/16" (14.3 mm)
Counter Bore x Depth
Holes Drilled C.T.C.: 7/8" (22 mm) x 1/2" (12.7 mm)
6" (152 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 84 lb (38.1kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
B5S10 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Extrusion Only Without Holes
B5S10C CRL Mill Aluminum Custom B5S Series Standard Square Base Shoe
B5S10D CRL Mill Aluminum 120" GRS B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10D6 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10F CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
B5S10F6 CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
B5S10 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Extrusion Only Without Holes
B5S10C CRL Mill Aluminum Custom B5S Series Standard Square Base Shoe
B5S10D CRL Mill Aluminum 120" GRS B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10D6 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10F CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
B5S10F6 CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System.
1/2" (12 mm) Thick Glass when using TAPER-LOC Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System.
