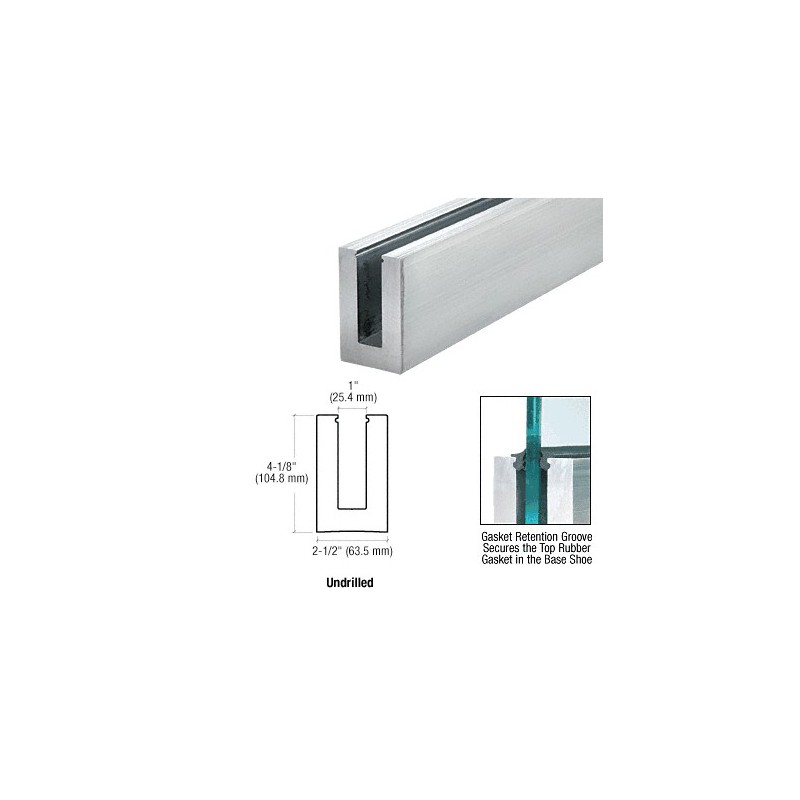

CRL Mill Aluminum Custom B5S Series Standard Square Base Shoe - B5S10C
The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. The five tested methods of attachment can be found on pages 160R to 161R, and associated fasteners are shown on pages 165R to 167R in our CRL63R catalog. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
For 1/2" (12 mm) Monolithic Tempered Glass
Typically Used as the Base Channel for Glass Railing Systems or Windscreens
Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
Custom Cutting and Mitering Service
Test Reports Available
For 1/2" (12 mm) Monolithic Tempered Glass
Typically Used as the Base Channel for Glass Railing Systems or Windscreens
Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
Custom Cutting and Mitering Service
Test Reports Available
Catalog Number: B5S10C
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION
B5S10 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Extrusion Only Without Holes
B5S10C CRL Mill Aluminum Custom B5S Series Standard Square Base Shoe
B5S10D CRL Mill Aluminum 120" GRS B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10D6 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10F CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
B5S10F6 CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
B5S10 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Extrusion Only Without Holes
B5S10C CRL Mill Aluminum Custom B5S Series Standard Square Base Shoe
B5S10D CRL Mill Aluminum 120" GRS B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10D6 CRL Mill Aluminum 120" B5S Series Standard Square Base Shoe Drilled with 9/16" Hole Size
B5S10F CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
B5S10F6 CRL Mill Aluminum 120" Fascia Mount Square Base Shoe for 1/2" Glass
SPECIFICATIONS:
Material: 6063 Aluminum Alloy T52 Temper
Typical Use: Heavy-Duty Square Base Shoe used with 1/2" (12 mm) glass as the base channel for glass railing systems. Also available counter bored and drilled.
Material: 6063 Aluminum Alloy T52 Temper
Typical Use: Heavy-Duty Square Base Shoe used with 1/2" (12 mm) glass as the base channel for glass railing systems. Also available counter bored and drilled.
