CRL Brite Anodized 144" EZ-Adjust Shower Door Header Kit - EHK144BA
The CRL EZ-Adjust Shower Door Header Kit provides a safe and beautiful frameless shower installation by securing enclosures that do not reach the ceiling. Acting as a "crown" over the top of the glass, the EZ-Adjust Shower Door Header Kit is bracketed to each wall.
Secures Shower Enclosure Not Going to Ceiling
Allows Horizontal (Side-to-Side) Adjustment of Hinge After Installation
No Hole Drilling Required Through Header or Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06
Constructed of Heavy 6063-T5 Aluminum Alloy
For Use with 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Thick Glass
Use Monolithic Tempered Glass
Secures Shower Enclosure Not Going to Ceiling
Allows Horizontal (Side-to-Side) Adjustment of Hinge After Installation
No Hole Drilling Required Through Header or Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06
Constructed of Heavy 6063-T5 Aluminum Alloy
For Use with 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Thick Glass
Use Monolithic Tempered Glass
Catalog Number: EHK144BA
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 204S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 308J
CRL93A Shower Door, PAGE SD114
Color: Brite Anodized
Length: 144" (3.66 m)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 204S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 308J
CRL93A Shower Door, PAGE SD114
Color: Brite Anodized
Length: 144" (3.66 m)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
EHK144BA CRL Brite Anodized 144" EZ-Adjust Shower Door Header Kit
EHK144BN CRL Brushed Nickel 144" EZ-Adjust Shower Door Header Kit
EHK144BA CRL Brite Anodized 144" EZ-Adjust Shower Door Header Kit
EHK144BN CRL Brushed Nickel 144" EZ-Adjust Shower Door Header Kit

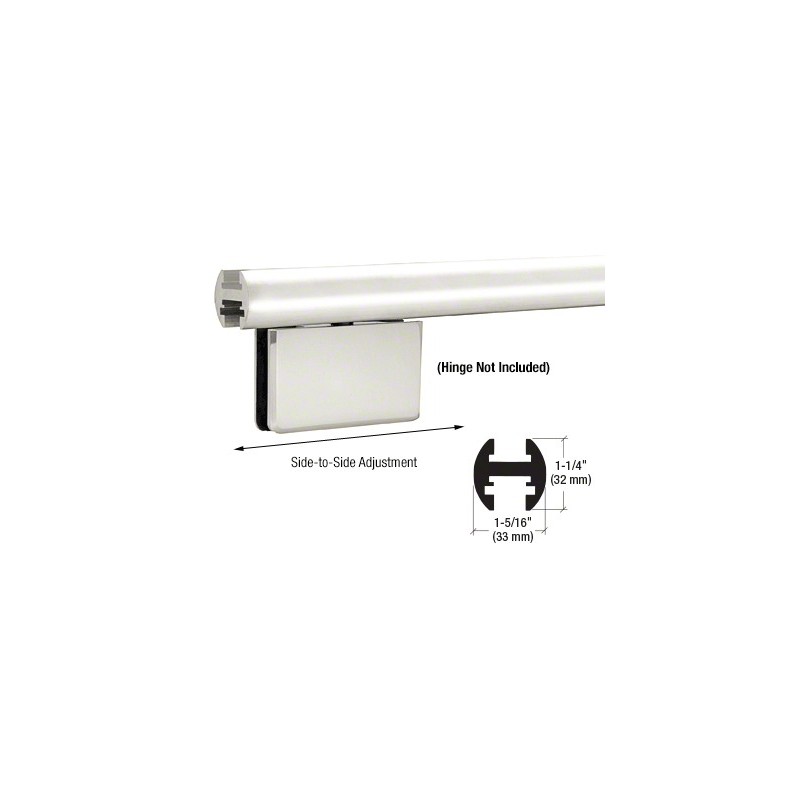

The EZ-Adjust System allows adjustability after installation in that the hinge (Cat. Nos. PPH06 and SRPPH06 only) can be moved left and right as desired. No drilling through the Header is required for an Adaptor Block if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06, due to a built-in adaptation to the hinges.
Constructed of heavy 6063-T5 aluminum alloy, the EZ-Adjust Header Kit is stocked in several popular finishes. A choice of 98" and 144" (2.49 and 3.66 m) stock lengths allow the user to cut as desired. A Snap-In Filler Insert for the door pocket, along with Wall Mounting Brackets and Clear Glazing Vinyl round out the Kit.
NOTE: Glazing Vinyl Required When Using 5/16" (8 mm) and 3/8" (10 mm) Glass in EZ-Adjust Header System. No vinyl required for 1/2" (12 mm) Glass.
Constructed of heavy 6063-T5 aluminum alloy, the EZ-Adjust Header Kit is stocked in several popular finishes. A choice of 98" and 144" (2.49 and 3.66 m) stock lengths allow the user to cut as desired. A Snap-In Filler Insert for the door pocket, along with Wall Mounting Brackets and Clear Glazing Vinyl round out the Kit.
NOTE: Glazing Vinyl Required When Using 5/16" (8 mm) and 3/8" (10 mm) Glass in EZ-Adjust Header System. No vinyl required for 1/2" (12 mm) Glass.
