All of our CRL Slender Profile Door Rails can be fabricated with or without locks to meet your required length. Custom finishes are available on special order.
For 1/2" (12 mm) Glass
Use Monolithic Tempered Glass
Custom Length and Finish Made to Order
Available in Three Heights with or without a Lock
Dry Glaze Slender Profile Door Rails Are Only 1" (25 mm) Wide
Brushed or Polished Stainless Steel Finishes
Custom 1" (25 mm) Slender Profile Vertical Stiles Available on Special Order
For 1/2" (12 mm) Glass
Use Monolithic Tempered Glass
Custom Length and Finish Made to Order
Available in Three Heights with or without a Lock
Dry Glaze Slender Profile Door Rails Are Only 1" (25 mm) Wide
Brushed or Polished Stainless Steel Finishes
Custom 1" (25 mm) Slender Profile Vertical Stiles Available on Special Order
Catalog Number: SP64BS12C
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 115D
CRL63A Architectural Hardware Master, PAGE 129H
AH18 Architectural Hardware Catalog 2018, PAGE 129Z
CRL93A Architectural Hardware, PAGE CH015
Color: Brushed Stainless
Maximum Door Width: 42" (1.07 m)
Maximum Door Weight: 205 Lbs. (93 kg)
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 115D
CRL63A Architectural Hardware Master, PAGE 129H
AH18 Architectural Hardware Catalog 2018, PAGE 129Z
CRL93A Architectural Hardware, PAGE CH015
Color: Brushed Stainless
Maximum Door Width: 42" (1.07 m)
Maximum Door Weight: 205 Lbs. (93 kg)
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR

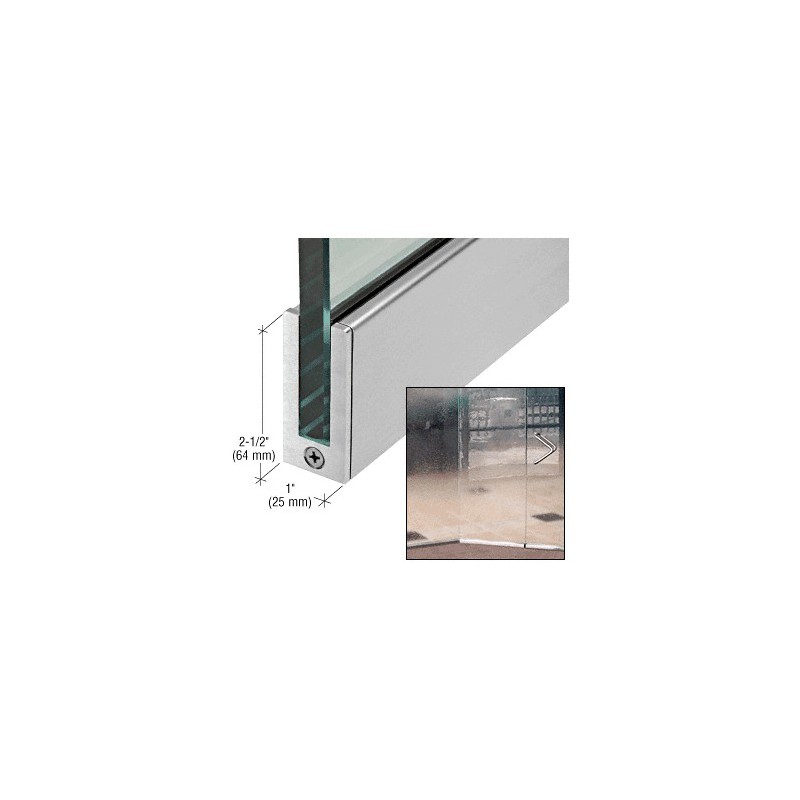

SP64BS12C CRL Brushed Stainless 2-1/2" Tall Slender Profile Door Rail Without Lock - Custom
SP64PS12C CRL Polished Stainless 2-1/2" Tall Slender Profile Door Rail Without Lock - Custom
SP64BS12C CRL Brushed Stainless 2-1/2" Tall Slender Profile Door Rail Without Lock - Custom
SP64PS12C CRL Polished Stainless 2-1/2" Tall Slender Profile Door Rail Without Lock - Custom
NOTE: Not all closer or locking hardware is compatible with these rails. For additional information, contact CRL Technical Sales Department.
