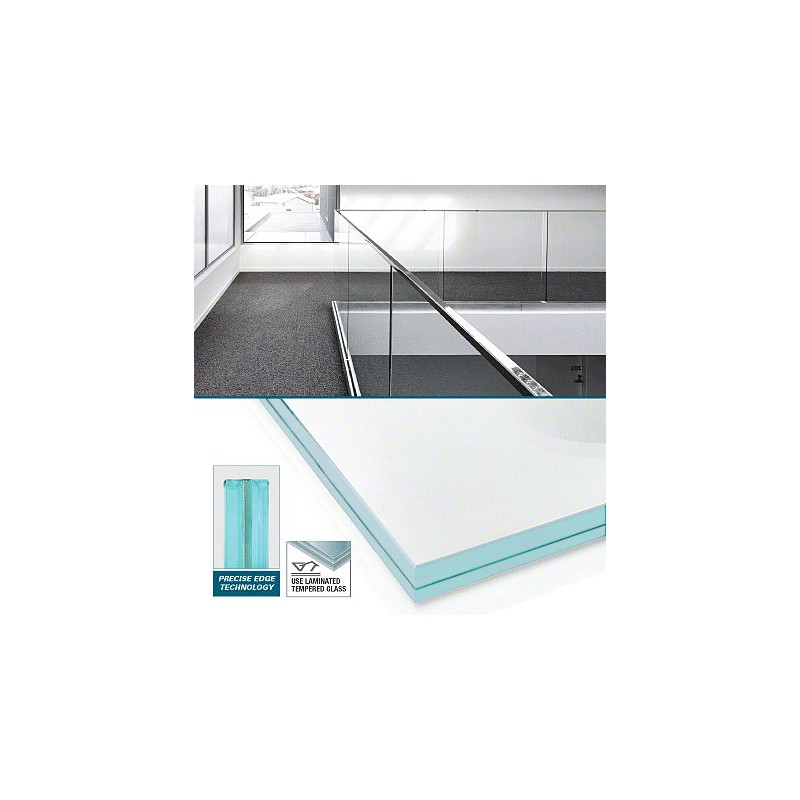

CRL 21.52mm Clear Laminated Low Iron Tempered Custom Size Starphire® Glass Panel - LG21LC
Catalog Number: LG21LC
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 137B
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 137B
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION
LG21LC CRL 21.52mm Clear Laminated Low Iron Tempered Custom Size Starphire Glass Panel
LG21LC CRL 21.52mm Clear Laminated Low Iron Tempered Custom Size Starphire Glass Panel
NOTE: Boxing and crating charges will apply. Contact CRL's Railing Technical Sales today for more information.
11/16" (17.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 5/16" (8 mm) x .060" (1.52 mm) Ionoplast x 5/16" (8 mm)
Thickness Range: 0.666" (16.92 mm) to 0.713" (18.12 mm)
Weight Per Square Foot (Pounds): 8.83
9/16" (13.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/4" (6 mm) x .060" (1.52 mm) Ionoplast x 1/4" (6 mm)
Thickness Range: 0.497" (12.62 mm) to 0.549" (13.94 mm)
Weight Per Square Foot (Pounds): 6.83
27/32" (21.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 3/8" (10 mm) x .060" (1.52 mm) Ionoplast x 3/8" (10 mm)
Thickness Range: 0.803" (20.40 mm) to 0.903" (22.94 mm)
Weight Per Square Foot (Pounds): 10.09
1-1/16" (25.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/2" (12 mm) x .060" (1.52 mm) Ionoplast x 1/2" (12 mm)
Thickness Range: 0.960" (24.90 mm) to 1.060" (26.92 mm)
Weight Per Square Foot (Pounds): 13.35
11/16" (17.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 5/16" (8 mm) x .060" (1.52 mm) Ionoplast x 5/16" (8 mm)
Thickness Range: 0.666" (16.92 mm) to 0.713" (18.12 mm)
Weight Per Square Foot (Pounds): 8.83
9/16" (13.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/4" (6 mm) x .060" (1.52 mm) Ionoplast x 1/4" (6 mm)
Thickness Range: 0.497" (12.62 mm) to 0.549" (13.94 mm)
Weight Per Square Foot (Pounds): 6.83
27/32" (21.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 3/8" (10 mm) x .060" (1.52 mm) Ionoplast x 3/8" (10 mm)
Thickness Range: 0.803" (20.40 mm) to 0.903" (22.94 mm)
Weight Per Square Foot (Pounds): 10.09
1-1/16" (25.52 mm) THICK LAMINATED TEMPERED GLASS
Glass Makeup: 1/2" (12 mm) x .060" (1.52 mm) Ionoplast x 1/2" (12 mm)
Thickness Range: 0.960" (24.90 mm) to 1.060" (26.92 mm)
Weight Per Square Foot (Pounds): 13.35
Starphire is a registered trademark of PPG Industries Ohio, Inc.
