CRL Custom Brushed Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors - W34BSSC

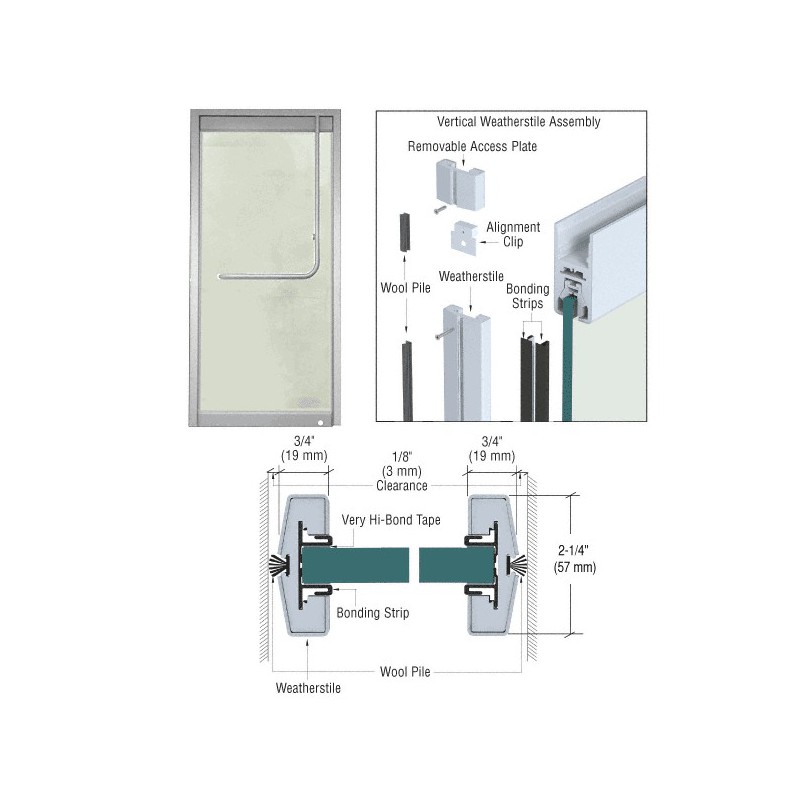

CRL Vertical Weatherstile Kits include two lengths of Weatherstile with Wool Pile Weatherstrip, one black EPDM Filler Strip (for double door applications), four lengths of Bonding Strips with Very Hi-Bond Tape, four 1-1/2" (38 mm) tall Weatherstripped Removable Access Plates with Alignment Clips, and installation instructions.
Custom Length Up To 117"
Kit for 3/4" (19 mm) Glass Doors
Use Monolithic Tempered Glass
Reduces Drafts and Protects the Edge of the Glass
Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
Five Cladded Architectural Finishes
Custom Length Up To 117"
Kit for 3/4" (19 mm) Glass Doors
Use Monolithic Tempered Glass
Reduces Drafts and Protects the Edge of the Glass
Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
Five Cladded Architectural Finishes
Catalog Number: W34BSSC
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 173Z
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 173Z
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
W34BSS CRL Brushed Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34BSSC CRL Custom Brushed Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34DUS CRL Black Bronze Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34DUSC CRL Custom Black Bronze Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PBS CRL Polished Brass Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PBSC CRL Custom Polished Brass Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PSS CRL Polished Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PSSC CRL Custom Polished Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34SAS CRL Satin Anodized Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34SASC CRL Custom Satin Anodized Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34BSS CRL Brushed Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34BSSC CRL Custom Brushed Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34DUS CRL Black Bronze Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34DUSC CRL Custom Black Bronze Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PBS CRL Polished Brass Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PBSC CRL Custom Polished Brass Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PSS CRL Polished Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34PSSC CRL Custom Polished Stainless Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34SAS CRL Satin Anodized Vertical Weatherstile Kits for 3/4" Glass Single Doors
W34SASC CRL Custom Satin Anodized Vertical Weatherstile Kits for 3/4" Glass Single Doors
CRL Vertical Weatherstile Kits have been redesigned for use with newly fabricated single or double doors with either 1/2" (12 mm) or 3/4" (19 mm) tempered glass.
These narrow stiles not only reduce drafts, but they also protect the edge of the glass with minimal disruption of the 'all-glass' look. Five architectural finishes are available to match the adjacent metal finish of most any commercial door.
Installation is accomplished with internal Bonding Strips that attach to the glass with Very Hi-Bond Tape for a secure and accurate fit every time. This replaces the traditional glue-on weatherstile that would need time for adhesive to set prior to installation.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre-installed door rails.
These narrow stiles not only reduce drafts, but they also protect the edge of the glass with minimal disruption of the 'all-glass' look. Five architectural finishes are available to match the adjacent metal finish of most any commercial door.
Installation is accomplished with internal Bonding Strips that attach to the glass with Very Hi-Bond Tape for a secure and accurate fit every time. This replaces the traditional glue-on weatherstile that would need time for adhesive to set prior to installation.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre-installed door rails.
