CRL Satin Brass 4" Custom Length Square Sidelite Rail for 3/4" Glass - SR4SSB34CL

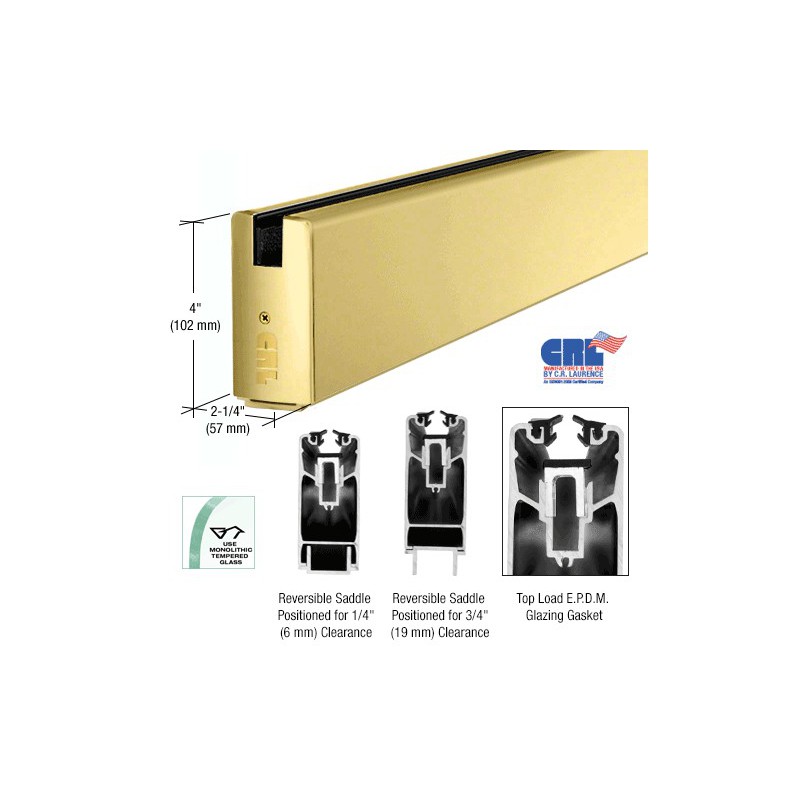

The CRL 4" (102 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant. Also available in this size are our 4" (102 mm) Tapered Sidelite Rails to match our Tapered Door Rails.
Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
Provides Even Sightline With Our Door Rails
Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
Ready-to-Ship Models From CRL Inventory
Use Monolithic Tempered Glass
Matching Door Rails Available for an Even Sightline
Catalog Number: SR4SSB34CL
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 149Z
Color: Satin Brass
Length: Custom
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
SR4SBL34CL CRL Black Powder Coat 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4SBS34CL CRL Brushed Stainless 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4S0RB34CL CRL Oil Rubbed Bronze Anodized 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4SDU34CL CRL Black Bronze Anodized 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4SPB34CL CRL Polished Brass 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4SPS34CL CRL Polished Stainless 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4SSA34CL CRL Satin Anodized 4" Custom Length Square Sidelite Rail for 3/4" Glass
SR4SSB34CL CRL Satin Brass 4" Custom Length Square Sidelite Rail for 3/4" Glass
Available in several finishes in 120" (3.05 mm) lengths and two finishes in extra long 240" (6.10 mm) lengths, they match heights to both floor mounted and 1/2" (12 mm) threshold doors using our Reversible Saddle. Use the Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks, lifting the glass into the upper rail and lowering into the bottom rail. This will give you a 9/16" (14.3 mm) glass retention in both the top and bottom channels. Complete the job by installing the Roll-In EPDM Gaskets and matching finish End Caps.
ORDERING INFORMATION:
Sidelite Rails on this page come with vinyl to glaze 3/4" (19 mm) glass. If using 5/8" (16 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
Custom lengths and finishes are available.
SREC4S Series End Caps (for 3/4" Glass) and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
