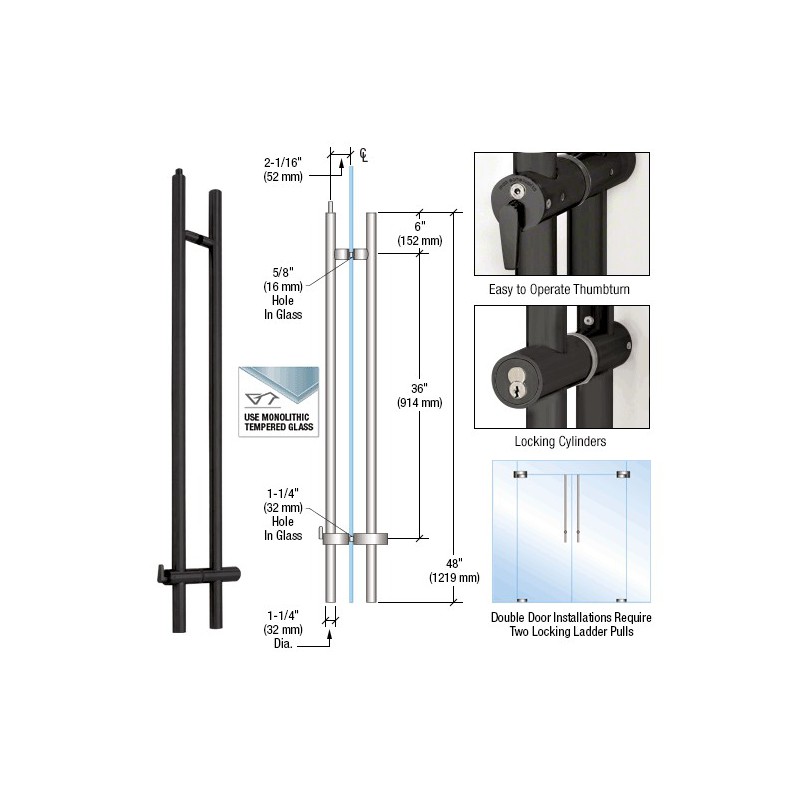

CRL Matte Black 48" Upwards Locking Ladder Pull - LLPUA48MBL
Our CRL LLPUA Series Upward Locking Ladder Pulls have a fully concealed deadbolt locking mechanism that locks into the ceiling, not into the floor. No need to bend or reach to lock or unlock the door, simply turn a key or thumbturn located at a comfortable height above the finished floor. Intended for use with 1/2" to 3/4" (12 to 19 mm) thick tempered glass doors, they are available in brushed and polished stainless steel.
Locks Into the Ceiling Only
A.D.A. Compatible Thumbturn
Adaptor Kits Available for Use on 1-3/4" (45 mm) Thick Doors - LLPA134ADT
Lock Operates at a Comfortable 42" (1.07 m) Above the Floor
1-1/4" (32 mm) Diameter Alloy Available in 316 Brushed or Polished Stainless Steel Tubing
A.D.A. Compliant Models Available - Ask for a Quote Here
Locks Into the Ceiling Only
A.D.A. Compatible Thumbturn
Adaptor Kits Available for Use on 1-3/4" (45 mm) Thick Doors - LLPA134ADT
Lock Operates at a Comfortable 42" (1.07 m) Above the Floor
1-1/4" (32 mm) Diameter Alloy Available in 316 Brushed or Polished Stainless Steel Tubing
A.D.A. Compliant Models Available - Ask for a Quote Here
Catalog Number: LLPUA48MBL
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 281Z
Color: Matte Black
Length: 48" (1.22 m)
Ship Via: UPS Oversize Rate
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 281Z
Color: Matte Black
Length: 48" (1.22 m)
Ship Via: UPS Oversize Rate
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
LLPUA48BS CRL Brushed Stainless 48" Upwards Locking Ladder Pull
LLPUA48MBL CRL Matte Black 48" Upwards Locking Ladder Pull
LLPUA48PS CRL Polished Stainless 48" Upwards Locking Ladder Pull
LLPUA48BS CRL Brushed Stainless 48" Upwards Locking Ladder Pull
LLPUA48MBL CRL Matte Black 48" Upwards Locking Ladder Pull
LLPUA48PS CRL Polished Stainless 48" Upwards Locking Ladder Pull
This Upward Locking Ladder Pull is supplied with our standard 7-pin Rim Cylinder with Interchangeable Core, that can be used as the final cylinder or as a temporary, and is easily replaced. If staying with the 7-pin format, just remove the core, have it re-keyed, or replace it with a new one. A selection of 7-pin Cores are available. If proprietary 6-pin Cylinders are required, simply remove the entire Rim Cylinder provided and replace with the proper Rim Cylinder of your choice. The Pull will accept most standard manufactured Rim Type Cylinders.
NOTE: Glass fabrication is required. Push/Pull Indicators in complementary finishes and Dustproof Keepers are sold separately.
NOTE: Glass fabrication is required. Push/Pull Indicators in complementary finishes and Dustproof Keepers are sold separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
