CRL Satin Brass OX/XO SSR 4" Square Sliding Door System - 4SSR2CSB

Finish: SATIN BRASS
The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4S Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
Available in Seven Architectural Finishes
Catalog Number: 4SSR2CSB
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 29G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 29P1
CRL63A Architectural Hardware Master, PAGE 335H
CRL14D Door and Entrance Catalog, PAGE 393D
Color: Satin Brass
Door Configuration: XO or OX
Panels : O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
4SSR2CBL CRL Black Powder Coat OX/XO SSR 4" Square Sliding Door System
4SSR2CBS CRL Brushed Stainless Steel OX/XO SSR 4" Square Sliding Door System
4SSR2CDU CRL Dark Bronze Anodized OX/XO SSR 4" Square Sliding Door System
4SSR2CPB CRL Polished Brass OX/XO SSR 4" Square Sliding Door System
4SSR2CPS CRL Polished Stainless Steel OX/XO SSR 4" Square Sliding Door System
4SSR2CSA CRL Satin Anodized OX/XO SSR 4" Square Sliding Door System
4SSR2CSB CRL Satin Brass OX/XO SSR 4" Square Sliding Door System

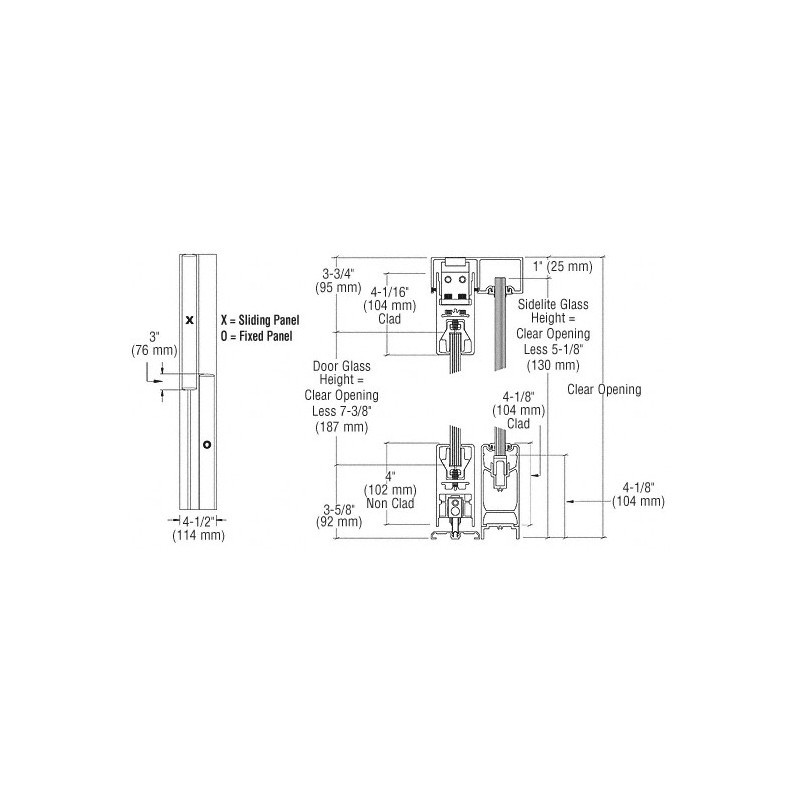

The fixed panels utilize our popular SR4S Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
