CRL Dark Bronze Anodized XOX SSR 4" Square Sliding Door System - 4SSR3DDU

Finish: DARK BRONZE
The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4S Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
Available in Seven Architectural Finishes
Catalog Number: 4SSR3DDU
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 29G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 29P1
CRL63A Architectural Hardware Master, PAGE 335H
CRL14D Door and Entrance Catalog, PAGE 393D
Color: Dark Bronze
Door Configuration: XOX
Panels : O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
4SSR3DBL CRL Black Powder Coat XOX SSR 4" Square Sliding Door System
4SSR3DBS CRL Brushed Stainless Steel XOX SSR 4" Square Sliding Door System
4SSR3DDU CRL Dark Bronze Anodized XOX SSR 4" Square Sliding Door System
4SSR3DPB CRL Polished Brass XOX SSR 4" Square Sliding Door System
4SSR3DPS CRL Polished Stainless Steel XOX SSR 4" Square Sliding Door System
4SSR3DSA CRL Satin Anodized XOX SSR 4" Square Sliding Door System
4SSR3DSB CRL Satin Brass XOX SSR 4" Square Sliding Door System

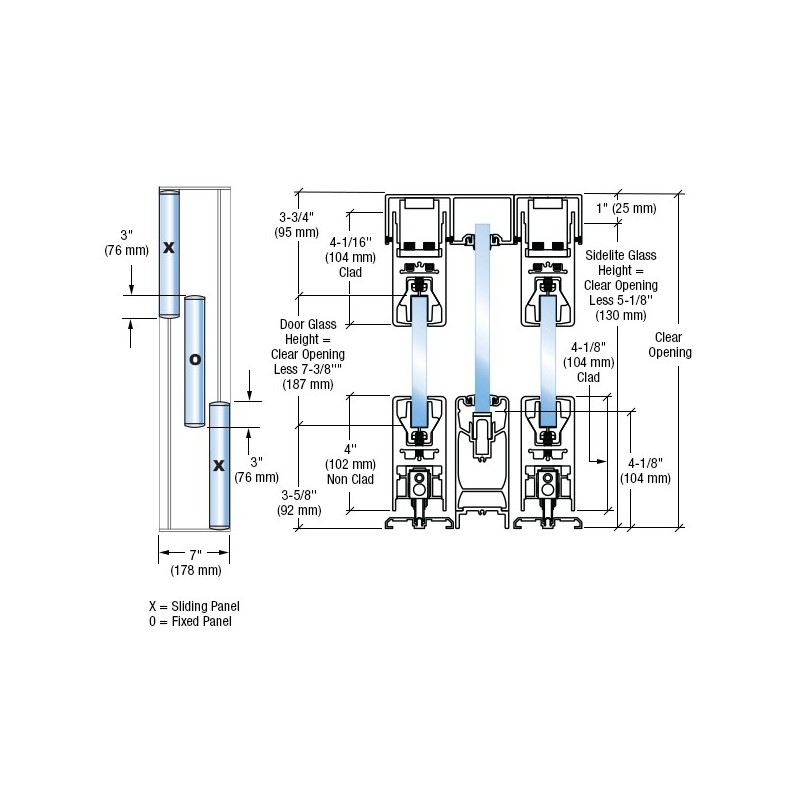

The fixed panels utilize our popular SR4S Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.
