CRL Satin Anodized 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass - SR10SSA34CL

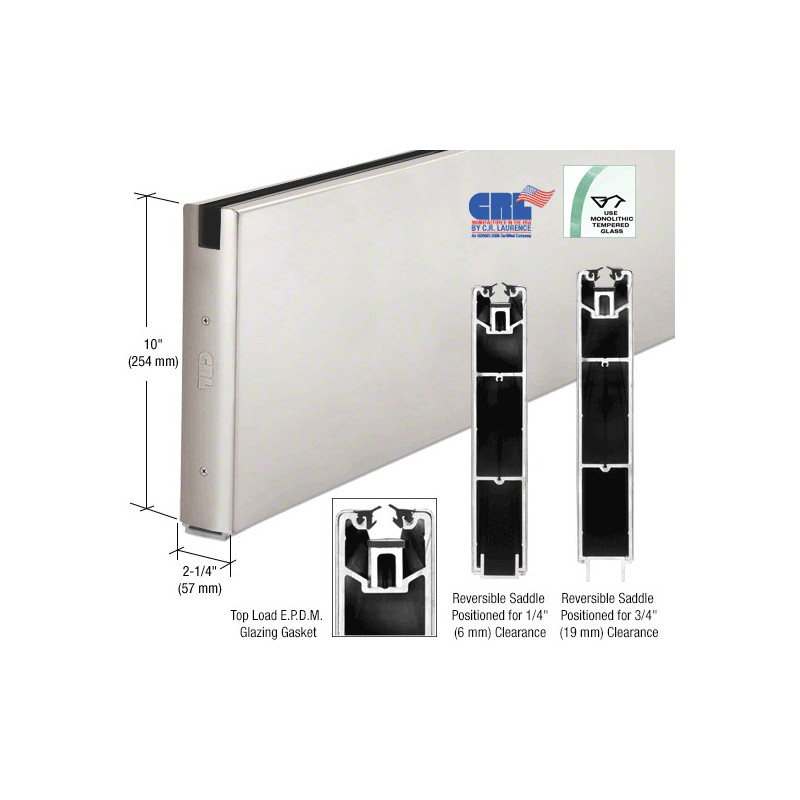

The CRL 10" (254 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
Provides Even Sightline With Our Door Rails
Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
Ready-to-Ship Models From CRL Inventory
Use Monolithic Tempered Glass
Matching Door Rails Available for an Even Sightline
Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
Provides Even Sightline With Our Door Rails
Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
Ready-to-Ship Models From CRL Inventory
Use Monolithic Tempered Glass
Matching Door Rails Available for an Even Sightline
Catalog Number: SR10SSA34CL
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 151H
AH18 Architectural Hardware Catalog 2018, PAGE 151Z
CRL93A Architectural Hardware, PAGE CH039
Color: Satin Anodized
Length: Custom
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 151H
AH18 Architectural Hardware Catalog 2018, PAGE 151Z
CRL93A Architectural Hardware, PAGE CH039
Color: Satin Anodized
Length: Custom
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
SR10S0RB34CL CRL Oil Rubbed Bronze 10" Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SBL34CL CRL Black Powder Coat 10" Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SBS34CL CRL Brushed Stainless 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SDU34CL CRL Black Bronze Anodized 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SPB34CL CRL Polished Brass 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SPS34CL CRL Polished Stainless 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SSA34CL CRL Satin Anodized 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SSB34CL CRL Satin Brass 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10S0RB34CL CRL Oil Rubbed Bronze 10" Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SBL34CL CRL Black Powder Coat 10" Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SBS34CL CRL Brushed Stainless 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SDU34CL CRL Black Bronze Anodized 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SPB34CL CRL Polished Brass 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SPS34CL CRL Polished Stainless 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SSA34CL CRL Satin Anodized 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
SR10SSB34CL CRL Satin Brass 10" x Custom Length Square Sidelite Rail for 5/8" or 3/4" Glass
ORDERING INFORMATION:
Sidelite Rails on this page come with vinyl to glaze 3/4" (19 mm) glass. If using 5/8" (16 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
Custom lengths and finishes are available.
SREC10S Series End Caps (for 3/4" Glass) and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Sidelite Rails on this page come with vinyl to glaze 3/4" (19 mm) glass. If using 5/8" (16 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
Custom lengths and finishes are available.
SREC10S Series End Caps (for 3/4" Glass) and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
