CRL Black Powder Coat 240" x 6" Square Sidelite Rail - SR6SBL3812240

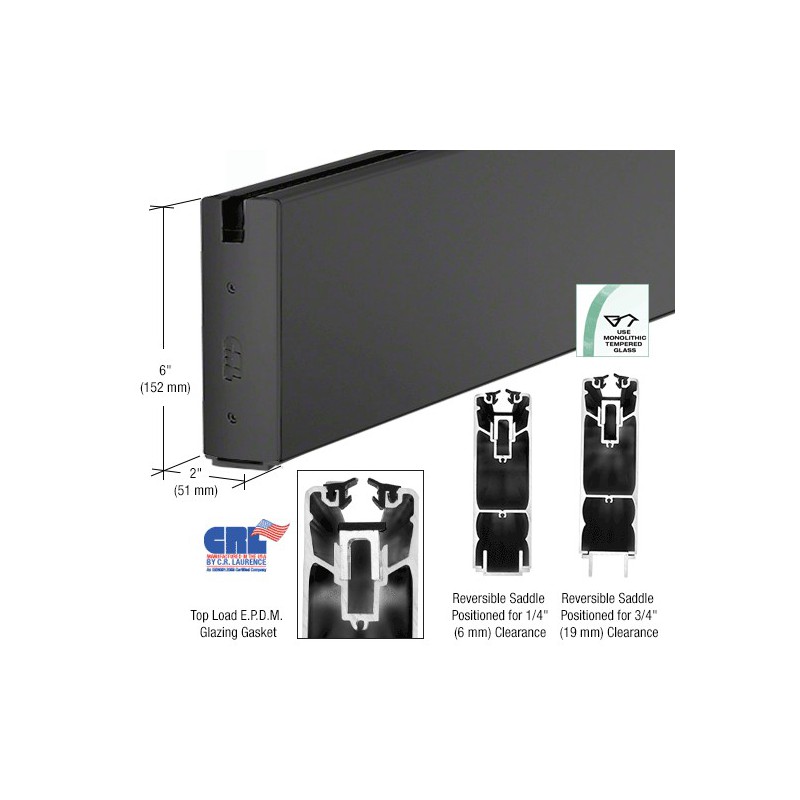

The CRL 6" (152 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
Provides Even Sightline With Our Door Rails
Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
Ready-to-Ship Models From CRL Inventory
Use Monolithic Tempered Glass
Matching Door Rails Available for an Even Sightline
Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
Provides Even Sightline With Our Door Rails
Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
Ready-to-Ship Models From CRL Inventory
Use Monolithic Tempered Glass
Matching Door Rails Available for an Even Sightline
Catalog Number: SR6SBL3812240
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 146Z
Color: Black
Length: 240" (6.10 m)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 60 lb (27.22kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 146Z
Color: Black
Length: 240" (6.10 m)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 60 lb (27.22kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
SR6SDU3812240 CRL Black Bronze Anodized 240" x 6" Square Sidelite Rail
SR6SSA3812240 CRL Satin Anodized 240" x 6" Square Sidelite Rail
SR6SBL3812240 CRL Black Powder Coat 240" x 6" Square Sidelite Rail
SR6SDU3812240 CRL Black Bronze Anodized 240" x 6" Square Sidelite Rail
SR6SSA3812240 CRL Satin Anodized 240" x 6" Square Sidelite Rail
SR6SBL3812240 CRL Black Powder Coat 240" x 6" Square Sidelite Rail
Roll-In Glazing Gasket for 1/2" (12 mm) glass is included. Both 3/8" (10 mm) Roll-In Glazing Gasket and End Caps are sold separately.
ORDERING INFORMATION:
Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.1 m) lengths.
Custom lengths and finishes are also available.
SREC6S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.
ORDERING INFORMATION:
Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.1 m) lengths.
Custom lengths and finishes are also available.
SREC6S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
