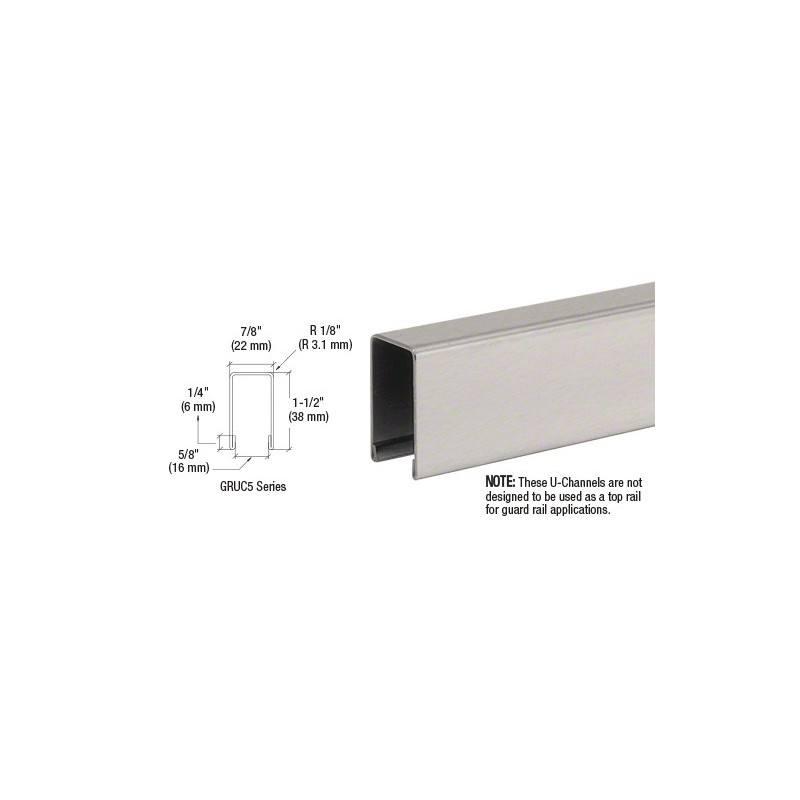

CRL Brushed Stainless U-Channel Cap for 1/2" or 5/8" Glass Custom Length - GRUC5BSC
CRL U-Channel Cap protects the edge of the glass and secures glass panels together. Standard Stainless Alloy is 304 and material thickness is 18 gauge. Alloy 316 is available on special order.
For 1/2" or 5/8" (12 or 16 mm) Glass
Protects Glass Edge
Secures Glass Panels Together
Available in Two Architectural Finishes
Use Monolithic Tempered Glass
For 1/2" or 5/8" (12 or 16 mm) Glass
Protects Glass Edge
Secures Glass Panels Together
Available in Two Architectural Finishes
Use Monolithic Tempered Glass
Catalog Number: GRUC5BSC
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 244B
Color: Brushed Stainless
Grade: 304
"W" Width: 5/8" (16 mm)
"H" Height
Length
Use with: 1-1/2" (38 mm)
Custom
1/2" (12 mm) or 5/8" (16 mm) Glass
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 5 lb (2.27kg)
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 244B
Color: Brushed Stainless
Grade: 304
"W" Width: 5/8" (16 mm)
"H" Height
Length
Use with: 1-1/2" (38 mm)
Custom
1/2" (12 mm) or 5/8" (16 mm) Glass
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 5 lb (2.27kg)
CATALOG NUMBER DESCRIPTION COLOR
GRUC5BS10 CRL Brushed Stainless U-Channel Cap for 1/2" or 5/8" Glass
GRUC5BSC CRL Brushed Stainless U-Channel Cap for 1/2" or 5/8" Glass Custom Length
GRUC5PS10 CRL Polished Stainless U-Channel Cap for 1/2" or 5/8" Glass
GRUC5PSC CRL Polished Stainless U-Channel Cap for 1/2" or 5/8" Glass Custom Length
GRUC5BS10 CRL Brushed Stainless U-Channel Cap for 1/2" or 5/8" Glass
GRUC5BSC CRL Brushed Stainless U-Channel Cap for 1/2" or 5/8" Glass Custom Length
GRUC5PS10 CRL Polished Stainless U-Channel Cap for 1/2" or 5/8" Glass
GRUC5PSC CRL Polished Stainless U-Channel Cap for 1/2" or 5/8" Glass Custom Length
NOTE: These U-Channels are not designed to be used as a top rail for guard rail applications.
NOTE: When used with 1/2" (12 mm) glass, the proper Cap Rail Vinyl and Cat. No. 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone and Shims only.
Please contact CRL Technical Sales Department for additional information or a quote.
SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: .050 (1.59 mm)
Stock Length: 10'-0" (3.05 m)
Typical Uses: Protect Edges of Glass and Secure Glass Panels Together in Cap Railing Installations
NOTE: When used with 1/2" (12 mm) glass, the proper Cap Rail Vinyl and Cat. No. 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone and Shims only.
Please contact CRL Technical Sales Department for additional information or a quote.
SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: .050 (1.59 mm)
Stock Length: 10'-0" (3.05 m)
Typical Uses: Protect Edges of Glass and Secure Glass Panels Together in Cap Railing Installations
