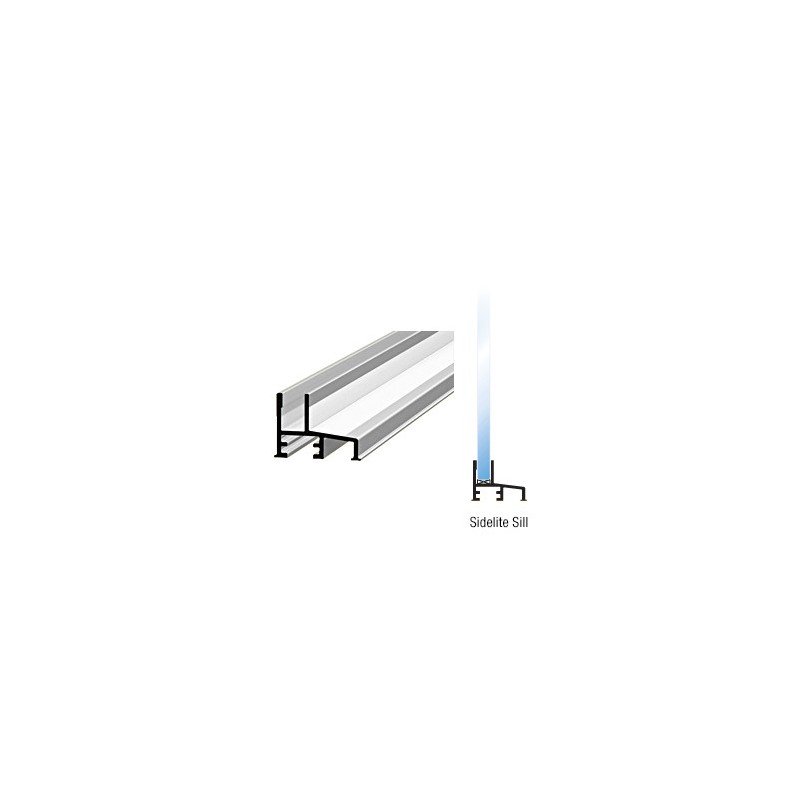

CRL Brite Anodized 72" Sidelite Sill for CK/DK Cottage Series Sliders - DK64BA
CRL Sidelite Sill for CK/DK Cottage Series Sliders components add versatility to our Frameless Sliding Shower Door Kits, and allows you the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Bottom Sills, Sidelite Sills, Side Jambs, Top Hangers and other accessory items complete the selection.
Sidelite Sill Used in Cottage Series Applications Where Fixed Panel is Same Height as Doors
Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze Finishes to Match Our Kits
Do It Yourself, or You Can Send Us a Drawing to Customize a Unit for You
Use Monolithic Tempered Glass
Sidelite Sill Used in Cottage Series Applications Where Fixed Panel is Same Height as Doors
Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze Finishes to Match Our Kits
Do It Yourself, or You Can Send Us a Drawing to Customize a Unit for You
Use Monolithic Tempered Glass
Catalog Number: DK64BA
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 223S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 343J
FS14 Frameless Shower Door Systems, PAGE FS11
CRL93A Shower Door, PAGE SD143
Color: Brite Anodized
Length: 72" (1.83 m)
Ship Via: UPS Oversize Rate
Shipping Weight: 4 lb (1.81kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 223S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 343J
FS14 Frameless Shower Door Systems, PAGE FS11
CRL93A Shower Door, PAGE SD143
Color: Brite Anodized
Length: 72" (1.83 m)
Ship Via: UPS Oversize Rate
Shipping Weight: 4 lb (1.81kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
DK64BA CRL Brite Anodized 72" Sidelite Sill for CK/DK Cottage Series Sliders
DK64BN CRL Brushed Nickel 72" Sidelite Sill for CK/DK Cottage Series Sliders
DK64BA CRL Brite Anodized 72" Sidelite Sill for CK/DK Cottage Series Sliders
DK64BN CRL Brushed Nickel 72" Sidelite Sill for CK/DK Cottage Series Sliders
Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.
NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.
SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass Not Included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob One 1/2" (12 mm) Diameter Hole; Top Hangers Four 1/2" (12 mm) Diameter Holes (Two Per Glass Panel)
NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.
SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass Not Included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob One 1/2" (12 mm) Diameter Hole; Top Hangers Four 1/2" (12 mm) Diameter Holes (Two Per Glass Panel)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
