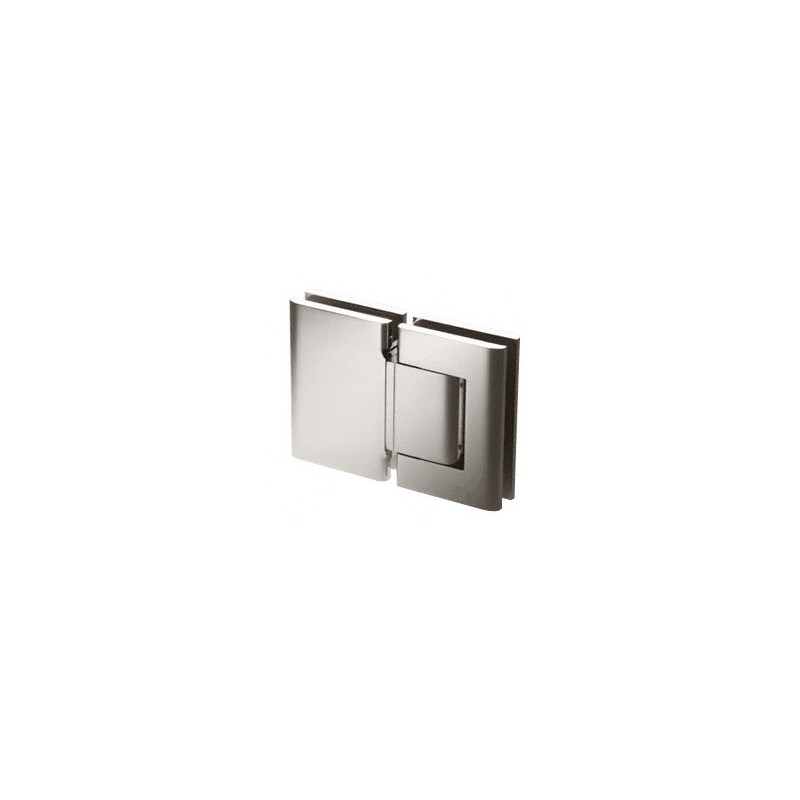

CRL Brushed Satin Nickel Vernon 180º Glass-to-Glass Hinge - 31M8215SN

Finish: BRUSHED SATIN NICKEL
$530.00
Quantity

This CRL 180º Glass-to-Glass Hinge swings in and out a full 90º, with stop at 0º. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (80 kg).
For Self-Closing Glass Doors from 3/8" to 1/2" (10 to 12 mm) Thick
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Hold Open or No Hold Open Models
Adjustable Closing Speed
A Great Alternative to Floor Closers and Patch Fittings
Catalog Number: 31M8215SN
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 155D
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 177J
CRL63A Architectural Hardware Master, PAGE 356H
CRL93A Architectural Hardware, PAGE CH144
Closing Type: No Hold Open
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
31M8215SN CRL Brushed Satin Nickel Vernon 180 Glass-to-Glass Hinge
The Vernon Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors) leading into the bathroom area, Vernon allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Vernon Hinges will support a 3/8" to 1/2" (10 to 12 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. The Vernon Hinge has an internal stop on the valve adjustment screw stopping you from going too far, so you can open completely (4-5 turns) until you reach the speed required. The Vernon works properly between 5 to 104 degrees without problems. The viscosity of the oil could change, hence you may need to adjust the speed to compensate. And Vernon is ambidextrous, giving you even more design freedom.
The Vernon Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Vernon has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Construction: Aluminum
Hinge Swings: 90 Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing from 0 to 80
Cut-Out Required
Includes: Snap-In Molded Gaskets for 3/8" (10 mm) and 1/2" (12 mm) Glass; Hex Screws Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (80 kg)
