CRL Chrome 84" Hydroslide 180 Degree Sliding Shower Door Kit - HYDK84CH

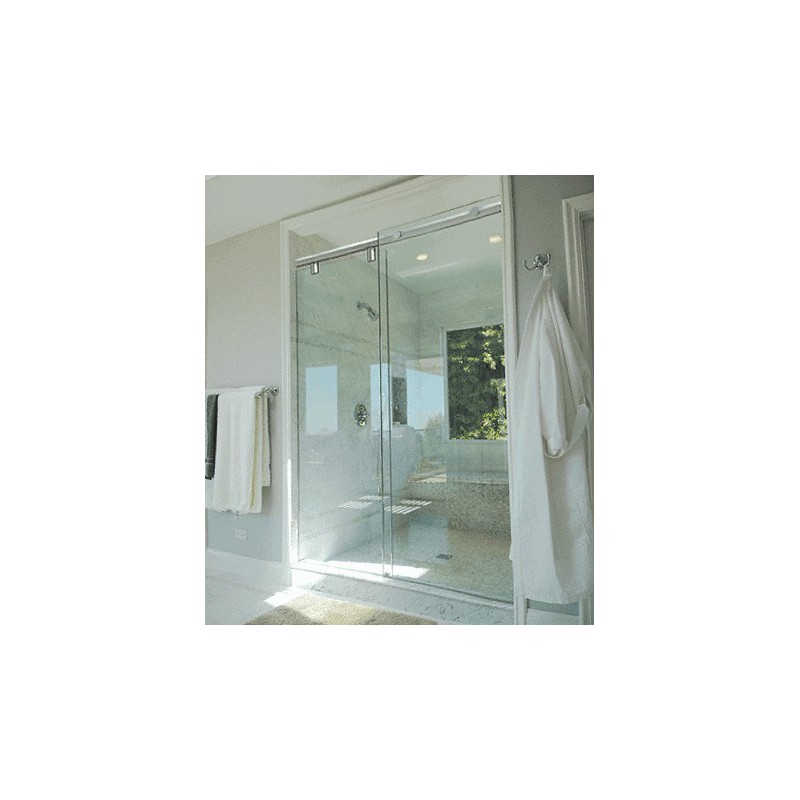

CRL Hydroslide Sliding Shower Door Kits were designed for full standing showers or above bathtubs. The Hydroslide System can accommodate a wide range of shower designs with fixed glass panels on either end, or both sides at 90 or 180 degrees. The Hydroslide System also accommodates the option of floor-to-near-ceiling glass panels with a sliding door.
Clean, Sleek Lines Make it an Excellent Design for Compact Areas
Use Monolithic Tempered Glass
Available in Four Stock Finishes, Custom Finishes Available
Custom Sized Units Available by Special Order
Standard 180 Degree Installation is One Fixed Panel and One Door
Clean, Sleek Lines Make it an Excellent Design for Compact Areas
Use Monolithic Tempered Glass
Available in Four Stock Finishes, Custom Finishes Available
Custom Sized Units Available by Special Order
Standard 180 Degree Installation is One Fixed Panel and One Door
Catalog Number: HYDK84CH
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 218S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 332J
CRL83R Door and Window Replacement, PAGE 368W
FS14 Frameless Shower Door Systems, PAGE FS06
CRL93A Shower Door, PAGE SD134
Color: Chrome
Width: 84" (2.13 m)
Ship Via: UPS Oversize Rate
Shipping Weight: 16 lb (7.26kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 218S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 332J
CRL83R Door and Window Replacement, PAGE 368W
FS14 Frameless Shower Door Systems, PAGE FS06
CRL93A Shower Door, PAGE SD134
Color: Chrome
Width: 84" (2.13 m)
Ship Via: UPS Oversize Rate
Shipping Weight: 16 lb (7.26kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
HYDK840RB CRL Oil Rubbed Bronze 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK84BN CRL Brushed Nickel 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK84BR CRL Brass 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK84CH CRL Chrome 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK840RB CRL Oil Rubbed Bronze 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK84BN CRL Brushed Nickel 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK84BR CRL Brass 84" Hydroslide 180 Degree Sliding Shower Door Kit
HYDK84CH CRL Chrome 84" Hydroslide 180 Degree Sliding Shower Door Kit
Hydroslide Sliding Shower Door Kits feature the latest European 'all-glass' look. Kits are available in either 60" (1.52 m) or 84" (2.13 m) widths. Installers can cut the width to size, and height is optional as long as the sliding door glass weighs less than 88 lbs. (40 kg). The 180 Degree Wall-to-Wall Installation only requires the 180 Degree Standard Kit for the installation.
180 DEGREE STANDARD KIT CONSISTS OF:
1 - Sliding Glass Door Upper Track
2 - Hangers for Sliding Glass Door
2 - Sliding Glass Door Rollers
2 - Sliding Glass Door Roller Stops
1 - Sliding Glass Door Floor Guide
2 - 90 Degree Wall-to-Upper Track Connectors
2 - 180 Degree Glass-to-Sliding Track Connectors
1 - 36" (914 mm) Half-Round SDT980 Threshold
1 - 95" (2.41 m) DK98L L-Seal for wall
NOTE: Bottom Fixed Glass Attachments, Handles or Knobs must be ordered separately.
180 DEGREE STANDARD KIT CONSISTS OF:
1 - Sliding Glass Door Upper Track
2 - Hangers for Sliding Glass Door
2 - Sliding Glass Door Rollers
2 - Sliding Glass Door Roller Stops
1 - Sliding Glass Door Floor Guide
2 - 90 Degree Wall-to-Upper Track Connectors
2 - 180 Degree Glass-to-Sliding Track Connectors
1 - 36" (914 mm) Half-Round SDT980 Threshold
1 - 95" (2.41 m) DK98L L-Seal for wall
NOTE: Bottom Fixed Glass Attachments, Handles or Knobs must be ordered separately.
