CRL Polished Brass Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge - V1E380BR

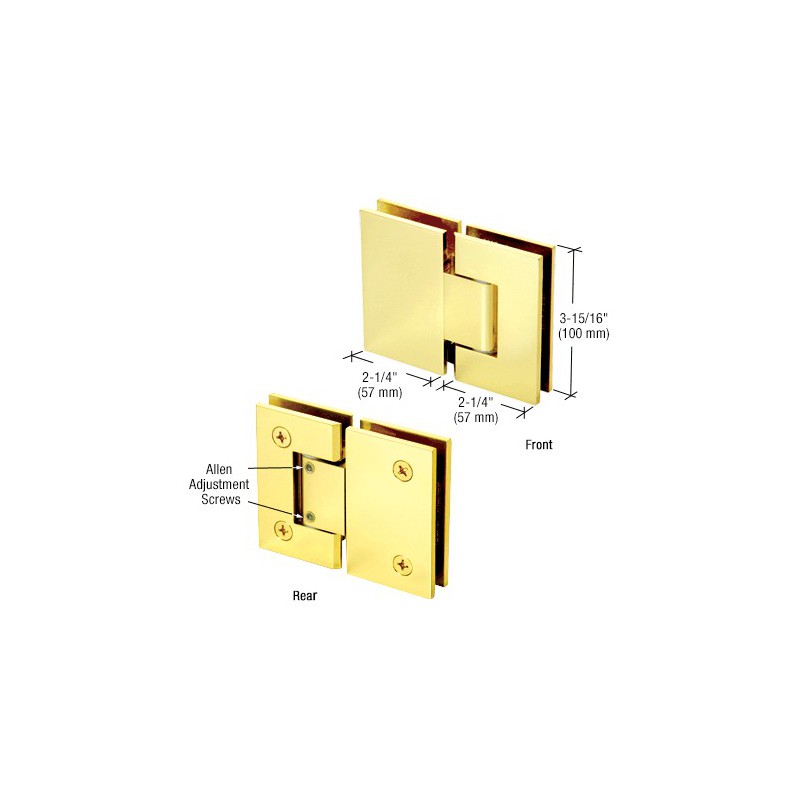

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.
Adjustable to Any Angle Up to 90 Degrees without Removing Door
Available in Several Beautiful Finishes
3 Year Warranty
Adjustable 180 Degree Glass-to-Glass
Use Monolithic Tempered Glass
Adjustable to Any Angle Up to 90 Degrees without Removing Door
Available in Several Beautiful Finishes
3 Year Warranty
Adjustable 180 Degree Glass-to-Glass
Use Monolithic Tempered Glass
Catalog Number: V1E380BR
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 121S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 159J
CRL93A Shower Door, PAGE SD025
Color: Polished Brass
Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 121S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 159J
CRL93A Shower Door, PAGE SD025
Color: Polished Brass
Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
V1E380CH CRL Polished Chrome Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BR CRL Polished Brass Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E3800RB CRL Oil Rubbed Bronze Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380ABN CRL Antique Brushed Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380ABR CRL Antique Brass Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BBRZ CRL Brushed Bronze Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BN CRL Brushed Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BSC CRL Brushed Satin Chrome Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380GP CRL Gold Plated Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380PN CRL Polished Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380SN CRL Satin Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380CH CRL Polished Chrome Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BR CRL Polished Brass Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E3800RB CRL Oil Rubbed Bronze Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380ABN CRL Antique Brushed Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380ABR CRL Antique Brass Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BBRZ CRL Brushed Bronze Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BN CRL Brushed Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380BSC CRL Brushed Satin Chrome Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380GP CRL Gold Plated Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380PN CRL Polished Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
V1E380SN CRL Satin Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
