CRL Unlacquered Brass Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge - C0L337ULBR

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
3 Year Warranty
Adjustable Wall Mount Full Back Plate
Use Monolithic Tempered Glass
Catalog Number: C0L337ULBR
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.

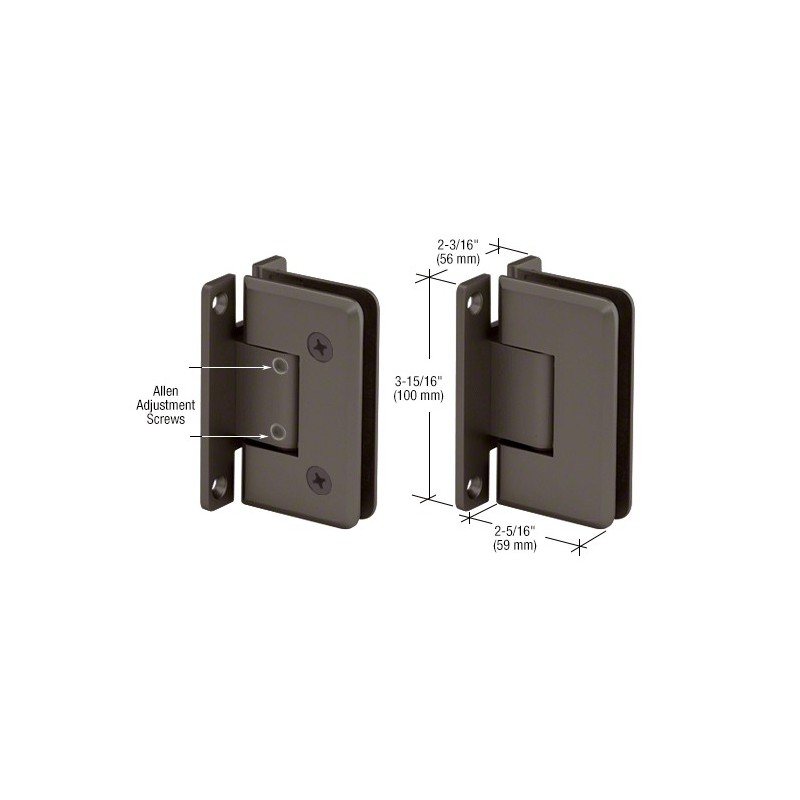

Height: 3-15/16" (100 mm)
Width: 2-5/16" (59 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
C0L337CH CRL Chrome Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337BR CRL Brass Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L3370RB CRL Oil Rubbed Bronze Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337ABN CRL Antique Brushed Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337ABR CRL Antique Brass Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337ABRZ CRL Antique Bronze Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337BBRZ CRL Brushed Bronze Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337BN CRL Brushed Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337BSC CRL Brushed Satin Chrome Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337PN CRL Polished Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337SB CRL Satin Brass Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337SC CRL Satin Chrome Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337SN CRL Satin Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
C0L337ULBR CRL Unlacquered Brass Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out (at factory set position).
Closing Type: Self-Centering when within 15 of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.
Custom finishes are available on request by contacting CRL Technical Sales.
