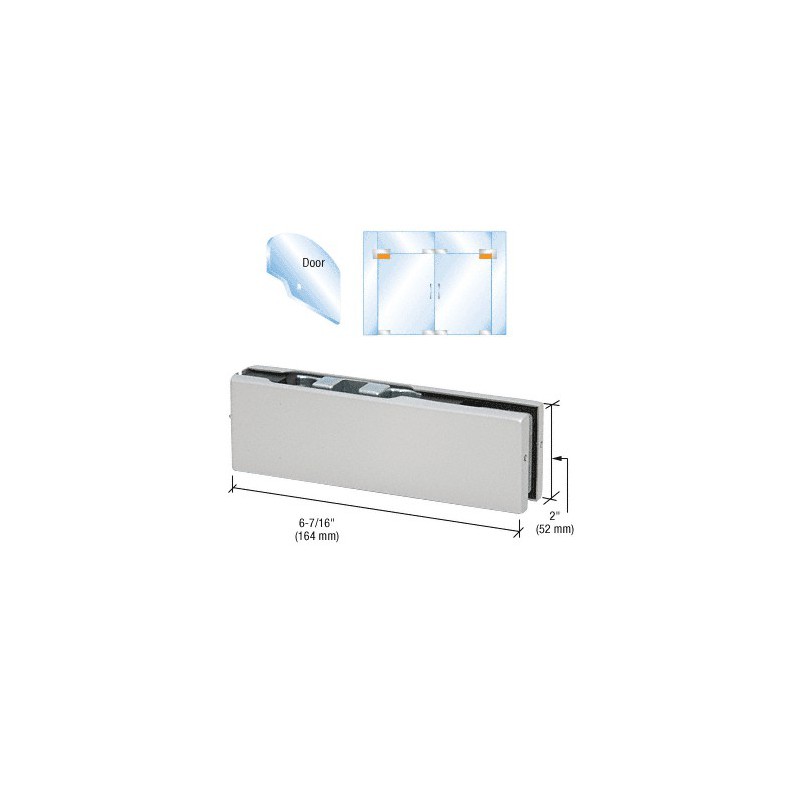

CRL Satin Anodized Adjustable European Top Door Patch Fitting - PH21CA
The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
2-9/16" (65 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
2-9/16" (65 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Catalog Number: PH21CA
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 209Z
CRL63A Architectural Hardware Master, PAGE 372H
CRL93A Architectural Hardware, PAGE CH122
Color: Satin Anodized
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 209Z
CRL63A Architectural Hardware Master, PAGE 372H
CRL93A Architectural Hardware, PAGE CH122
Color: Satin Anodized
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PH21CA CRL Satin Anodized Adjustable European Top Door Patch Fitting
PH21CBR CRL Brass Adjustable European Top Door Patch Fitting
PH21CBS CRL Brushed Stainless Adjustable European Top Door Patch Fitting
PH21CDU CRL Dark Bronze Adjustable European Top Door Patch Fitting
PH21CPS CRL Polished Stainless Adjustable European Top Door Patch Fitting
PH21CSB CRL Satin Brass Adjustable European Top Door Patch Fitting
PH21CA CRL Satin Anodized Adjustable European Top Door Patch Fitting
PH21CBR CRL Brass Adjustable European Top Door Patch Fitting
PH21CBS CRL Brushed Stainless Adjustable European Top Door Patch Fitting
PH21CDU CRL Dark Bronze Adjustable European Top Door Patch Fitting
PH21CPS CRL Polished Stainless Adjustable European Top Door Patch Fitting
PH21CSB CRL Satin Brass Adjustable European Top Door Patch Fitting
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
